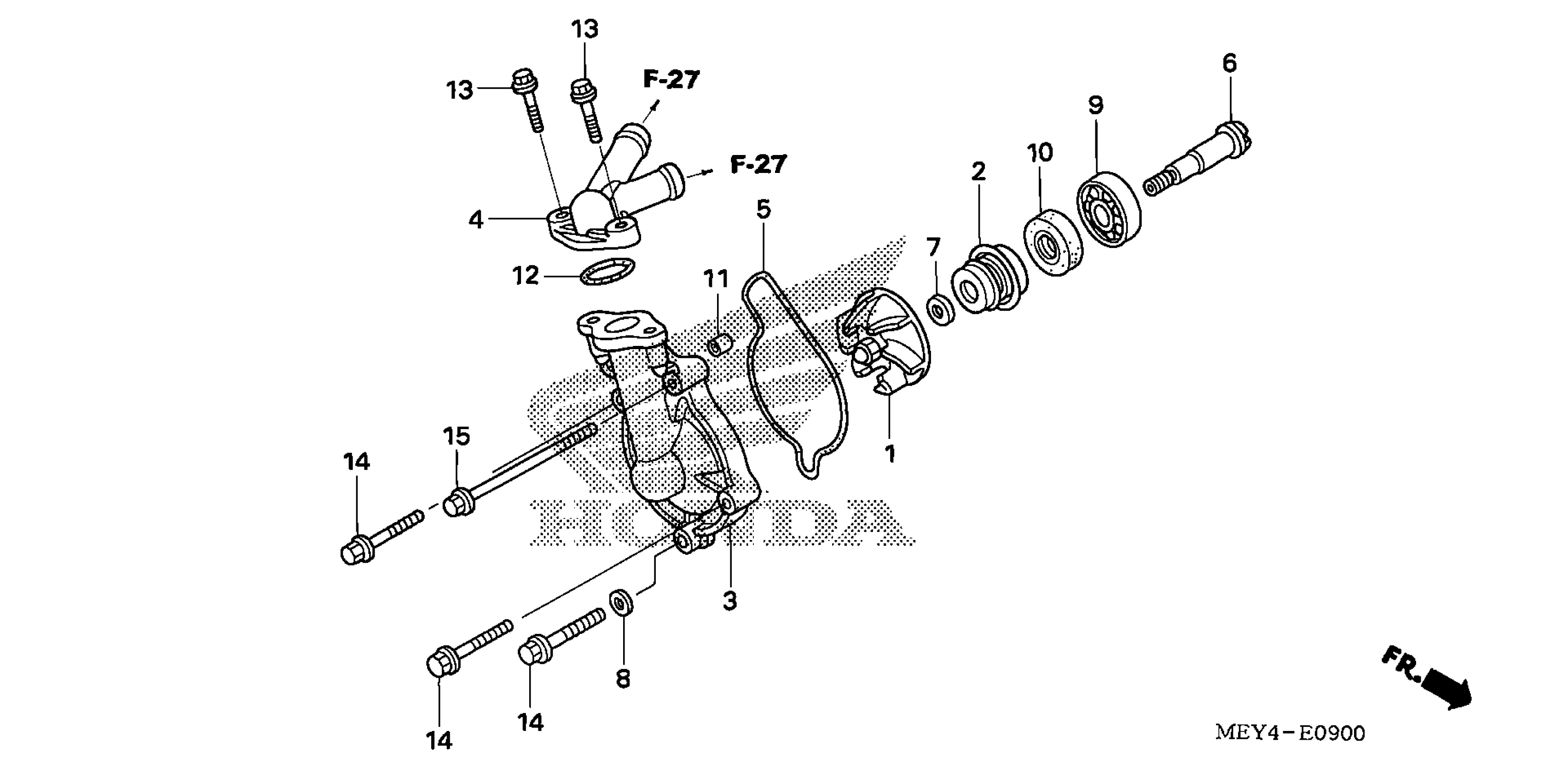

Honda CRF450XA (06) CRF450X, JPN, VIN# JH2PE060-6K100001 TO JH2PE060-6K199999 WATER PUMP Diagram

IMPELLER, WATER PUMP

19215-MEY-670

$48.11

SEAL, MECHANICAL

19217-MAL-300

$53.03

COVER, WATER PUMP

19221-MEY-670

$92.74

JOINT, WATER (THREE-WAY)

19225-MEY-670

$20.69

GASKET, WATER PUMP COVER

19226-MEB-670

$5.07

SHAFT, WATER PUMP

19241-MEY-670

$60.41

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$17.08

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

OIL SEAL (12X22X5)

91201-965-000

$4.06

PIN, DOWEL (8X7)

91320-KE1-000

$2.23

O-RING (21.8X2.4)

91355-759-003

$1.74

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X85)

96001-06085-00

$2.68
