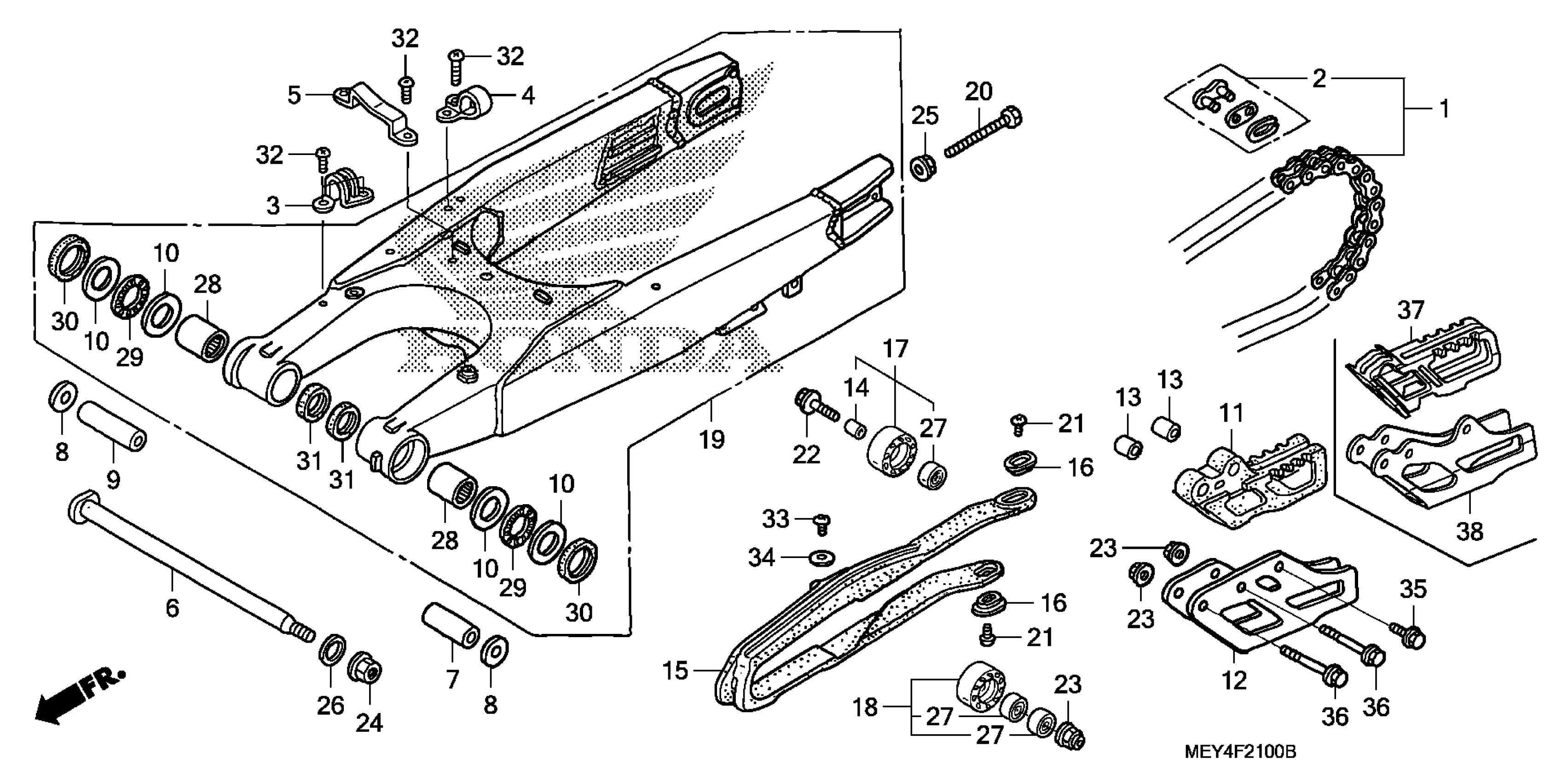

Honda CRF450XA (06) CRF450X, JPN, VIN# JH2PE060-6K100001 TO JH2PE060-6K199999 SWINGARM Diagram

#

Description
Price

1

CHAIN, DRIVE (DID520MXV-120ZB) (DAIDO) (STANDARD LINK 114L)

40540-KSC-003

$173.56

2

MASTER LINK

40545-KSC-003

$9.46

3

GUIDE, BRAKE HOSE

43468-MCJ-000

$8.27

4

GUIDE, RR. BRAKE HOSE

43468-MEB-000

$3.59

5

GUIDE, BRAKE HOSE

43469-MEB-000

$4.33

6

SHAFT, SWINGARM PIVOT

52101-KZ4-J40

$22.97

7

COLLAR, SWINGARM (46MM)

52141-MEN-710

$20.68

8

COLLAR, SWINGARM PIVOT SIDE

52143-KZ4-J40

$3.82

9

COLLAR, SWINGARM SIDE (54MM)

52142-KZ4-J40

$15.18

10

WASHER, SWINGARM SIDE

52143-KZ3-860

$3.00

11

GUIDE, CHAIN

52146-KRN-711

$26.02

12

PLATE, CHAIN GUIDE

52147-KRN-710

Unavailable

13

COLLAR, CHAIN GUIDE

52148-MEN-000

$3.67

14

COLLAR, CHAIN TENSIONER

52160-MEN-000

$2.48

15

SLIDER, CHAIN

52170-MEY-000

$56.35

16

WASHER, CHAIN SLIDER

52171-KR6-000

$2.35

17

ROLLER, CHAIN (42MM)

52175-MEN-000

$32.43

18

ROLLER, CHAIN (LOWER)

52176-MEN-710

$32.38

19

SWINGARM SUB-ASSY., RR.

52200-MEY-000

Unavailable

20

BOLT, HEX. (8X47.5)

90105-MEN-000

$2.78

21

SCREW, PAN (5X8)

90115-KV3-700

$2.38

22

BOLT, FLANGE (8X32)

90124-MEB-770

$1.86

23

NUT, U (6MM)

90301-473-003

$3.79

24

NUT, U HEX. (14MM)

90305-KZ3-B01

$5.42

25

NUT, HEX. (8MM)

90309-357-000

$3.16

26

WASHER (26X14X2.8)

90501-GAH-000

$6.18

26

WASHER (26X14X2.8) This part replaces 90501-GBL-730.

90501-GAH-000

$6.18

27

BEARING, RADIAL BALL (608UU)

91011-GCT-003

$16.81

28

BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003.

91071-MJ0-004

$33.09

29

BEARING, NEEDLE THRUST

91072-KZ3-861

$12.08

30

DUST SEAL (30X37X4)

91253-KZ3-861

$7.79

31

DUST SEAL (22X29X4) (ARAI)

91283-ML7-003

$5.51

32

SCREW, PAN (5X8)

93500-05008-0A

$0.80

33

SCREW, PAN (5X8)

93500-05008-0G

$0.83

34

WASHER, PLAIN (5MM)

94103-05700

$0.86

35

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

36

BOLT, FLANGE (6X50)

96001-06050-00

$1.97
