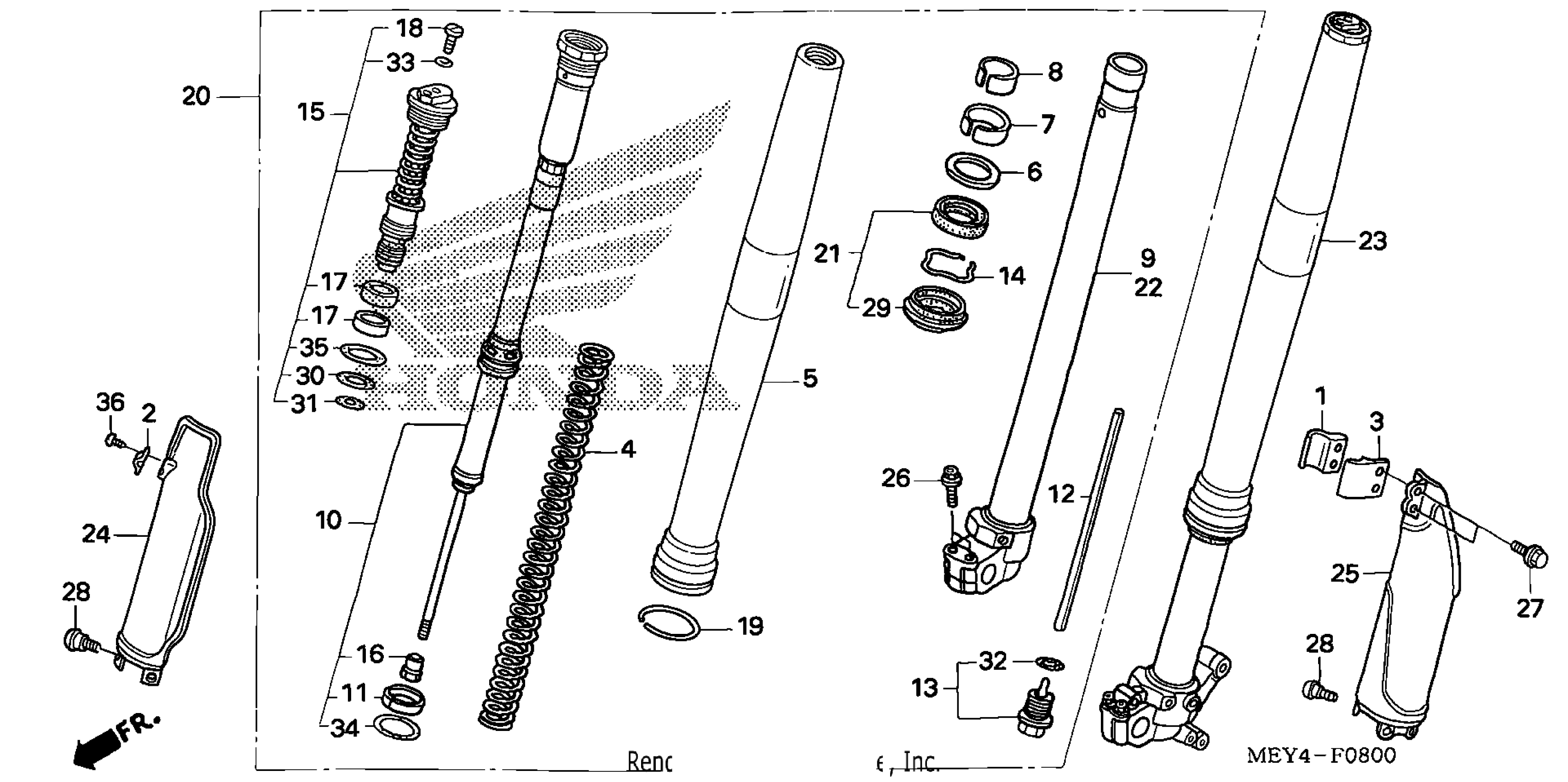

Honda CRF450XA (06) CRF450X, JPN, VIN# JH2PE060-6K100001 TO JH2PE060-6K199999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$6.36

2

GUIDE, SPEEDOMETER CABLE

45461-MEY-670

$10.31

3

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.69

4

SPRING, FR. FORK (4.6N/MM,0.47KGF/MM) (SHOWA)

51401-MEY-003

Unavailable

4

SPRING, FR. FORK (4.4N/MM,0.45KGF/MM) (SHOWA) | (Optional).

51402-MEY-003

Unavailable

4

SPRING, FR. FORK (4.8N/MM,0.49KGF/MM) (SHOWA) | (Optional).

51403-MEY-003

Unavailable

5

TUBE (OUTER) (COO) This part replaces 51410-MEY-003.

51410-MEY-305

$563.85

5

TUBE (OUTER) (COO)

51410-MEY-305

$563.85

6

RING, BACK-UP

51412-KRN-711

$6.56

7

BUSH, GUIDE

51414-KZ3-B01

$16.80

8

BUSH, SLIDER

51415-KZ3-B01

$9.66

9

PIPE, R. SLIDE

51420-MEY-003

Unavailable

10

DAMPER, FR.

51430-MEY-003

Unavailable

11

BUSH B, SLIDER

51431-KZ3-B01

$9.66

12

COLLAR, REBOUND NEEDLE

51437-KZ3-J41

$9.83

13

BOLT, CENTER

51440-KRN-711

$27.29

14

RING, OIL SEAL STOPPER

51447-KZ3-003

$5.12

15

BOLT ASSY., FR. FORK

51450-MEY-003

Unavailable

16

NUT, LOCK

51451-KZ3-B01

$15.36

17

BUSH C, SLIDER

51453-KZ3-B01

$6.54

18

BOLT, PLUG

51456-KZ3-J41

$6.21

19

RING, WEAR

51476-MEY-003

$4.90

20

FORK SUB ASSY,R F This part replaces 51480-MEY-003.

51480-MEY-505

$1,907.41

21

SEAL SET, FR. FORK

51490-KSC-003

$23.92

22

PIPE, L. SLIDE

51520-MEY-003

Unavailable

23

FORK SUB-ASSY., L. FR. (SHOWA) This part replaces 51580-MEY-003.

51580-MEY-505

Unavailable

23

FORK SUB-ASSY., L. FR. (SHOWA)

51580-MEY-505

Unavailable

24

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL)

51610-MEY-000ZA

$47.90

25

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL)

51620-MEN-000ZA

$44.97

26

BOLT, FLANGE (8X40)

90108-KZ4-J40

$2.13

27

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

28

BOLT, PROTECTOR

90113-MAC-780

$3.53

29

DUST SEAL

91254-KSC-003

$11.00

30

O-RING (26.7X3.5)

91256-KZ3-A71

$3.10

31

O-RING (27.7X1.9)

91257-MEB-751

$2.28

32

O-RING (18.8X1.9)

91258-KZ3-B01

$2.72

33

O-RING (3.5X1.5)

91301-KZ3-711

$2.70

34

O-RING (44.7X2.4)

91356-KZ3-003

$3.92

35

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.92

36

SCREW, TAPPING (4X10)

93913-14110

$1.49
