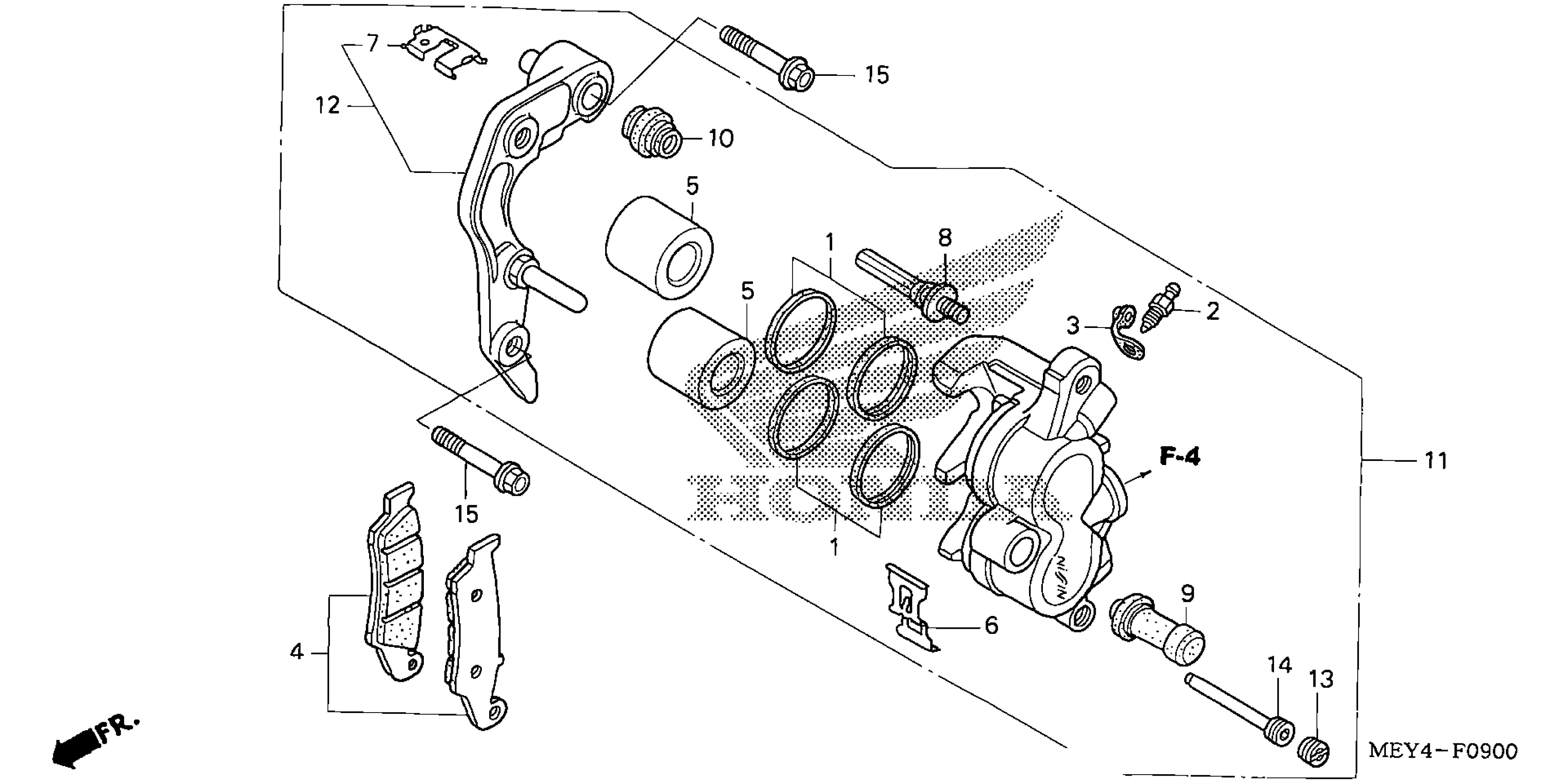

Honda CRF450XA (06) CRF450X, JPN, VIN# JH2PE060-6K100001 TO JH2PE060-6K199999 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06431-MA3-405

$7.33

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PAD SET, FR. This part replaces 45105-MY6-405.

45105-MY6-415

$47.06

PAD SET, FR.

45105-MY6-415

$47.06

PISTON

45107-KZ4-J31

$35.39

SPRING, PAD

45108-MY1-006

$10.74

RETAINER

45112-KS6-701

$6.08

BOLT A, PIN

45131-HA5-672

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. BRAKE (NISSIN)

45150-MEN-006

$250.80

BRACKET SUB-ASSY., L. FR. CALIPER

45190-MEN-006

$129.90

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER

45215-HA5-672

$10.63

BOLT, FLANGE (8X40)

90110-KZ4-J40

$2.92
