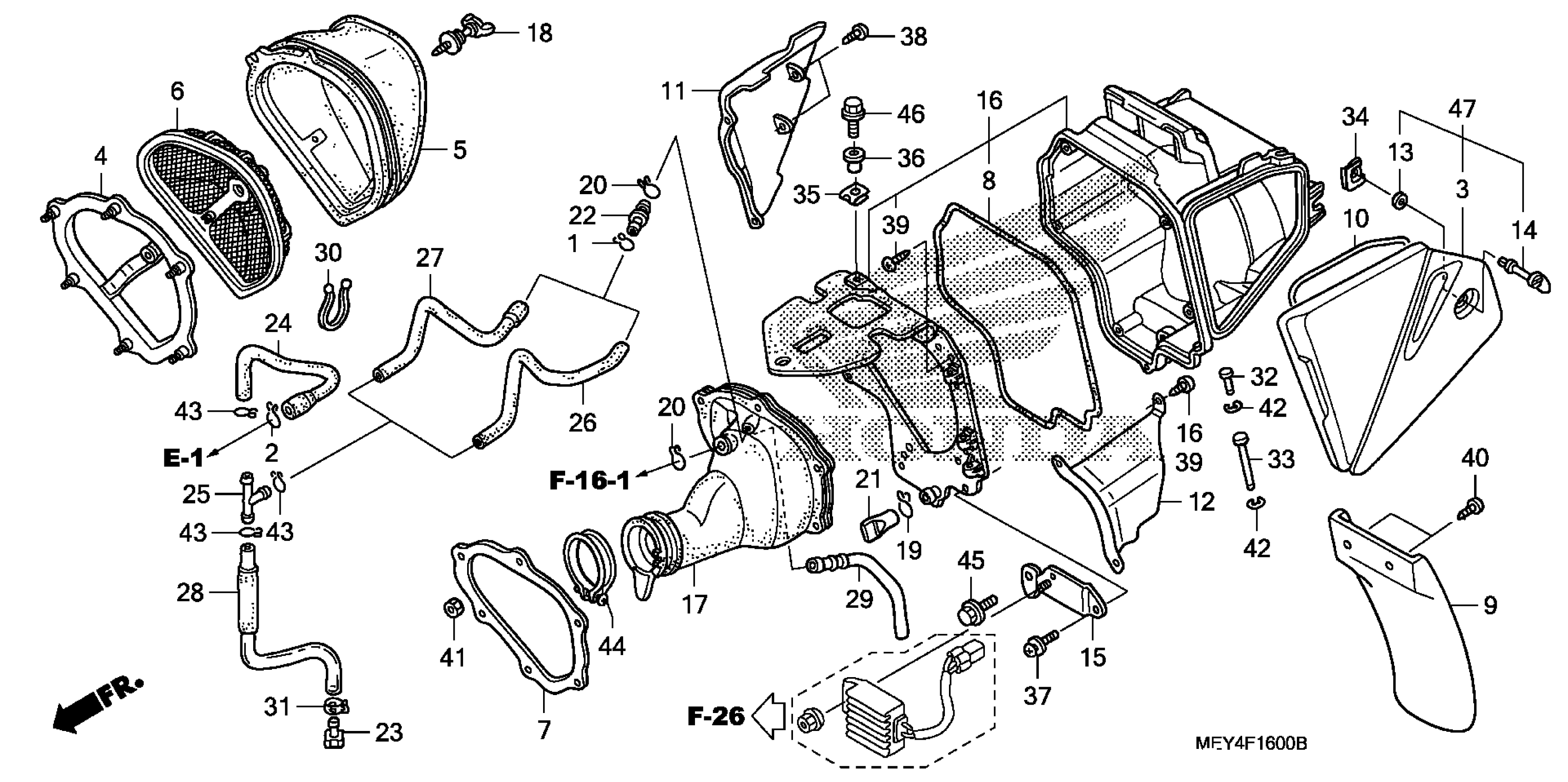

Honda CRF450XA (06) CRF450X, JPN, VIN# JH2PE060-6K100001 TO JH2PE060-6K199999 AIR CLEANER Diagram

#

Description
Price

1

CLAMP B, TUBE (12.5MM)

90661-GHB-610

$1.48

2

CLIP, OIL DRAIN TUBE

15771-551-000

$8.48

3

COVER, AIR CLEANER

17207-MEY-670

$24.67

4

STAY, AIR CLEANER ELEMENT

17212-MEN-670

$63.96

5

ELEMENT, AIR CLEANER

17213-KSC-000

$35.69

6

BASE ASSY., ELEMENT

17214-MEN-670

$42.85

7

PLATE, FR. AIR CLEANER HOUSING

17217-MEB-770

$11.71

8

SEAL, AIR CLEANER HOUSING

17218-KSC-000

$7.71

9

SPLASH GUARD, AIR CLEANER HOUSING

17218-KZ3-860

$23.66

10

SEAL, AIR CLEANER COVER

17219-MEY-670

$6.71

11

COVER, R. SIDE

17221-MEY-670

Unavailable

12

GUARD, HEAT

17223-MEY-670

$25.84

13

WASHER, AIR CLEANER COVER SETTING

17224-KN5-670

$1.22

14

STUD (6X21) This part replaces 17225-KN5-670.

17225-KN5-671

$6.51

15

STAY, REGULATOR

17231-MEY-670

$7.51

16

HOUSING, AIR CLEANER

17250-MEY-670

$77.04

17

TUBE, AIR CLEANER CONNECTING

17253-MEY-670

$46.90

18

BOLT, ELEMENT SETTING

17291-KSC-000

$6.48

19

CLIP A, BREATHER TUBE

17316-MN1-670

$2.22

20

CLIP, BREATHER TUBE

17316-611-000

$8.28

21

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.60

21

TUBE, DRAIN

17358-HM8-000

$4.60

22

JOINT, BREATHER TUBE

17359-KT1-780

$7.03

23

PLUG, BREATHER TUBE

17370-419-700

$3.49

24

TUBE A, BREATHER

17372-MEB-670

Unavailable

25

JOINT, BREATHER THREE WAY

17373-KC1-J10

$8.43

26

TUBE B, BREATHER

17374-MEN-730

Unavailable

28

TUBE C, BREATHER

17375-MEB-670

$5.88

30

LOCK, PURSE

32171-GF9-621

$1.94

31

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

32

PIN, BRAKE LOCK LEVER PIVOT

53189-GCS-000

$1.03

33

PIN, VISOR HINGE

64308-GG2-000

$7.35

34

PLATE, SPRING

64508-KV3-000

$6.72

35

NUT, CLIP (6MM)

90305-GK8-000

$2.17

36

COLLAR, AIR CLEANER

90501-KRN-000

$4.77

37

SCREW-WASHER (5X14)

93892-05014-07

$1.03

38

SCREW, TAPPING (4X12)

93903-24380

Unavailable

39

SCREW, TAPPING (5X16)

93903-25380

$0.83

40

SCREW, TAPPING (5X16) (PO)

93913-25410

$1.03

41

NUT, HEX. (5MM)

94002-05070-0S

$0.55

42

E-RING (3MM)

94540-03010

$1.00

43

CLIP, TUBE (B12)

95002-02120

Unavailable

44

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60321

$5.50

45

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

46

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
