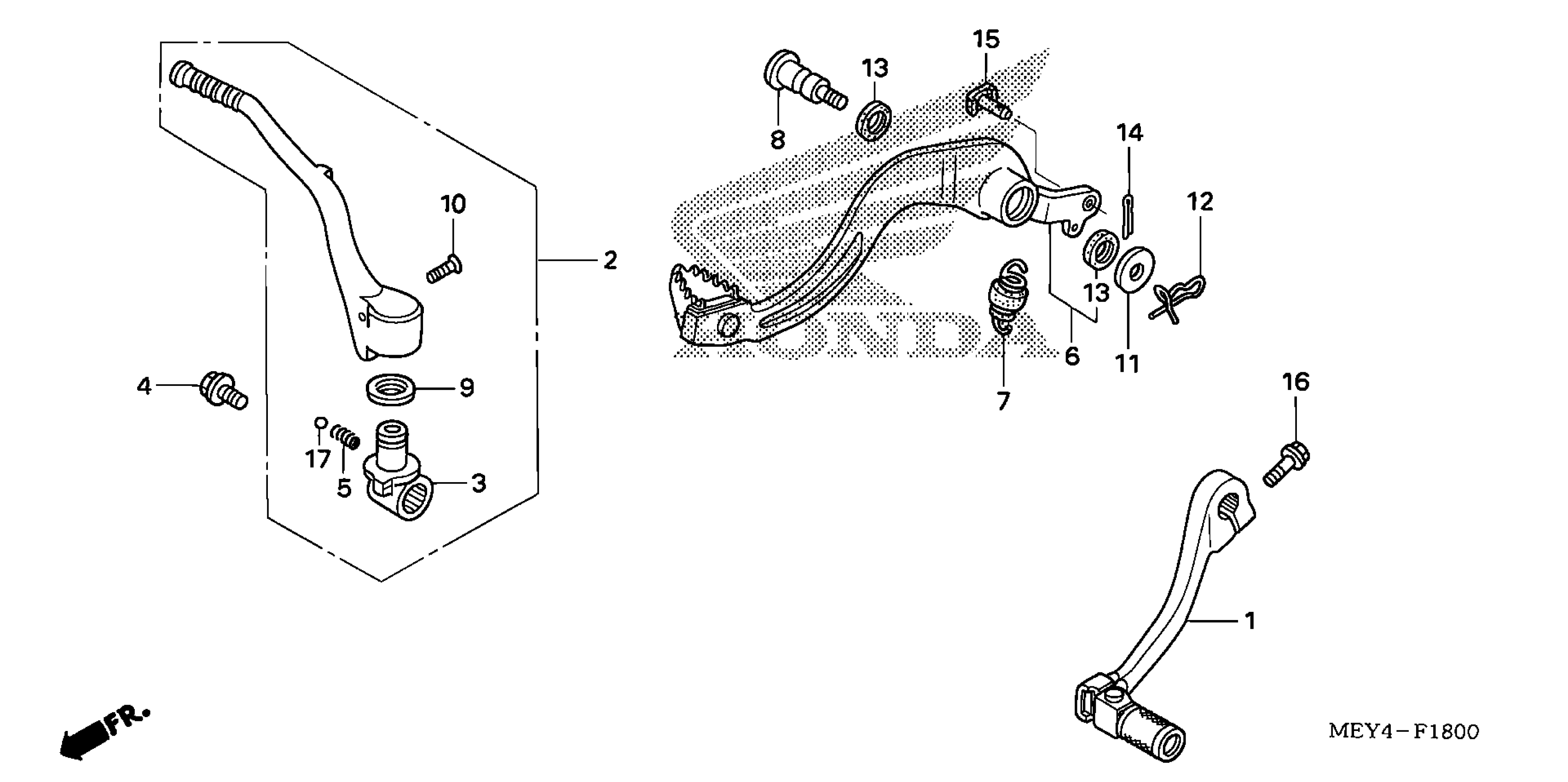

Honda CRF450XA (05) CRF450X, JPN, VIN# JH2PE060-5K000001 TO JH2PE060-5K099999 PEDAL + KICK STARTER ARM Diagram

PEDAL, CHANGE (COO) This part replaces 24700-MEY-670.

24700-MEY-305

$98.01

ARM ASSY., KICK STARTER

28300-MEB-671

$161.75

JOINT, KICK ARM

28302-MEB-671

$68.14

BOLT, KICK JOINT

28306-MEN-670

$5.59

SPRING, KICK STARTER

28333-KK0-000

$2.32

PEDAL, RR. BRAKE This part replaces 46510-MEY-305.

46510-MEY-670

$114.60

PEDAL, RR. BRAKE

46510-MEY-670

$114.60

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.13

SHAFT, BRAKE PIVOT

46513-MEY-670

$13.10

DUST SEAL (17X20X2.5)

46525-KK0-003

$4.83

BOLT, KICK ARM

90101-MAC-680

$5.65

WASHER (26X10.5)

90512-KRN-730

$2.40

PIN, SNAP (8MM)

90705-PFF-300

$4.53

DUST SEAL (15X20X2.5)

91251-444-000

$4.13

PIN, SPLIT (2.0X12)

94201-20120

$1.04

PIN D, JOINT

95015-54000

$4.05

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
