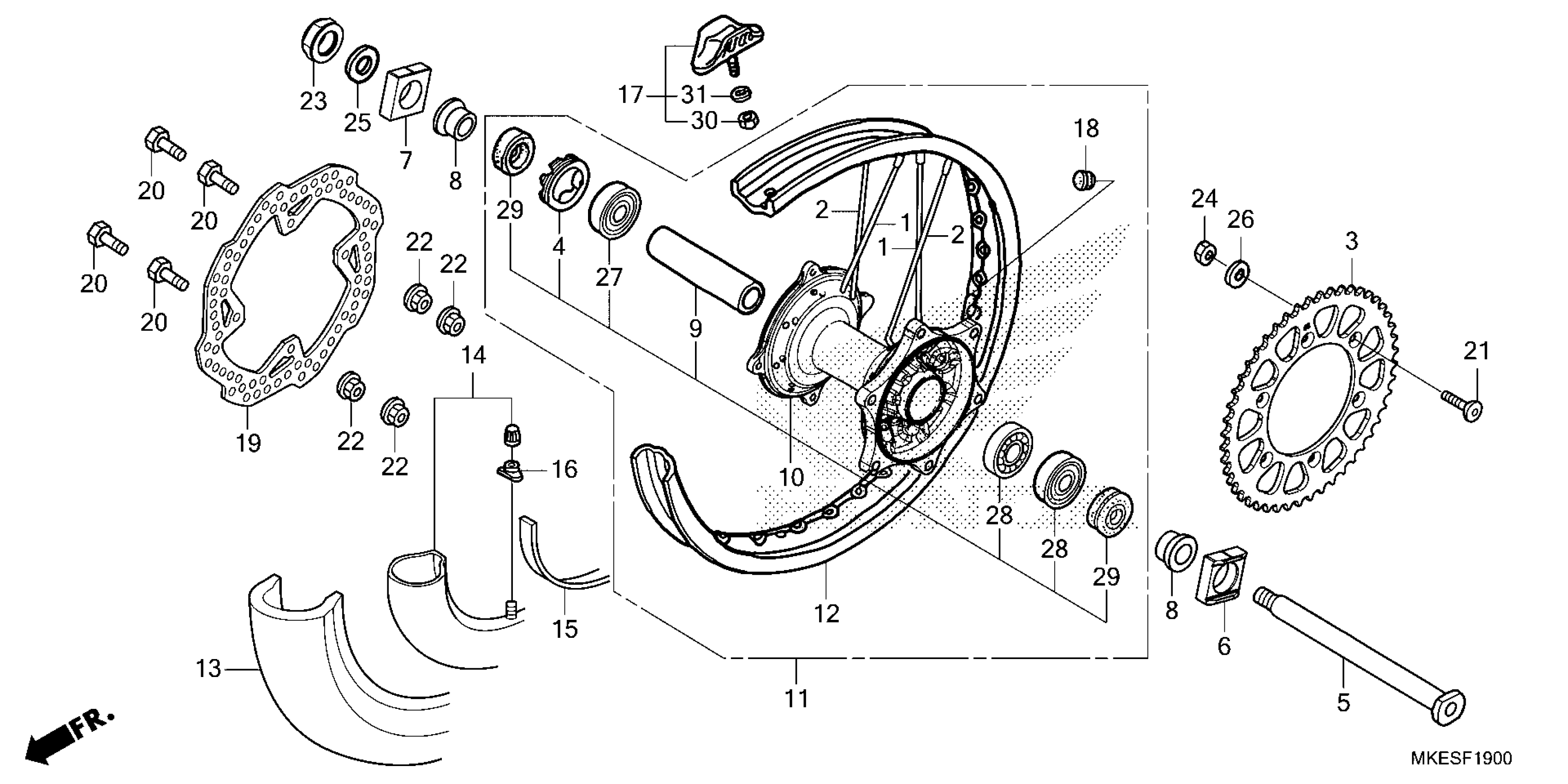

Honda CRF450RXAC (25) MOTORCYCLE, JPN, VIN# JH2PE103-SK600001 TO JH2PE103-SK699999 REAR WHEEL Diagram

#

Description
Price

1

SPOKE SET, RR. (INSIDE)

06420-MEY-000

$4.85

2

SPOKE SET, RR. (OUTSIDE)

06421-MEY-000

$4.85

3

SPROCKET, FINAL DRIVEN (49T) | (Optional).

41201-MKE-A70

$136.74

3

SPROCKET, FINAL DRIVEN (50T)

41203-MKE-A00

$136.44

3

SPROCKET, FINAL DRIVEN (51T) | (Optional).

41204-MKE-A10

$143.44

4

RETAINER, RR. WHEEL BEARING

41231-KZ4-J20

$19.28

5

AXLE, RR. WHEEL

42301-KRN-A30

$47.01

6

COLLAR, L. RR. AXLE

42305-MKE-A50

$21.38

7

COLLAR, R. RR. AXLE

42306-KZ4-J20

$19.28

8

COLLAR, RR. WHEEL SIDE

42311-MKE-A60

$27.12

9

COLLAR, RR. WHEEL DISTANCE

42620-MKE-A60

$27.07

10

HUB SUB-ASSY., RR.

42635-MKE-AF0

$402.58

11

WHEEL SUB-ASSY., RR.

42650-MKE-AG0

$822.92

12

RIM, RR. WHEEL (18X2.15)

42701-MKE-AG1

$273.28

13

TIRE (120/90-18 65M)

42711-MKE-A12

$116.62

14

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KT1-672.

42712-KT1-673

$37.60

14

TUBE, TIRE

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

14

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

15

FLAP, TIRE (2.15-18) (DUNLOP) This part replaces 42713-KS6-641.

42713-300-004

$6.14

15

FLAP, TIRE (1.85/2.15-18) (DUNLOP)

42713-300-004

$6.14

16

CAP, VALVE

42714-KA3-710

$10.46

17

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

18

CAP, RIM HOLE

42717-329-000

$4.21

19

DISK, RR. BRAKE

43351-K95-AG1

$160.39

20

BOLT, DISK (6X19)

90105-MAC-680

$4.99

21

SCREW, FLAT SOCKET

90125-MKE-AF0

$3.87

22

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

23

NUT, U (22MM)

90305-KZ4-J20

$8.96

24

NUT, U (8MM)

90309-MKE-AF1

$2.92

25

WASHER (22X35X2)

90401-KZ4-J20

$2.89

26

WASHER (8MM)

90465-MC4-000

$2.51

27

BEARING, RADIAL BALL (69052RS)

91051-KZ4-J21

$18.42

28

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

29

DUST SEAL (32X43X7)

91251-KZ4-J21

$4.94

30

NUT, HEX. (8MM)

94001-08000-0S

$1.49

31

WASHER, SPRING (8MM)

94111-08000

$1.49
