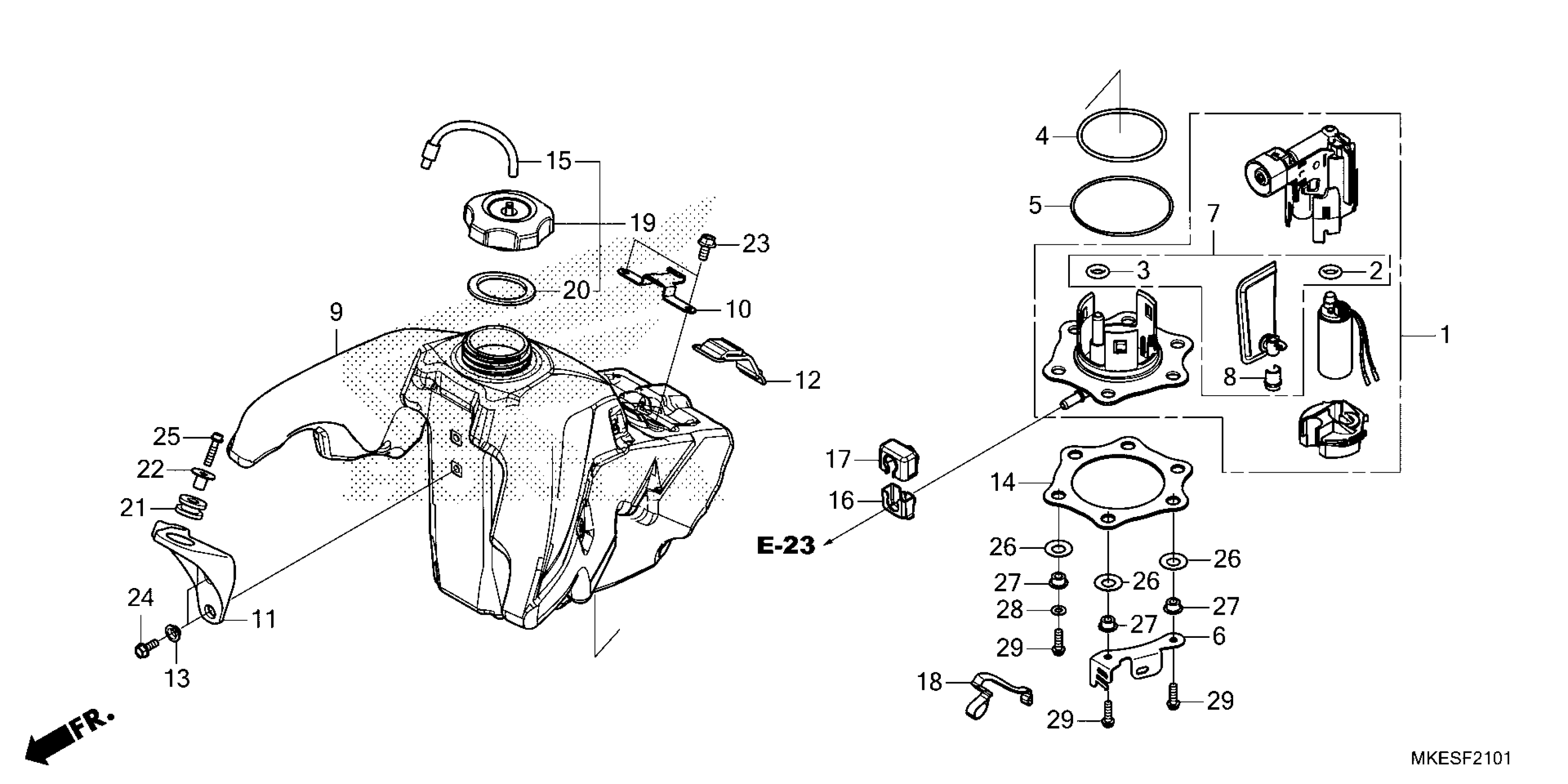

Honda CRF450RXAC (25) MOTORCYCLE, JPN, VIN# JH2PE103-SK600001 TO JH2PE103-SK699999 FUEL TANK (CRF450RX) Diagram

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE)

16700-MEN-A52

$364.34

O-RING (8.6X1.9)

16702-KPC-D50

$1.49

O-RING (10X2.4)

16702-KTR-940

$5.28

O-RING (3.7X73.9)

16711-MEN-A30

$12.17

O-RING (2.4X88.4)

16712-MEN-A30

$11.06

GUARD, FUEL JOINT

16714-MKE-AG0

$20.07

FILTER SET

16715-MEN-A51

$64.06

RUBBER, STOPPER

16735-MEN-A51

$7.92

TANK, FUEL

17510-MKE-AG0

$804.72

STAY, SEAT HOOK

17513-MKE-AG0

$6.08

STAY, FR. FUEL TANK

17516-MKE-AG0

$7.82

BAND, RR. TANK

17517-MKE-AF0

$14.62

COLLAR, FR. TANK STAY

17518-MKE-AF0

$4.43

PLATE, FUEL PUMP

17519-MEN-A30

$18.49

TUBE, FUEL CAP BREATHER

17521-MKE-A70

$5.69

COVER, FUEL CONNECTOR

17575-MKE-AF0

$6.00

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.89

STRAP, FUEL TANK

17577-MKE-AF0

$5.18

CAP ASSY., FUEL TANK

17620-MKE-A81

$91.13

GASKET, FUEL CAP

17624-KT1-781

$4.81

RUBBER, MUFFLER

18334-KA3-830

$3.89

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

BOLT, FLANGE (5X10)

90002-892-000

$1.49

BOLT, FLANGE (6X16)

90020-GHB-640

$2.26

BOLT, FLANGE (6X25)

90020-GHB-680

$2.26

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.66

COLLAR, FUEL PUMP

90504-MKE-A00

$6.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
