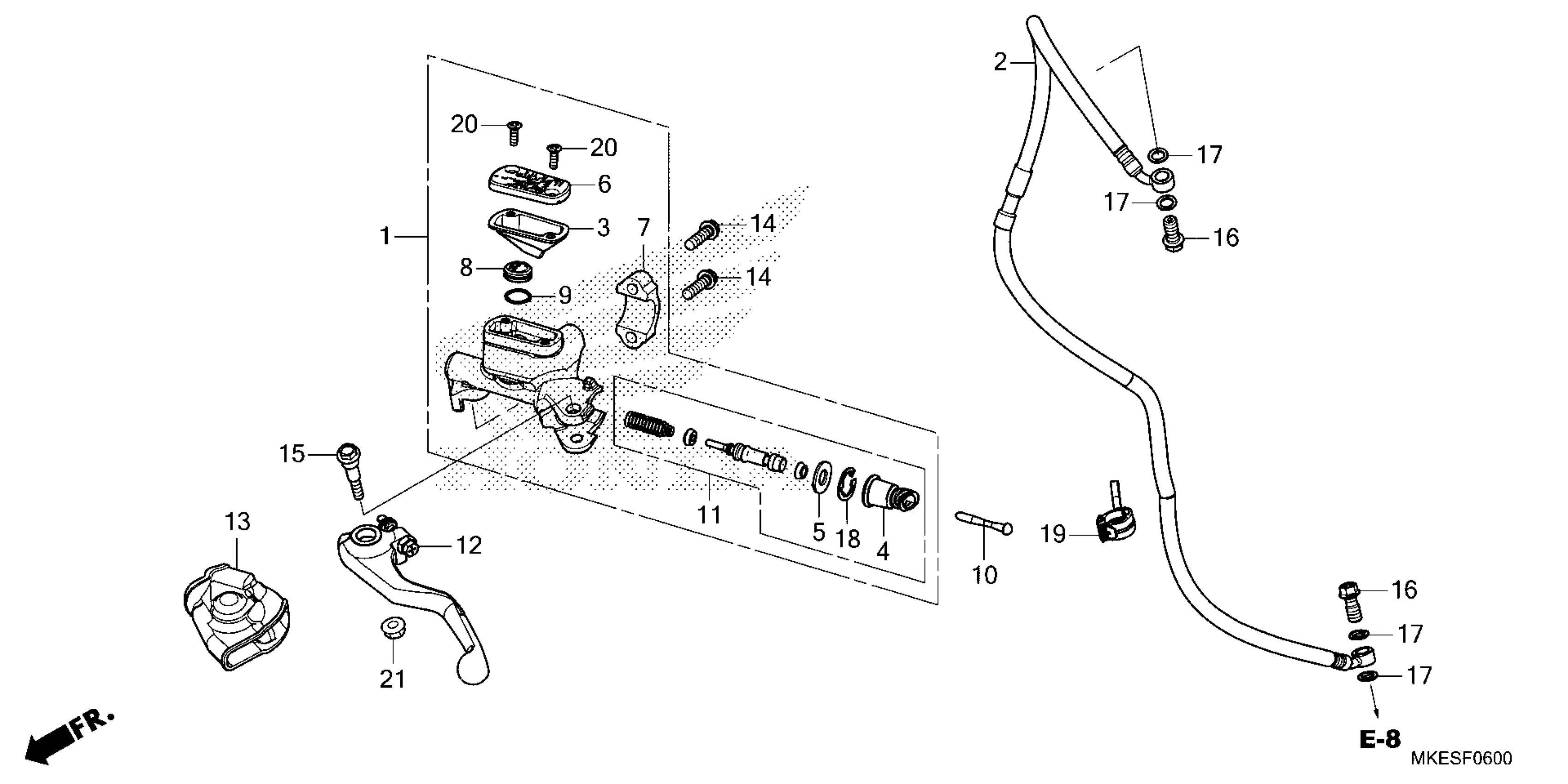

Honda CRF450RXAC (25) MOTORCYCLE, JPN, VIN# JH2PE103-SK600001 TO JH2PE103-SK699999 CLUTCH MASTER CYLINDER Diagram

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MKE-AF1

$200.96

HOSE, CLUTCH

22900-MKE-AF1

$58.18

DIAPHRAGM

43521-MJT-E01

$4.93

BOOT

45504-MEN-J01

$9.20

PLATE, STOPPER

45512-MKE-AF1

$2.64

CAP, MASTER CYLINDER

45513-MKE-AF1

$18.48

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

SEPARATOR

45518-MEN-J01

$7.18

RING

45523-KA3-731

$2.92

PUSH ROD, CLUTCH MASTER CYLINDER

45525-MKE-AF1

$8.94

PISTON SET, MASTER CYLINDER

45530-MKE-AF1

$60.89

LEVER ASSY., L. HANDLE

53180-MKE-AF1

$45.14

BOLT, FLANGE (6X22)

90020-GHB-670

$2.33

BOLT, LEVER PIVOT

90114-MKE-AG1

$5.95

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

HOLDER, HARNESS (BLACK)

91559-S5A-003

$4.25

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
