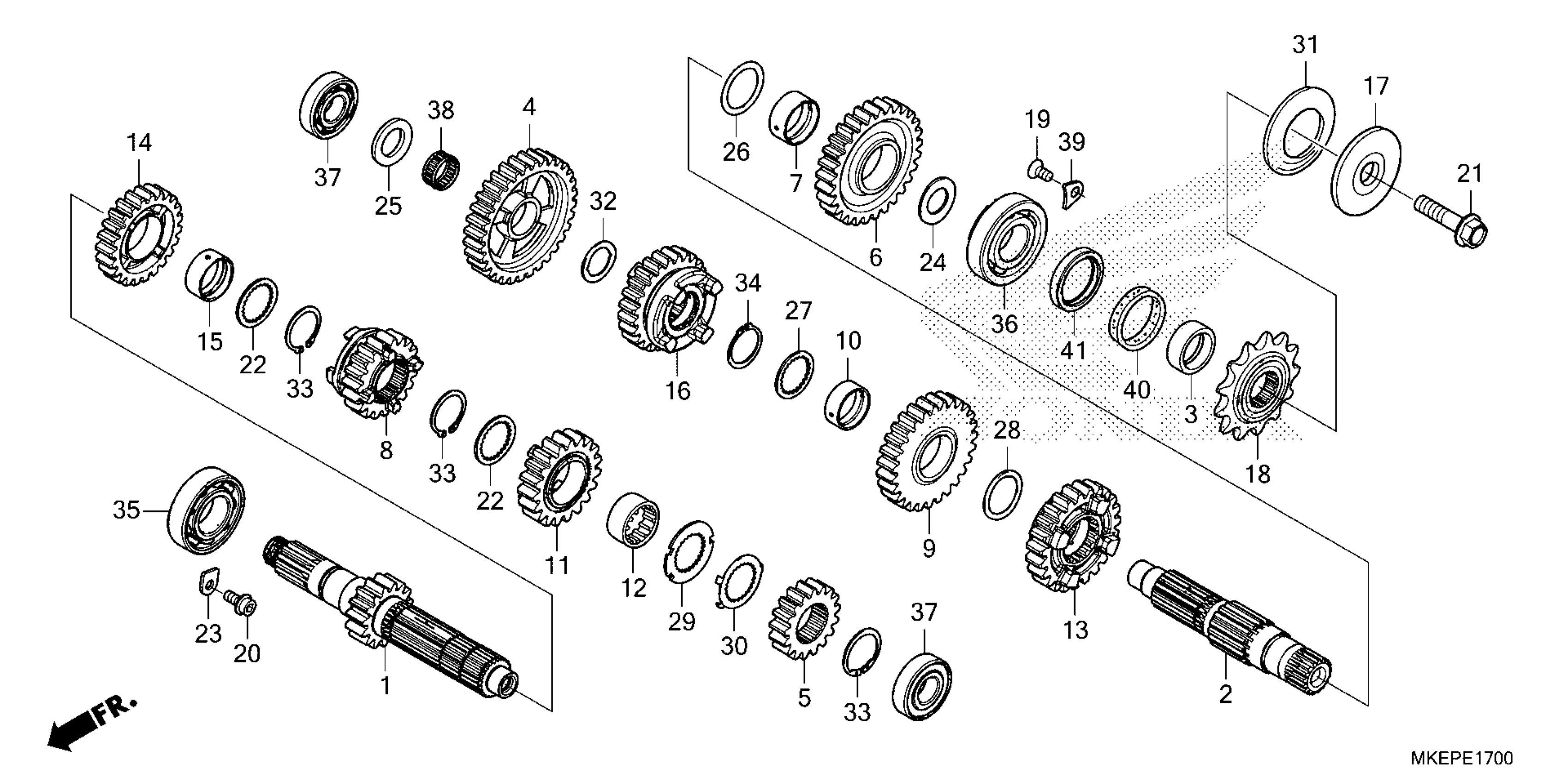

Honda CRF450RXAC (23) MOTORCYCLE, JPN, VIN# JH2PE103-PK400001 TO JH2PE103-PK499999 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (15T)

23210-MKE-A00

$143.35

2

COUNTERSHAFT

23220-MKE-AF0

$140.67

3

COLLAR, COUNTERSHAFT

23225-MEN-730

$12.86

4

GEAR, COUNTERSHAFT LOW (32T)

23411-MKE-A01

$100.29

5

GEAR, MAINSHAFT SECOND (17T)

23421-MKE-A00

$51.13

6

GEAR, COUNTERSHAFT SECOND (29T)

23431-MKE-A00

$94.99

7

COLLAR (27X30X13.2)

23432-MKE-A00

$15.16

8

GEAR, MAINSHAFT THIRD (19T)

23441-MKE-AF0

$92.41

9

GEAR, COUNTERSHAFT THIRD (27T)

23451-MKE-AF0

$91.25

10

COLLAR (28X31X11)

23452-MKE-AF0

$11.96

11

GEAR, MAINSHAFT FOURTH (19T)

23461-MKE-A00

$81.87

12

COLLAR, SPLINE (26X14.3)

23462-MKE-A00

$15.03

13

GEAR, COUNTERSHAFT FOURTH (23T)

23471-MKE-AF0

$93.48

14

GEAR, MAINSHAFT FIFTH (23T)

23481-MKE-A00

$83.54

15

COLLAR (26X29X12.3)

23482-MKE-A00

$12.77

16

GEAR, COUNTERSHAFT FIFTH (24T)

23491-MKE-AF0

$93.30

17

COLLAR, DRIVE SPROCKET

23802-KSC-670

$13.19

18

SPROCKET, DRIVE (13T)

23802-MEN-730

$35.47

19

SCREW, SPECIAL FLAT (6X12)

90003-KRN-670

$1.86

20

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.12

21

BOLT, UBS (8X33)

90112-413-000

$3.59

22

WASHER, SPLINE (26MM)

90402-HP6-A00

$2.17

23

PLATE, BEARING HOLDER

90441-KRM-840

$0.55

24

WASHER, THRUST (24.1X37X1.0)

90445-MKE-A00

$3.12

25

WASHER, THRUST (17.1X30X1.5)

90446-MKE-A00

$3.12

26

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.53

27

WASHER, SPLINE (28X27X1)

90452-MKR-D10

$3.09

28

WASHER, THRUST (28MM)

90458-729-920

$4.87

29

WASHER, SPLINE (26MM)

90461-MKE-A00

$2.88

30

WASHER, LOCK (26MM)

90462-MKE-A00

$3.06

31

WASHER, SPRING (24MM)

90501-KSC-670

$3.96

32

WASHER, THRUST (19MM)

90554-KA5-680

$4.07

33

CIRCLIP, SPECIAL (OUTER) (26MM)

90602-MKE-A00

$2.58

34

CIRCLIP (28MM)

90603-MN4-000

$3.49

35

BEARING, RADIAL BALL SPECIAL (6205U)

91003-MEN-A71

$16.22

36

BEARING, RADIAL BALL (24X56X14)

91005-MKE-A01

$28.79

37

BEARING, RADIAL BALL (17X40X11)

91006-MEN-A71

$19.20

38

BEARING, NEEDLE (19X22X9.8)

91007-MEN-731

$8.41

39

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.54

40

D-RING (23.75MM)

91201-MKE-A71

$2.85

41

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$9.17
