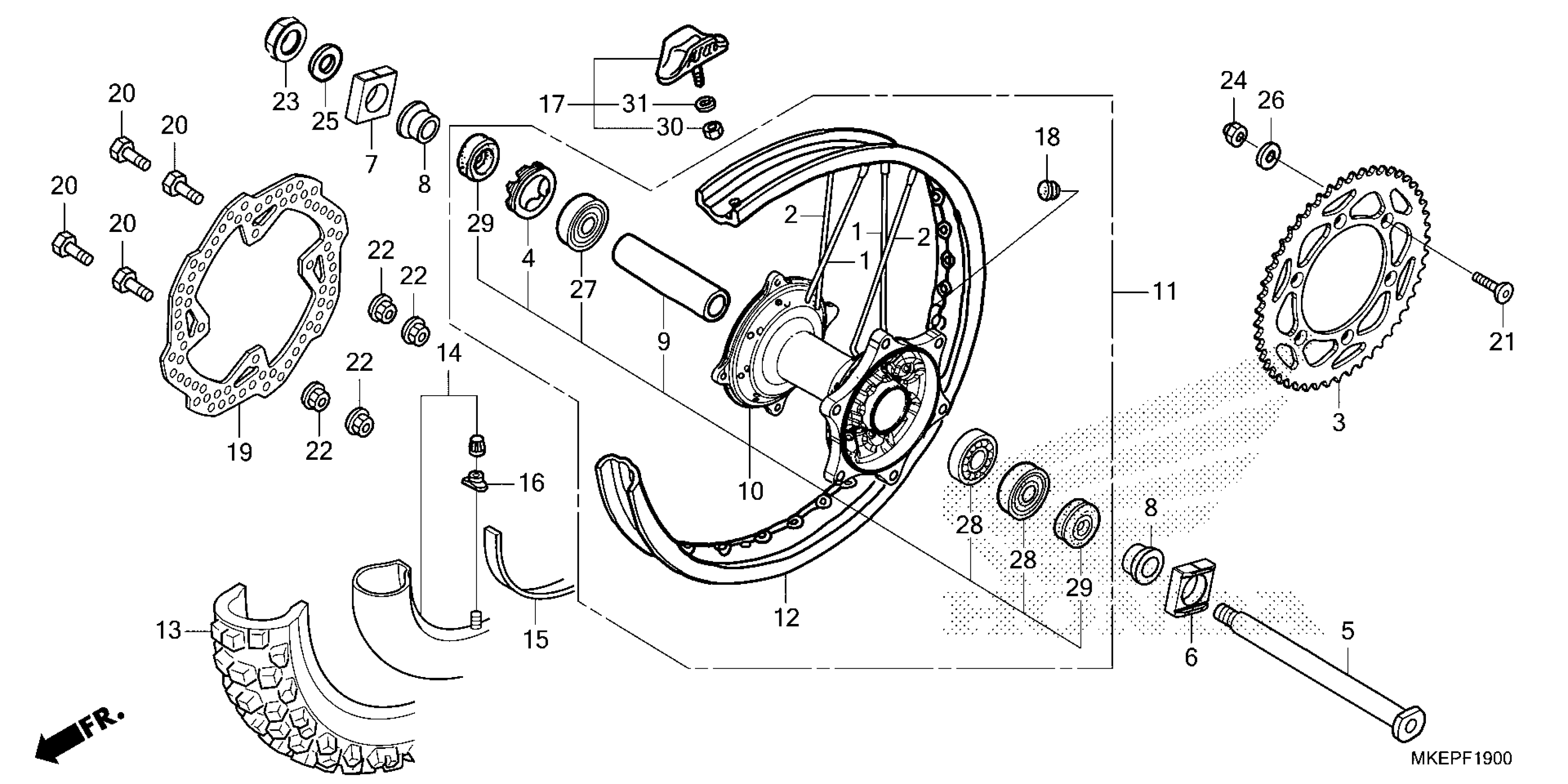

Honda CRF450RXAC (23) MOTORCYCLE, JPN, VIN# JH2PE103-PK400001 TO JH2PE103-PK499999 REAR WHEEL Diagram

#

Description
Price

1

SPOKE SET, RR. (INSIDE)

06420-MEY-000

$4.65

2

SPOKE SET, RR. (OUTSIDE)

06421-MEY-000

$4.65

3

SPROCKET, FINAL DRIVEN (49T) | (Optional).

41201-MKE-A70

$126.35

3

SPROCKET, FINAL DRIVEN (50T)

41203-MKE-A00

$126.07

3

SPROCKET, FINAL DRIVEN (51T) | (Optional).

41204-MKE-A10

$132.54

4

RETAINER, RR. WHEEL BEARING

41231-KZ4-J20

$17.70

5

AXLE, RR. WHEEL

42301-KRN-A30

$43.16

6

COLLAR, L. RR. AXLE

42305-MKE-A50

$19.63

7

COLLAR, R. RR. AXLE

42306-KZ4-J20

$17.70

8

COLLAR, RR. WHEEL SIDE

42311-MKE-A60

$24.91

9

COLLAR, RR. WHEEL DISTANCE

42620-MKE-A60

$24.86

10

HUB SUB-ASSY., RR.

42635-MKE-AF0

$394.54

11

WHEEL SUB-ASSY., RR.

42650-MKE-AG0

$760.41

12

RIM, RR. WHEEL (18X2.15)

42701-MKE-AG1

$252.49

13

TIRE (120/90-18 65M) This part replaces 42711-MKE-A11.

42711-MKE-A12

$116.62

13

TIRE (120/90-18 65M)

42711-MKE-A12

$116.62

14

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$33.52

14

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$33.52

14

TUBE, TIRE This part replaces 42712-KT1-672.

42712-KT1-673

$33.52

14

TUBE, TIRE

42712-KT1-673

$33.52

14

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$33.52

14

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$33.52

15

FLAP, TIRE (2.15-18) (DUNLOP) This part replaces 42713-KS6-641.

42713-300-004

$5.86

15

FLAP, TIRE (1.85/2.15-18) (DUNLOP)

42713-300-004

$5.86

16

CAP, VALVE

42714-KA3-710

$9.60

17

STOPPER, BEAD (2.15)

42715-MA0-770

$34.78

18

CAP, RIM HOLE

42717-329-000

$4.01

19

DISK, RR. BRAKE

43351-KRN-A90

$221.31

20

BOLT, DISK (6X19)

90105-MAC-680

$4.77

21

SCREW, FLAT SOCKET

90125-MKE-AF0

$3.57

22

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

23

NUT, U (22MM)

90305-KZ4-J20

$8.25

24

NUT, U (8MM)

90309-MKE-AF1

$2.74

25

WASHER (22X35X2)

90401-KZ4-J20

$2.66

26

WASHER (8MM)

90465-MC4-000

$2.32

27

BEARING, RADIAL BALL (69052RS)

91051-KZ4-J21

$16.92

28

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$15.94

29

DUST SEAL (32X43X7)

91251-KZ4-J21

$4.71

30

NUT, HEX. (8MM)

94001-08000-0S

$1.31

31

WASHER, SPRING (8MM)

94111-08000

Unavailable
