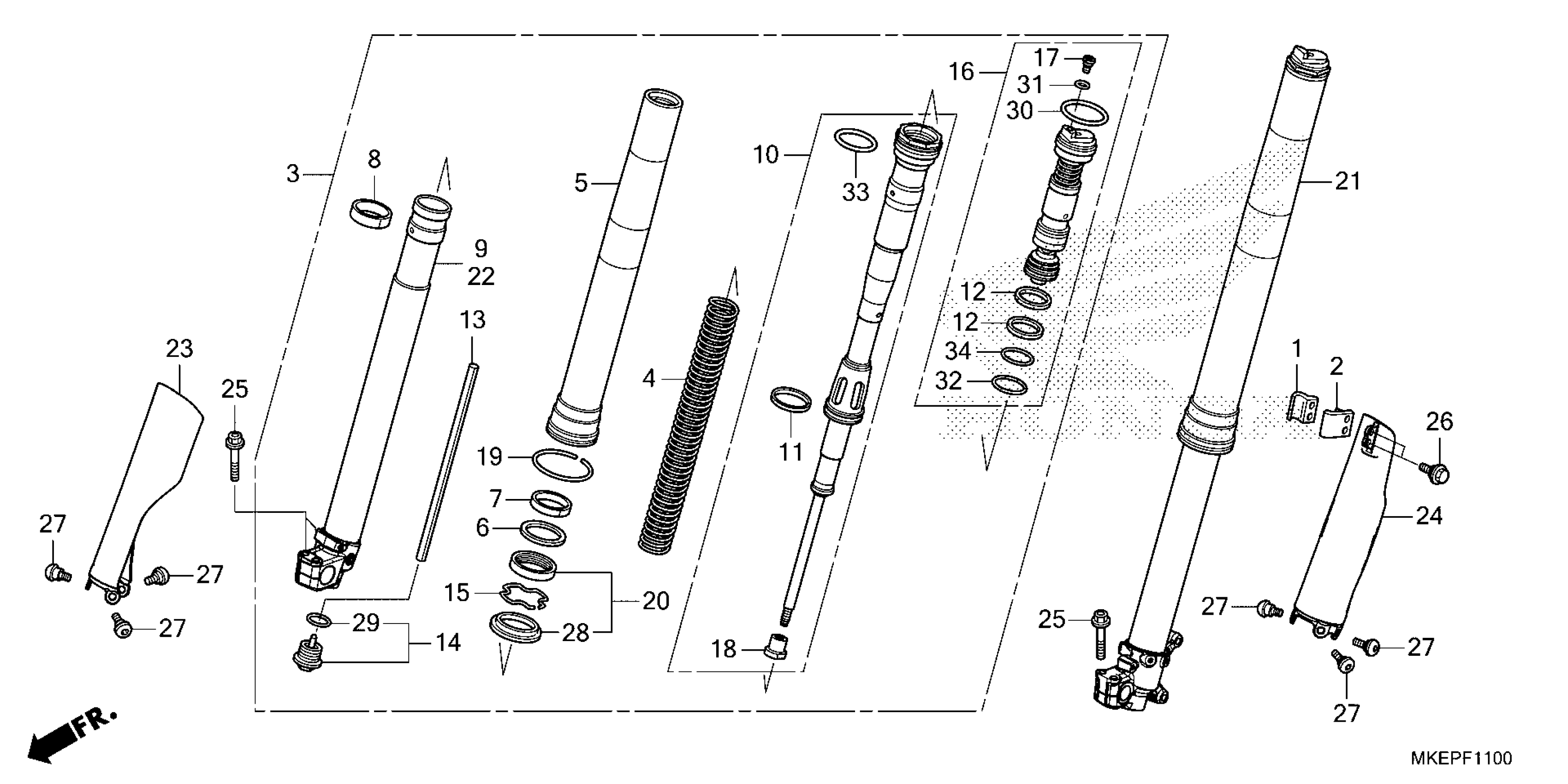

Honda CRF450RXAC (23) MOTORCYCLE, JPN, VIN# JH2PE103-PK400001 TO JH2PE103-PK499999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$5.91

2

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.36

3

FORK ASSY., R. FR.

51400-MKE-AT1

$1,178.90

4

SPRING, FR. FORK (4.8N/MM)

51401-MKE-A01

$101.42

4

SPRING, FR. FORK (5.0N/MM) | (Optional).

51401-MKE-A71

$101.59

4

SPRING, FR. FORK (4.6N/MM) | (Optional).

51402-MKE-A01

$97.38

5

TUBE (OUTER)

51410-MKE-AS1

$435.70

6

RING, BACK-UP

51412-MKE-A71

$6.65

7

BUSH, GUIDE

51414-KRN-A91

$11.74

8

BUSH, SLIDER

51415-KRN-A91

$11.56

9

PIPE, R. SLIDE

51420-MKE-AF1

$356.75

10

DAMPER, FR.

51430-MKE-AT1

$335.71

11

BUSH B, SLIDER

51431-MKE-A01

$11.08

12

BUSH, SLIDER

51436-KRN-A91

$12.49

13

COLLAR, REBOUND NEEDLE

51438-MKE-AF1

$10.58

14

BOLT, CENTER

51440-KRN-A91

$35.08

15

RING, OIL SEAL STOP

51447-KRN-A91

$3.49

16

BOLT ASSY., FR. FORK

51450-MKE-AT1

$178.71

17

BOLT, PLUG

51456-KZ3-J41

$5.78

18

NUT, LOCK

51458-KRN-A91

$10.74

19

RING, WEAR

51476-KRN-A91

$7.19

20

SEAL SET, FR. FORK

51490-KRN-A91

$23.71

21

FORK ASSY., L. FR.

51500-MKE-AT1

$1,178.90

22

PIPE, L. SLIDE

51520-MKE-AF1

$356.75

23

PROTECTOR, R. FR. FORK *R292R* (EXTREME RED)

51610-MKE-A70ZA

$81.74

24

PROTECTOR, L. FR. FORK *R292R* (EXTREME RED)

51620-MKE-A70ZA

$69.80

25

BOLT, FLANGE (8X40)

90108-KZ4-J40

$1.94

26

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.58

27

BOLT, PROTECTOR

90113-MAC-780

$3.28

28

DUST SEAL

91254-KRN-A91

$11.41

29

O-RING (22.1X1.9)

91257-KRN-A91

$2.29

30

O-RING (42.2X2.4)

91258-GF4-003

$5.50

31

O-RING (3.5X1.5)

91301-KZ3-711

$2.46

32

O-RING (35.5X2)

91302-MA3-661

$2.37

33

O-RING (47.2X2.4)

91351-KRN-A41

$3.52

34

O-RING (32.7X3.5)

91351-MKE-AF1

$2.88
