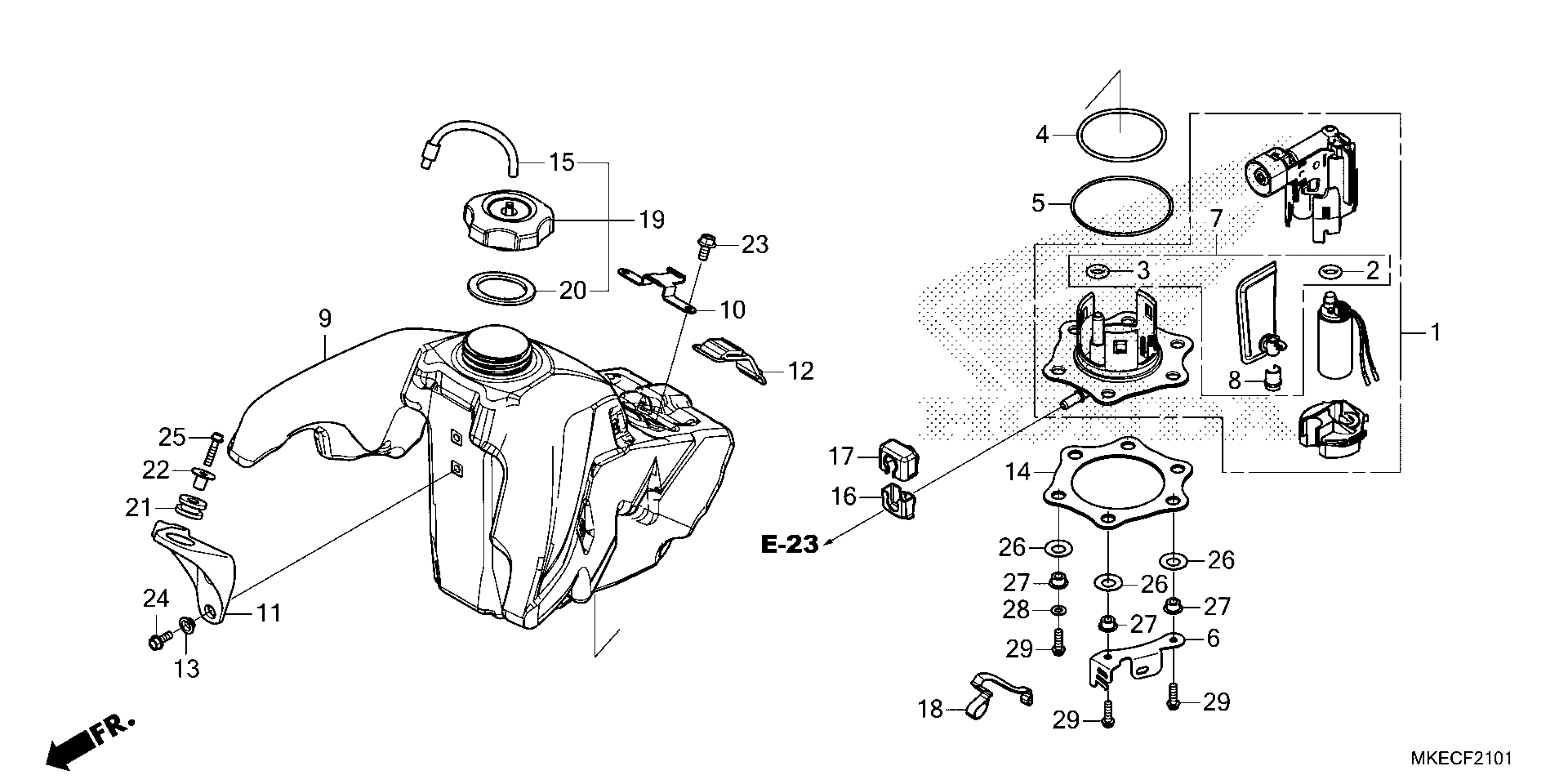

Honda CRF450RXAC (21) MOTORCYCLE, JPN, VIN# JH2PE103-MK200001 TO JH2PE103-MK299999 FUEL TANK (2) Diagram

#

Description
Price

1

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE)

16700-MEN-A52

$327.11

2

O-RING (8.6X1.9)

16702-KPC-D50

$0.51

3

O-RING (10X2.4)

16702-KTR-940

$4.92

4

O-RING (3.7X73.9)

16711-MEN-A30

$10.86

5

O-RING (2.4X88.4)

16712-MEN-A30

$9.95

6

GUARD, FUEL JOINT

16714-MKE-AG0

$18.28

7

FILTER SET

16715-MEN-A51

$57.51

8

RUBBER, STOPPER

16735-MEN-A51

$7.20

9

TANK, FUEL

17510-MKE-AG0

$732.83

10

STAY, SEAT HOOK

17513-MKE-AG0

$5.66

11

STAY, FR. FUEL TANK

17516-MKE-AG0

$7.12

12

BAND, RR. TANK

17517-MKE-AF0

$12.28

13

COLLAR, FR. TANK STAY

17518-MKE-AF0

$4.03

14

PLATE, FUEL PUMP

17519-MEN-A30

$16.84

15

TUBE, FUEL CAP BREATHER

17521-MKE-A70

$4.81

16

COVER, FUEL CONNECTOR

17575-MKE-AF0

$5.46

17

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.48

18

STRAP, FUEL TANK

17577-MKE-AF0

$4.38

19

CAP ASSY., FUEL TANK

17620-MKE-AG0

$83.00

20

GASKET, FUEL CAP

17622-MKE-AF0

$5.45

21

RUBBER, MUFFLER

18334-KA3-830

$3.62

22

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.78

23

BOLT, FLANGE (5X10)

90002-892-000

$1.29

24

BOLT, FLANGE (6X16)

90020-GHB-640

$2.06

25

BOLT, FLANGE (6X25)

90020-GHB-680

$2.06

26

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.42

27

COLLAR, FUEL PUMP

90504-MKE-A00

$6.04

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

28

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

29

BOLT, FLANGE (6X20)

96001-06020-00

$1.13
