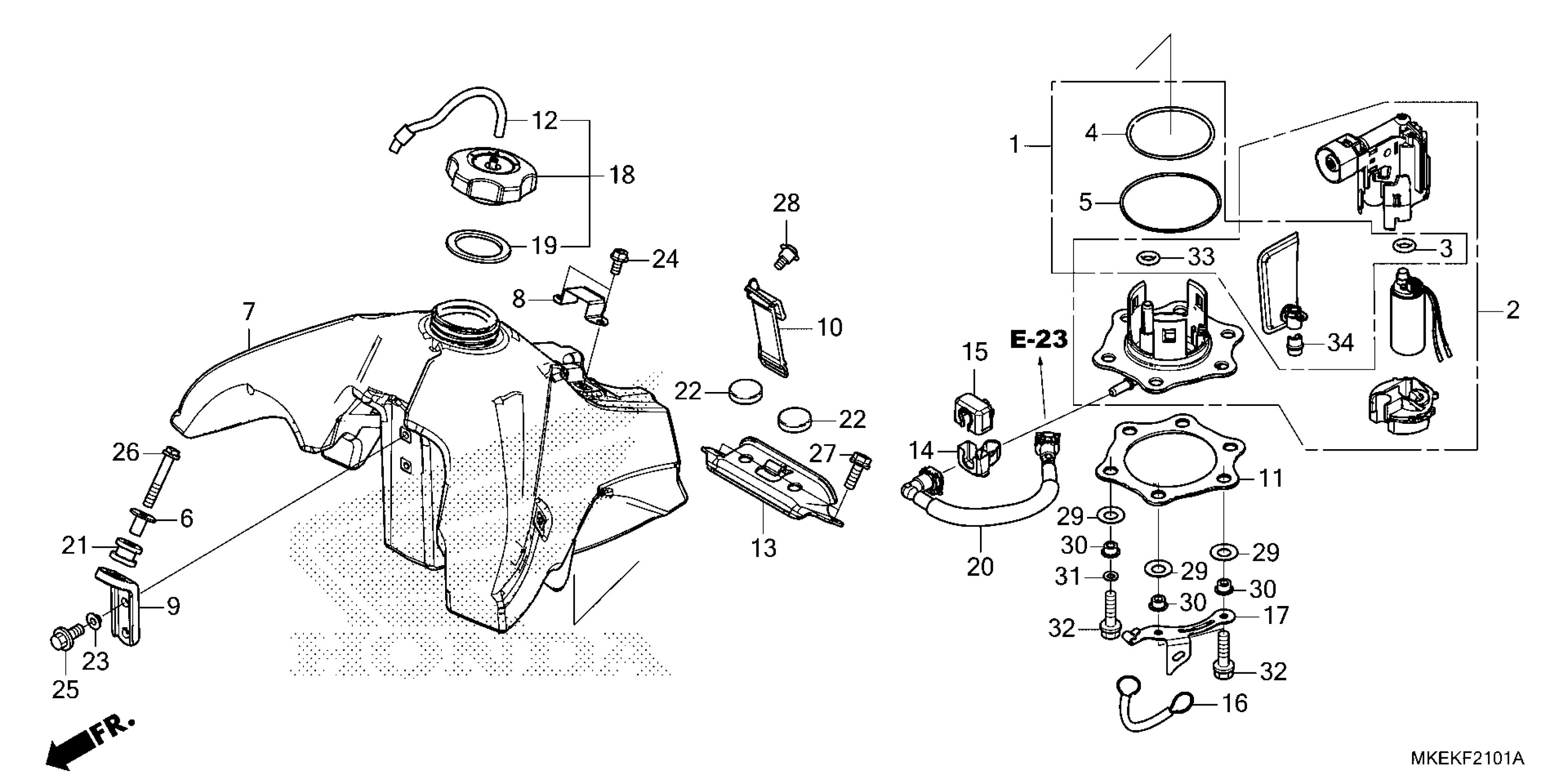

Honda CRF450RXAC (19) MOTORCYCLE, JPN, VIN# JH2PE103-KK000001 TO JH2PE103-KK099999 FUEL TANK (2) Diagram

FILTER KIT, FUEL

06160-MEN-A50

$88.17

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE)

16700-MEN-A52

$364.34

O-RING (8.6X1.9)

16702-KPC-D50

$1.49

O-RING (3.7X73.9)

16711-MEN-A30

$12.17

O-RING (2.4X88.4)

16712-MEN-A30

$11.06

COLLAR, TANK SETTING

17509-KZ3-B00

$9.00

TANK, FUEL

17510-MKE-A10

$940.39

STAY, SEAT HOOK

17513-MKE-A10

$5.56

STAY, FR. FUEL TANK

17516-MKE-A10

$7.97

BAND, RR. TANK

17517-MKE-A10

$14.44

PLATE, FUEL PUMP

17519-MEN-A30

$18.49

TUBE, FUEL CAP BREATHER

17521-MKE-A70

$5.69

STAY, RR. TANK

17525-MKE-A10

$27.85

COVER, FUEL CONNECTOR

17575-KRN-A90

$6.92

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.89

CABLE, FUEL TANK STOPPER

17577-MEN-A30

$7.72

GUIDE, STOPPER CABLE

17578-MKE-A11

$27.56

CAP ASSY., FUEL TANK

17620-MKE-A80

$91.13

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.81

HOSE, FUEL FEED

17630-MKE-A01

$78.50

RUBBER, MUFFLER

18334-ML3-680

$3.87

RUBBER, SEAT STOPPER

77211-965-000

$8.67

COLLAR

84706-415-000

$2.23

BOLT, FLANGE (5X10)

90002-892-000

$1.49

BOLT, FLANGE (6X16)

90020-GHB-640

$2.26

BOLT, FLANGE (6X30)

90020-GHB-700

$2.38

BOLT, FLANGE (6X16)

90030-GHB-640

$2.33

SCREW (5X12)

90105-MEN-730

$1.67

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.66

COLLAR, FUEL PUMP

90504-MKE-A00

$6.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

O-RING (10X2.4)

16702-KTR-940

$5.28

RUBBER, STOPPER

16735-MEN-A51

$7.92
