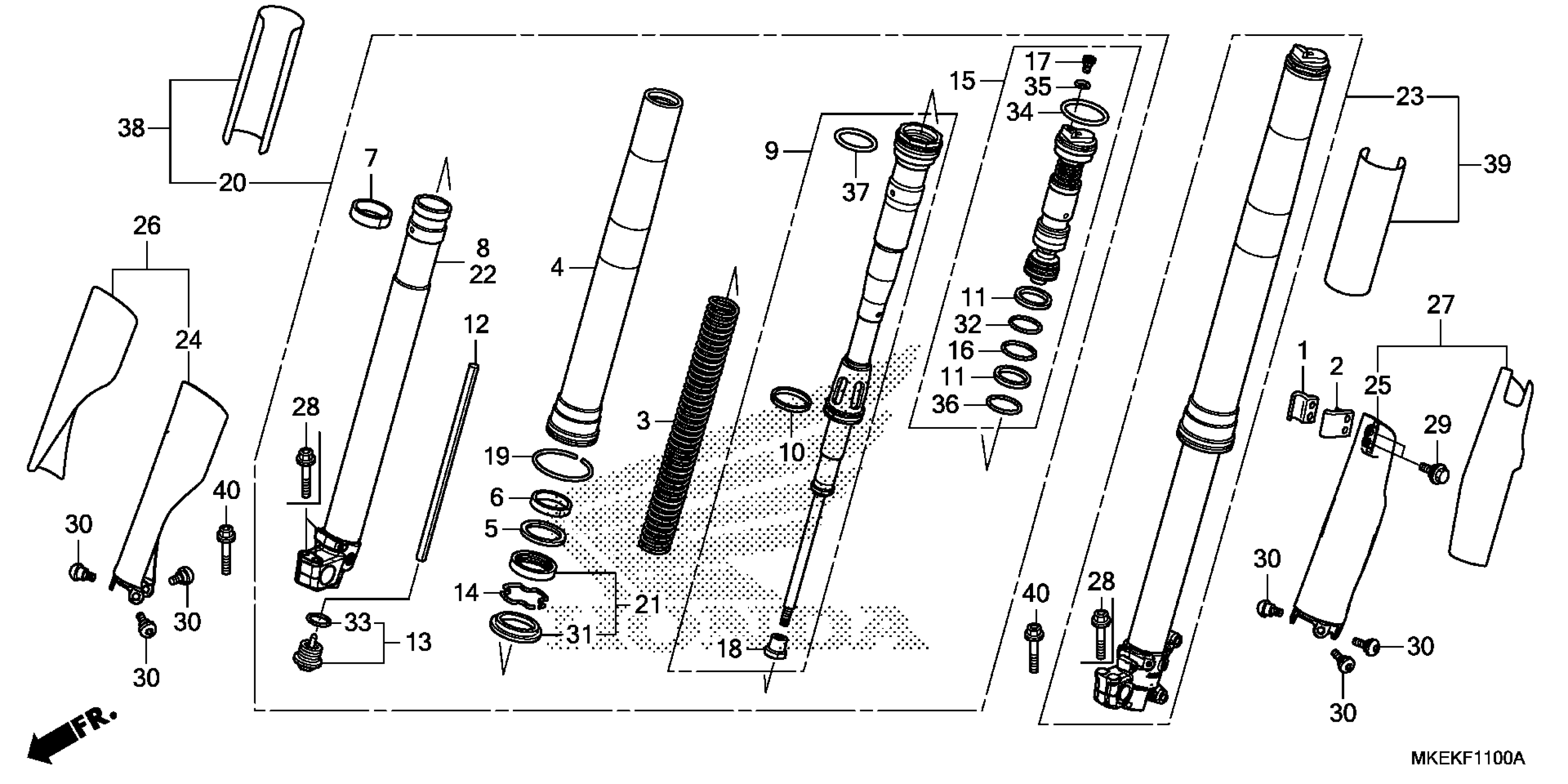

Honda CRF450RXAC (19) MOTORCYCLE, JPN, VIN# JH2PE103-KK000001 TO JH2PE103-KK099999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$6.36

2

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.69

3

SPRING, FR. FORK (4.8N/MM)

51402-MKE-A71

$103.39

3

SPRING, FR. FORK (4.6N/MM) | (Optional).

51402-MKE-A01

$106.92

3

SPRING, FR. FORK (5.0N/MM) | (Optional).

51403-MKE-A01

$115.98

4

TUBE (OUTER)

51410-MKE-A01

$530.21

5

RING, BACK-UP

51412-MKE-A71

$7.87

6

BUSH, GUIDE

51414-KRN-A91

$13.08

7

BUSH, SLIDER

51415-KRN-A91

$12.88

8

PIPE, R. SLIDE

51420-MKE-A01

$407.38

9

DAMPER, FR.

51430-MKE-A81

$438.20

10

BUSH B, SLIDER

51431-MKE-A01

$12.33

11

BUSH, SLIDER

51436-KRN-A91

$13.72

12

COLLAR, REBOUND NEEDLE

51438-KRN-A91

$11.84

13

BOLT, CENTER

51440-KRN-A91

$39.07

14

RING, OIL SEAL STOP

51447-KRN-A91

$3.74

15

BOLT ASSY., FR. FORK

51450-MKE-A81

$233.34

16

RING, PISTON

51453-KRN-A91

$10.02

17

BOLT, PLUG

51456-KZ3-J41

$6.21

18

NUT, LOCK

51458-KRN-A91

$11.79

19

RING, WEAR

51476-KRN-A91

$7.72

20

FORK SUB-ASSY., R. FR.

51480-MKE-A81

$1,543.38

21

SEAL SET, FR. FORK

51490-KRN-A91

$26.42

22

PIPE, L. SLIDE

51520-MKE-A01

$407.38

23

FORK SUB-ASSY., L. FR.

51580-MKE-A81

$1,543.38

24

PROTECTOR, R. FR. FORK *R292R* (EXTREME RED)

51610-MKE-A70ZA

$84.63

25

PROTECTOR, L. FR. FORK *R292R* (EXTREME RED)

51620-MKE-A70ZA

$72.27

28

BOLT, FLANGE (8X40)

90108-KZ4-J40

$2.13

29

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

30

BOLT, PROTECTOR

90113-MAC-780

$3.53

31

DUST SEAL

91254-KRN-A91

$12.71

32

O-RING (31.6X1.8)

91256-KRN-A91

$3.08

33

O-RING (22.1X1.9)

91257-KRN-A91

$2.51

34

O-RING (42.2X2.4)

91258-GF4-003

$5.90

35

O-RING (3.5X1.5)

91301-KZ3-711

$2.70

36

O-RING (35.5X2)

91302-MA3-661

$2.65

37

O-RING (47.2X2.4)

91351-KRN-A41

$3.77
