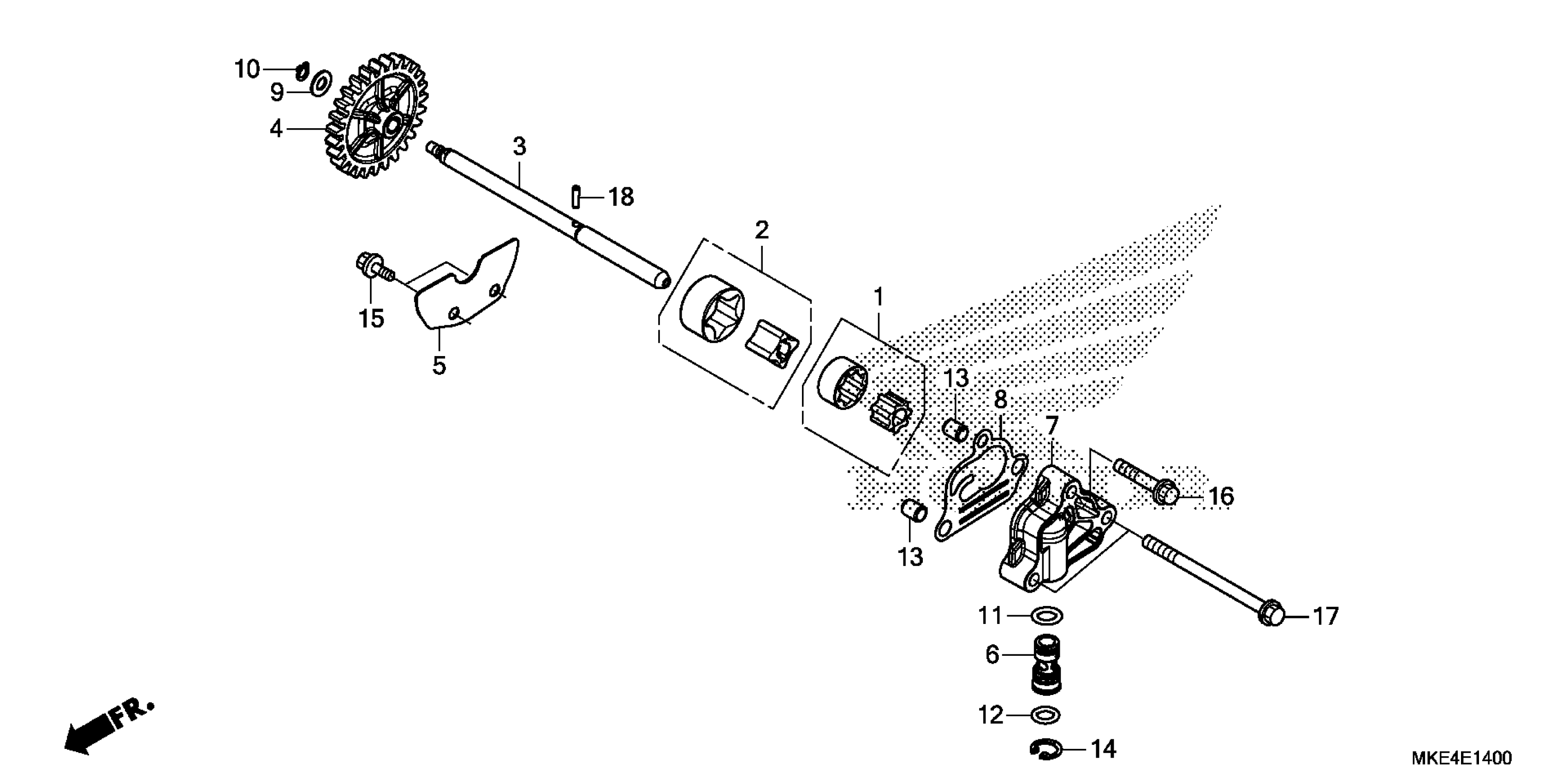

Honda CRF450RXAC (18) CRF450RX, JPN, VIN# JH2PE07C-JK100001 OIL PUMP Diagram

ROTOR SET, OIL PUMP

15021-399-000

$46.31

ROTOR SET, OIL PUMP

15021-MKE-A00

$30.30

SHAFT, OIL PUMP

15111-MKE-A00

$72.70

GEAR, OIL PUMP DRIVEN (27T)

15130-MKE-A00

$54.16

GUIDE PLATE, OIL PUMP GEAR

15202-MKE-A00

$3.51

VALVE ASSY., RELIEF

15220-MKE-A00

$38.07

COVER, OIL PUMP

15310-MKE-A00

$64.80

GASKET, OIL PUMP COVER

15351-MKE-A01

$1.49

WASHER (6MM)

90443-MEL-000

$2.39

CIRCLIP (6MM)

90603-MKE-A00

$1.92

O-RING (8.5X1.7)

90751-GK1-003

$2.70

O-RING (9.8X1.9) (Honda Code 1869478)

91305-PE2-003

$2.45

PIN A, DOWEL (8X10)

94301-08100

$2.25

CIRCLIP (INNER) (14MM)

94520-14000

$1.49

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

BOLT, FLANGE (6X85) (Honda Code 2545317)

95701-06085-00

$1.64

ROLLER (3X11.8)

96220-30118

$3.69
