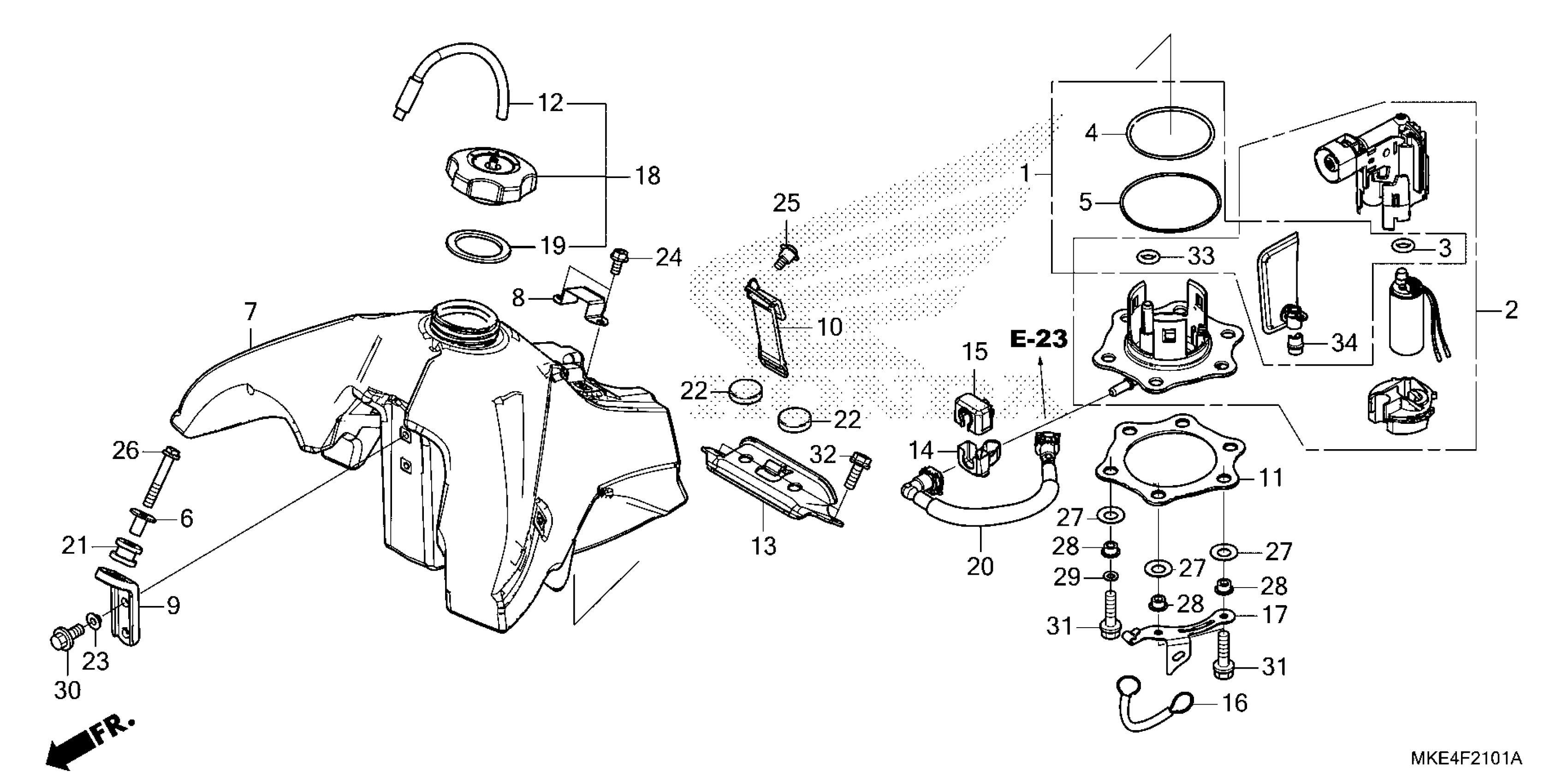

Honda CRF450RXAC (17) CRF450RX, JPN, VIN# JH2PE07C-HK000001 TO JH2PE07C-HK099999 FUEL TANK (2) Diagram

#

Description
Price

1

FILTER KIT, FUEL

06160-MEN-A50

$80.94

2

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE)

16700-MEN-A52

$334.46

3

O-RING (8.6X1.9)

16702-KPC-D50

$0.51

4

O-RING (3.7X73.9)

16711-MEN-A30

$11.18

5

O-RING (2.4X88.4)

16712-MEN-A30

$10.17

6

COLLAR, TANK SETTING

17509-KZ3-B00

$8.30

7

TANK, FUEL

17510-MKE-A10

$868.91

8

STAY, SEAT HOOK

17513-MKE-A10

$5.13

9

STAY, FR. FUEL TANK

17516-MKE-A10

$7.37

10

BAND, RR. TANK

17517-MKE-A10

$13.34

11

PLATE, FUEL PUMP

17519-MEN-A30

$17.09

12

TUBE, FUEL CAP BREATHER

17521-MEN-A30

$5.59

13

STAY, RR. TANK

17525-MKE-A10

$25.74

14

COVER, FUEL CONNECTOR

17575-KRN-A90

$6.60

15

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.62

16

CABLE, FUEL TANK STOPPER

17577-MEN-A30

$7.13

17

GUIDE, STOPPER CABLE

17578-MKE-A11

$25.46

18

CAP ASSY., FUEL TANK

17620-MEN-A30

$84.22

19

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.60

20

HOSE, FUEL FEED

17630-MKE-A01

$72.07

21

RUBBER, MUFFLER

18334-ML3-680

$3.71

22

RUBBER, SEAT STOPPER

77211-965-000

$8.01

23

COLLAR

84706-415-000

$2.16

24

BOLT, FLANGE (5X10)

90002-892-000

$1.31

25

SCREW (5X12)

90105-MEN-730

$1.54

26

BOLT (6X30)

90108-MEN-A60

$2.43

27

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.46

28

COLLAR, FUEL PUMP

90504-MKE-A00

$6.19

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

29

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

30

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

31

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

32

BOLT, FLANGE (6X16)

96300-06016-00

Unavailable

33

O-RING (10X2.4)

16702-KTR-940

$5.37

34

RUBBER, STOPPER

16735-MEN-A51

$7.31
