Description

Price

1

COIL ASSY., IGNITION

30500-MKE-A01

$68.97

2

CAP ASSY., NOISE SUPPRESSOR

30700-MKE-A01

$56.26

3

RECTIFIER ASSY., REGULATE

31600-KZL-931

$176.46

4

BACK PLATE, REGULATOR

31610-MKE-AF0

$11.13

5

WIRE HARNESS

32100-MKE-AF0

$431.44

7

STAY, FR. CONNECTOR

32110-MKE-AF0

$9.43

8

STAY, HARNESS (L)

32125-MKE-AF0

$7.69

9

CAP, DUMMY (WPC 4P 090 M) (RED)

32606-K44-V01

$7.31

10

RELAY (2P) (WPC)

38580-MKE-A61

$45.67

11

PGM-FI UNIT This part replaces 38770-MKE-AH1.

38770-MKE-AH2

$716.49

11

PGM-FI UNIT

38770-MKE-AH2

$716.49

12

SUSPENSION, PGM-FI UNIT

38771-MKE-AF0

$21.18

13

BOLT, FLANGE (6X10)

90020-GHB-610

$2.11

14

BOLT, FLANGE (6X22)

90020-GHB-670

$2.33

15

BOLT, FLANGE (6X14)

90025-GHB-630

$2.25

16

SCREW, PAN (6X12)

90106-KSE-000

$1.97

17

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

18

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.73

19

HOLDER, CONNECTOR (128.6MM) (NATURAL)

91531-SR3-003

$5.66

20

CLIP, CONNECTOR (NATURAL)

91533-S04-003

$3.90

21

CLIP, HARNESS BAND (157.7MM) (BLACK)

91540-S7S-003

$5.80

22

CLIP, HARNESS BAND (158.9MM) (BLACK)

91542-SWY-003

$1.49

23

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.03

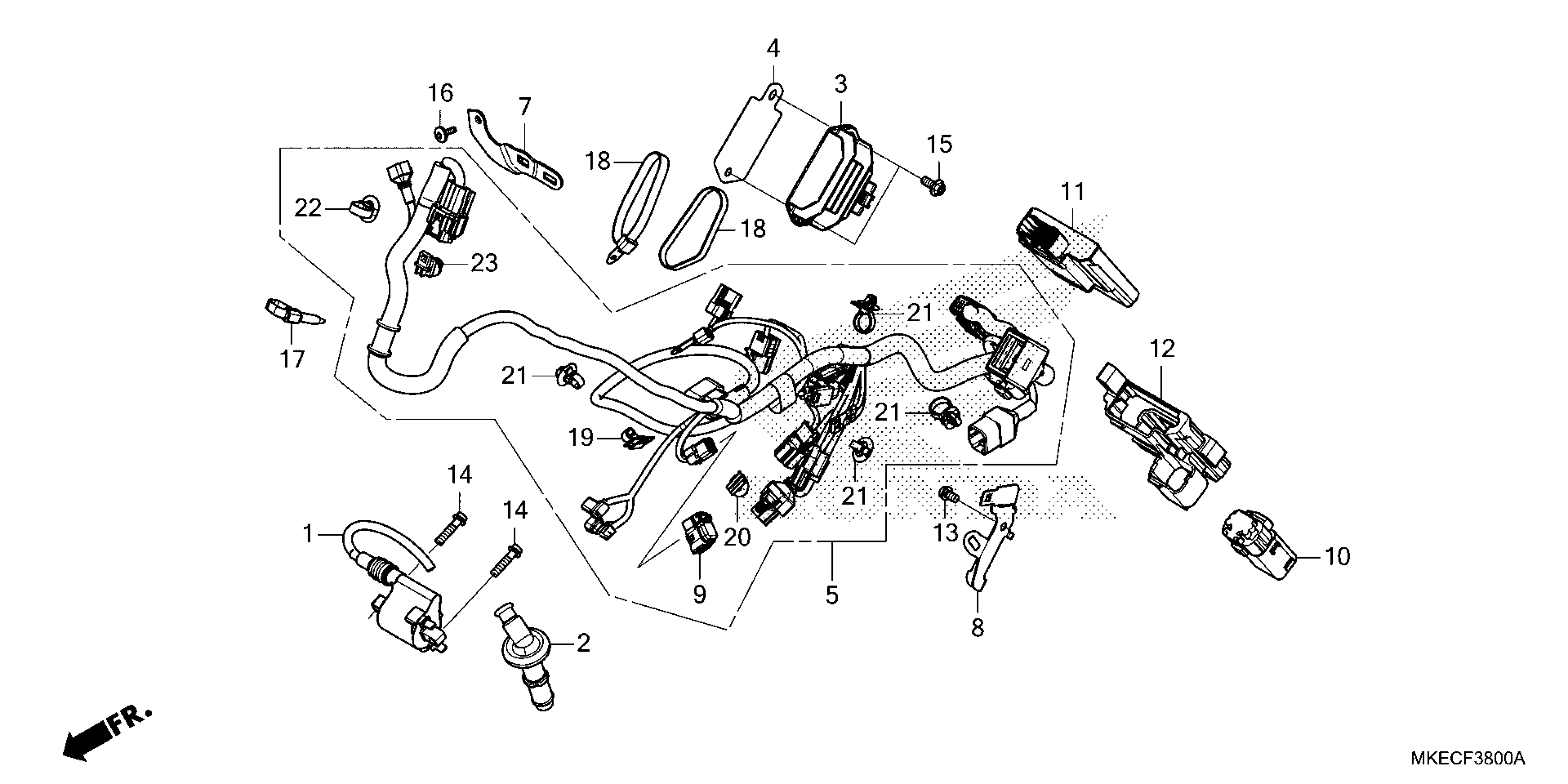

Honda CRF450RWEAC (22) MOTORCYCLE, JPN, VIN# JH2PE113-NK300001 WIRE HARNESS Diagram
