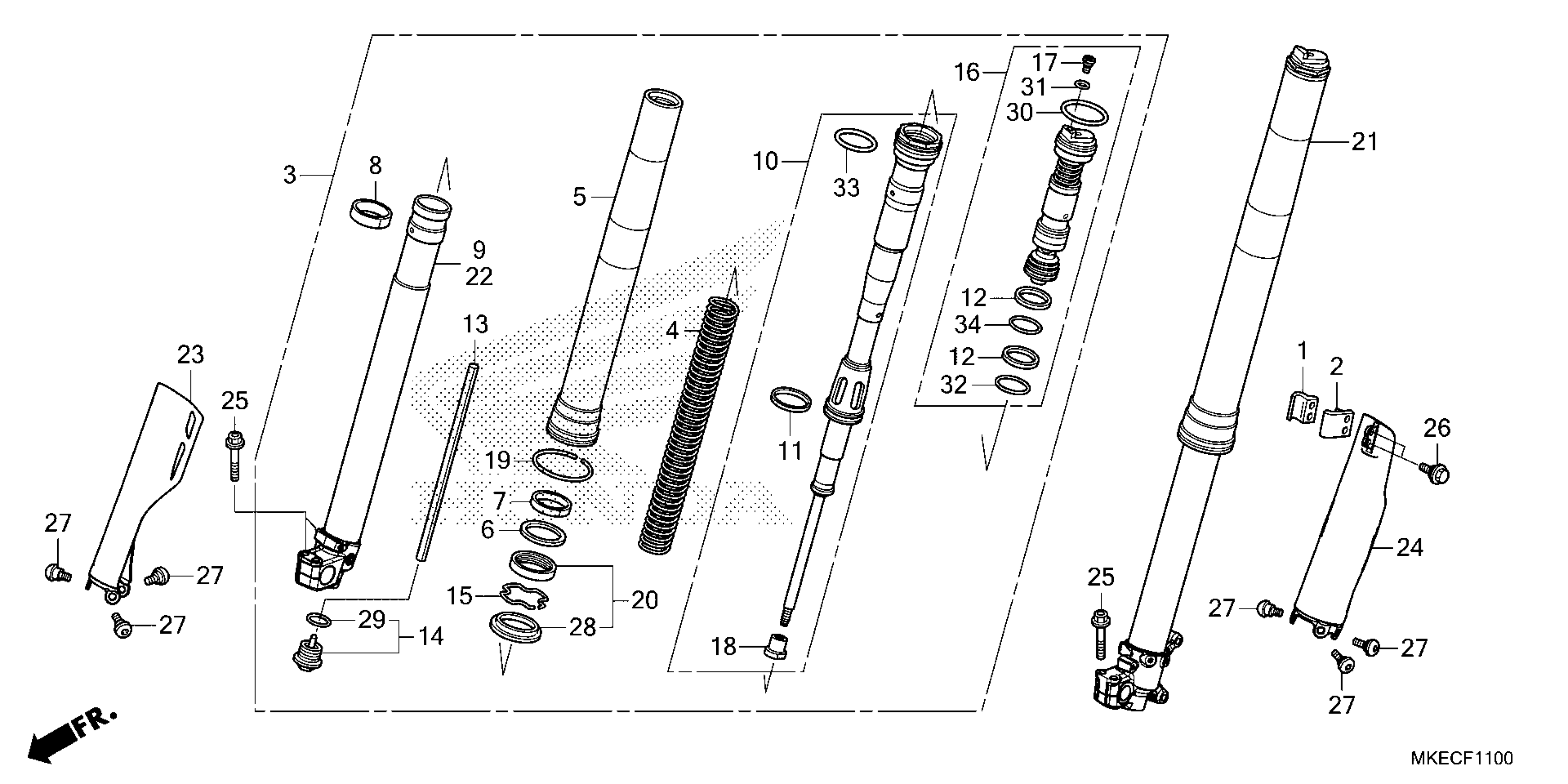

Honda CRF450RWEAC (22) MOTORCYCLE, JPN, VIN# JH2PE113-NK300001 FRONT FORK Diagram

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$6.36

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.69

FORK SET, R. FR. (TYPE1) (WL)

51600-MKE-AH0ZA

$1,740.46

FORK SET, R. FR. (TYPE1) (WL)

51600-MKE-AH1ZA

$2,276.20

SPRING, FR. FORK (4.8N/MM) | (Optional).

51401-MKE-A01

$111.39

SPRING, FR. FORK (5.2N/MM) | (Optional).

51401-MKE-A61

$113.00

SPRING, FR. FORK (5.0N/MM)

51401-MKE-A71

$111.59

TUBE (OUTER)

51410-MKE-A91

$624.16

RING, BACK-UP

51412-MKE-A71

$7.87

BUSH, GUIDE

51414-KRN-A91

$13.08

BUSH, SLIDER

51415-KRN-A91

$12.88

PIPE, R. SLIDE

51420-MKE-AH1

$626.72

DAMPER, FR.

51430-MKE-AF2

$406.57

BUSH B, SLIDER

51431-MKE-A01

$12.33

BUSH, SLIDER

51436-KRN-A91

$13.72

COLLAR, REBOUND NEEDLE

51438-MKE-AF1

$11.62

BOLT, CENTER

51440-KRN-A91

$39.07

RING, OIL SEAL STOP

51447-KRN-A91

$3.74

BOLT ASSY., FR. FORK

51450-MKE-AH1

$209.20

BOLT ASSY., FR. FORK

51450-MKE-AH2

$207.07

BOLT, PLUG

51456-KZ3-J41

$6.21

NUT, LOCK

51458-KRN-A91

$11.79

RING, WEAR

51476-KRN-A91

$7.72

SEAL SET, FR. FORK

51490-KRN-A91

$26.42

FORK SET, L. FR. (TYPE1) (WL)

51700-MKE-AH0ZA

$1,740.46

FORK SET, L. FR. (TYPE1) (WL)

51700-MKE-AH1ZA

$2,276.20

PIPE, L. SLIDE

51520-MKE-AH1

$626.72

PROTECTOR SET, R. FR. FORK (TYPE1) (WL) (AVAIL.THROUGH CONTROLLED PART ORDER- SEE PIB#17170 TO ORDER)

51710-MKE-AH0ZA

$144.49

PROTECTOR SET, L. FR. FORK (TYPE1) (WL) (AVAIL.THROUGH CONTROLLED PART ORDER- SEE PIB#17170 TO ORDER)

51720-MKE-AH0ZA

$133.90

BOLT, FLANGE (8X40)

90108-KZ4-J40

$2.13

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.70

BOLT, PROTECTOR

90113-MAC-780

$3.53

DUST SEAL

91254-KRN-A91

$12.71

O-RING (22.1X1.9)

91257-KRN-A91

$2.51

O-RING (42.2X2.4)

91258-GF4-003

$5.90

O-RING (3.5X1.5)

91301-KZ3-711

$2.70

O-RING (35.5X2)

91302-MA3-661

$2.65

O-RING (47.2X2.4)

91351-KRN-A41

$3.77

O-RING (32.7X3.5)

91351-MKE-AF1

$3.16
