Description

Price

1

RUBBER, TANK SIDE MOUNTING

17522-MEN-730

$6.58

2

RUBBER, RR. TANK MOUNTING

17526-MKE-AF0

$4.39

3

BAND (BLACK 3.5X140)

35701-MG9-950

$1.89

4

FRAME SET

50010-MKE-AF0

$2,608.90

5

FRAME, RR.

50200-MKE-AF0

$631.11

6

GUARD, ENGINE

50357-MKE-AF0

$28.78

7

PLATE, R. FR. HANGER

50405-MKE-AF0

$11.39

8

PLATE, L. FR. HANGER

50406-MKE-AF0

$11.39

9

PLATE, R. HEAD HANGER

50407-MKE-AF0

$62.62

10

PLATE, L. HEAD HANGER

50408-MKE-AF0

$62.62

11

BOLT, FLANGE (10X30)

90102-MEN-A30

$3.65

12

BOLT, FLANGE (8X28) (SH)

90102-MKE-A00

$3.06

13

BOLT, FLANGE (10X134) (SH)

90102-MKE-AF0

$6.98

14

BOLT, FLANGE (10X121.5) (SH)

90104-MKE-AF0

$7.39

15

BOLT, FLANGE (8X25) (SH)

90109-MKE-A00

$2.92

16

BOLT, FLANGE (8X24)

90122-MKE-AF0

$3.20

17

BOLT (8X18)

90123-MEN-730

$1.97

18

BOLT, SPECIAL (6MM)

90126-MKE-A00

$3.06

19

NUT, FLANGE (10MM)

90302-KZ3-J40

$2.72

20

WASHER (10MM)

90410-HC4-000

$3.81

21

TY-RAP, CABLE

91560-MS8-600

$2.38

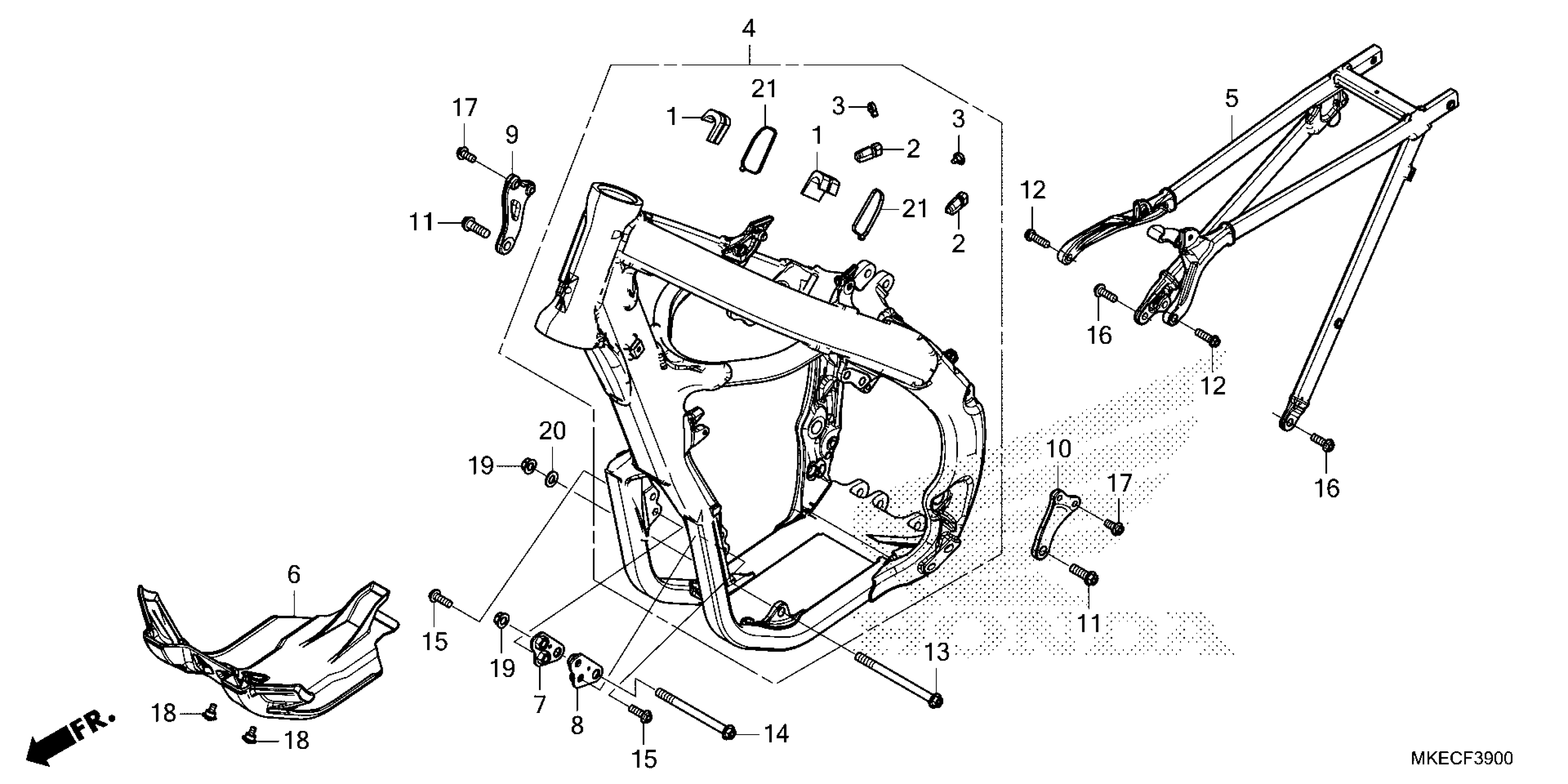

Honda CRF450RWEAC (22) MOTORCYCLE, JPN, VIN# JH2PE113-NK300001 FRAME Diagram
