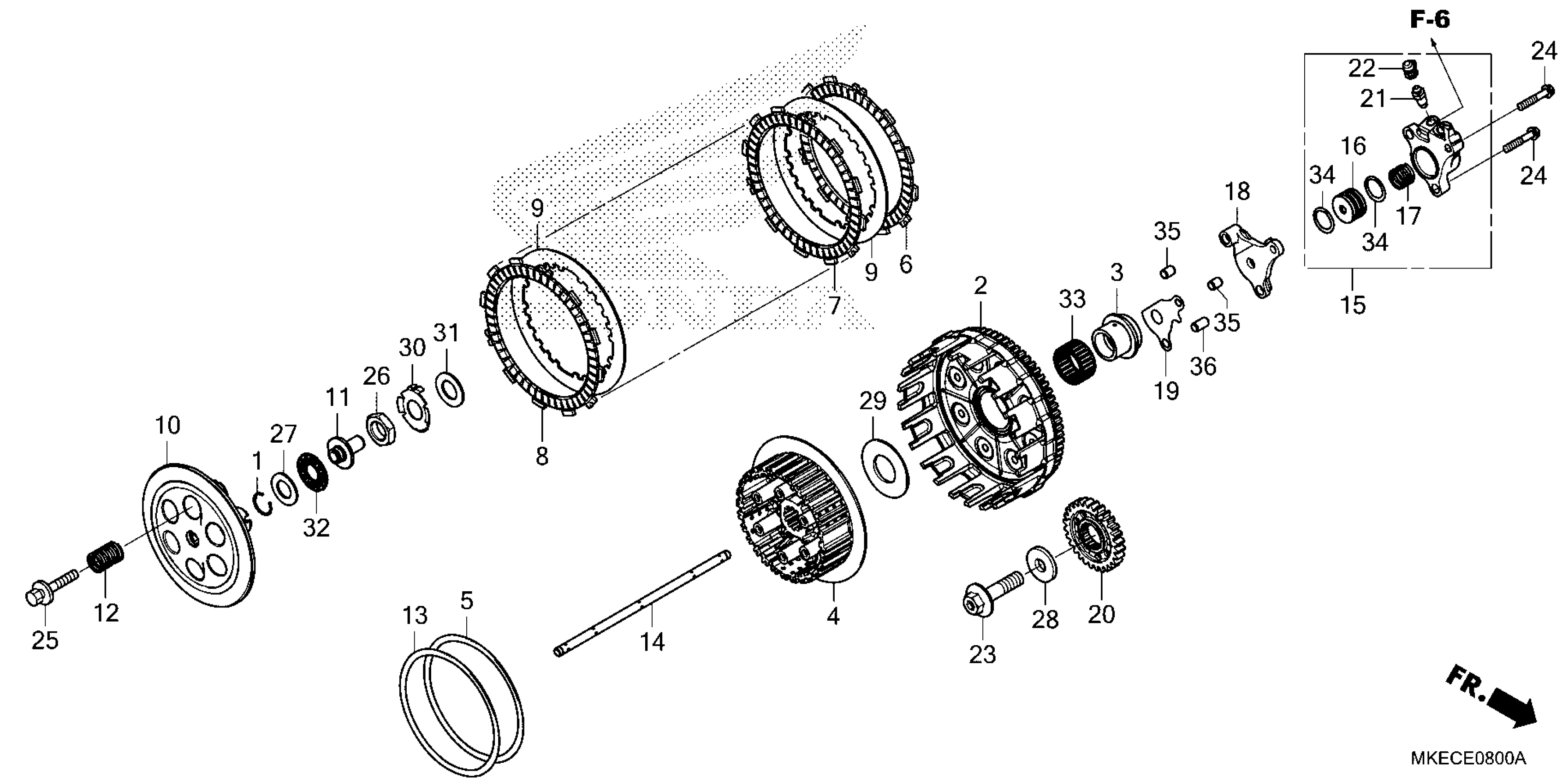

Honda CRF450RWEAC (22) MOTORCYCLE, JPN, VIN# JH2PE113-NK300001 CLUTCH Diagram

#

Description
Price

1

CLIP, PISTON PIN (10MM)

13115-147-000

$2.04

3

GUIDE, CLUTCH (OUTER)

22116-MKE-AF0

$17.34

4

CENTER, CLUTCH

22120-MKE-AF0

$93.79

5

SEAT, JUDDER SPRING

22125-MBN-670

$7.73

6

DISK, CLUTCH FRICTION

22201-MBN-670

$18.42

7

DISK B, CLUTCH FRICTION

22201-MEN-670

$13.49

8

DISK, CLUTCH FRICTION

22201-MEN-A10

$14.04

9

PLATE B, CLUTCH

22321-KZ3-690

$14.78

10

PLATE, CLUTCH PRESSURE

22351-MKE-A70

$58.22

11

PIECE, CLUTCH LIFTER

22352-MKE-A70

$39.85

12

SPRING, CLUTCH

22401-MKE-AF0

$4.81

13

SPRING, JUDDER

22402-MBN-670

$19.59

14

ROD, CLUTCH LIFTER

22850-MKE-AF0

$57.03

15

CYLINDER ASSY., SLAVE

22860-MKE-AF1

$199.87

16

PISTON, SLAVE CYLINDER

22862-MKE-AF1

$48.18

17

SPRING, SLAVE CYLINDER

22863-MKE-AF1

$4.04

18

HOLDER, SLAVE CYLINDER

22866-MKE-AF0

$27.84

19

GASKET B, SLAVE CYLINDER

22867-MKE-AF0

$5.18

20

GEAR, PRIMARY DRIVE (28T)

23121-MKE-A00

$79.79

21

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

22

CAP, BLEEDER

43353-461-771

Unavailable

23

BOLT, SPECIAL (12X47)

90013-MEY-670

$6.71

24

BOLT, FLANGE (6X32)

90020-GHB-710

$2.46

25

BOLT-WASHER (6X35)

90024-MEN-A70

$2.24

26

NUT (18MM)

90235-MEN-A30

$4.90

27

WASHER (12.1X25X1)

90401-MKE-A70

$2.15

28

WASHER, PLAIN (12MM)

90402-KW6-960

$5.30

29

WASHER (23X43X3)

90421-MKE-A50

$5.13

30

WASHER, LOCK (18MM)

90461-KZ3-J10

$5.96

31

WASHER (18X32X2)

90501-ML3-910

$4.17

32

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$11.56

33

BEARING, NEEDLE (30X35X17)

91022-MB0-003

$34.26

34

O-RING (21.1X2.45)

91301-MKE-AF1

$1.97

35

PIN A, DOWEL (8X10)

94301-08100

$2.76

36

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.76
