Description

Price

1

SPOKE SET, RR. (INSIDE)

06420-MEY-000

$4.85

2

SPOKE SET, RR. (OUTSIDE)

06421-MEY-000

$4.85

3

SPROCKET, FINAL DRIVEN (51T)

41201-MKE-A50

$95.89

4

RETAINER, RR. WHEEL BEARING

41231-KZ4-J20

$19.28

5

AXLE, RR. WHEEL

42301-KRN-A30

$47.01

6

COLLAR, L. RR. AXLE

42305-MKE-A50

$21.38

7

COLLAR, R. RR. AXLE

42306-KZ4-J20

$19.28

8

COLLAR, RR. WHEEL SIDE

42311-MKE-A60

$27.12

9

COLLAR, RR. WHEEL DISTANCE

42620-MKE-A60

$27.07

10

HUB SUB-ASSY., RR.

42635-MKE-AF0

$402.58

11

WHEEL SUB-ASSY., RR.

42650-MKE-A50

$859.98

12

RIM, RR. WHEEL (18X2.15)

42701-MKE-A51

$284.21

13

TIRE, RR. (120/80-18 M/C 62P) (IRC)

42711-KZZ-904

$93.66

14

TUBE, TIRE

42712-KT1-673

$37.60

15

FLAP, TIRE (IRC)

42713-KZZ-901

$4.65

16

CAP, VALVE

42714-KA3-710

$10.46

17

CAP, RIM HOLE

42717-329-000

$4.21

18

DISK, RR. BRAKE

43351-K95-AG1

$160.39

19

BOLT, DISK (6X19)

90105-MAC-680

$4.99

20

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

21

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

22

NUT, U (22MM)

90305-KZ4-J20

$8.96

23

NUT, U (8MM) (FUSE RASHI)

90309-ML3-791

$4.35

24

WASHER (22X35X2)

90401-KZ4-J20

$2.89

25

WASHER (8MM)

90465-MC4-000

$2.51

26

BEARING, RADIAL BALL (69052RS)

91051-KZ4-J21

$18.42

27

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

28

DUST SEAL (32X43X7)

91251-KZ4-J21

$4.94

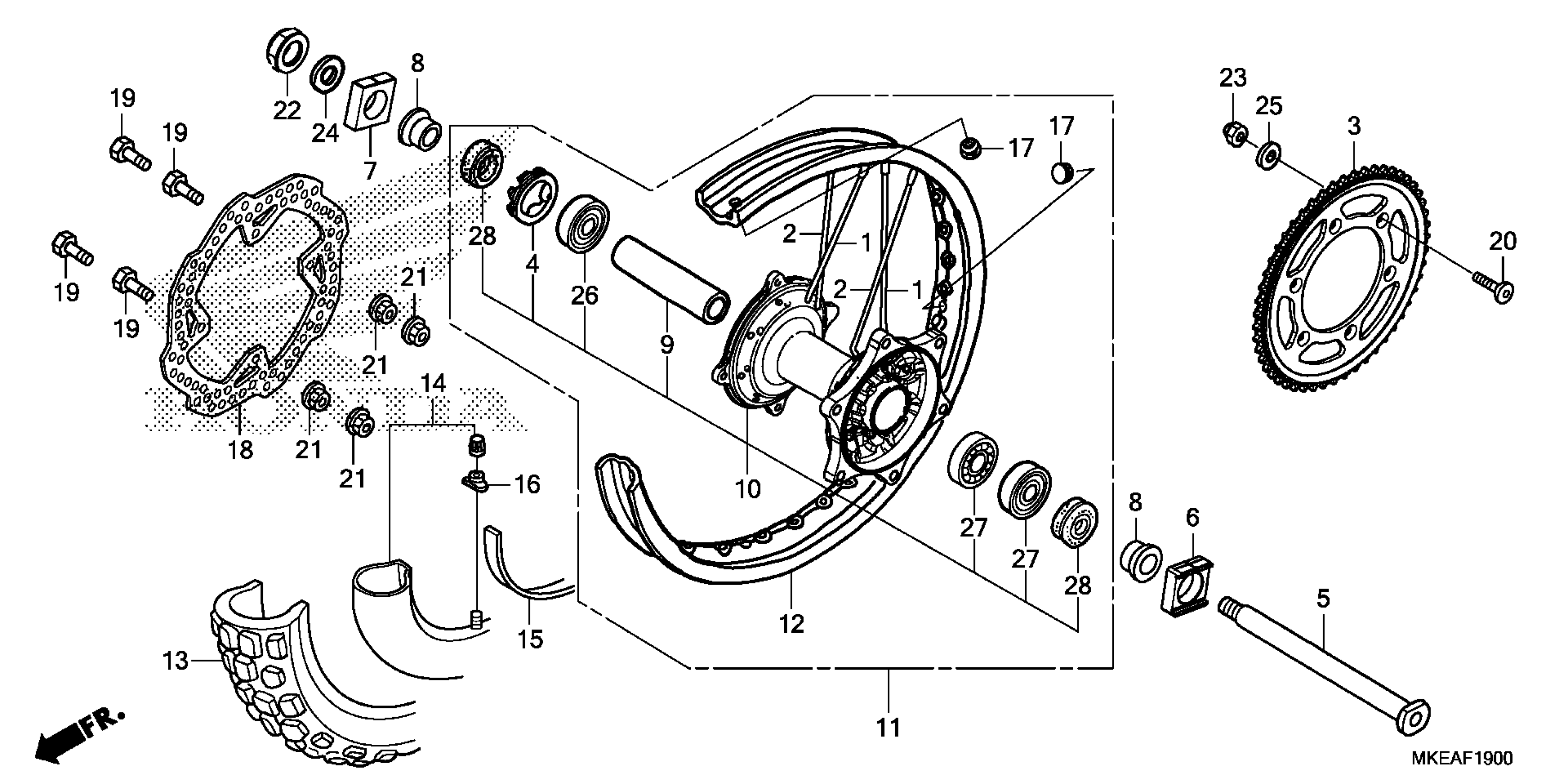

Honda CRF450RLAC (26) MOTORCYCLE, JPN, VIN# JH2PD111-TK700001 TO JH2PD111-TK799999 REAR WHEEL Diagram
