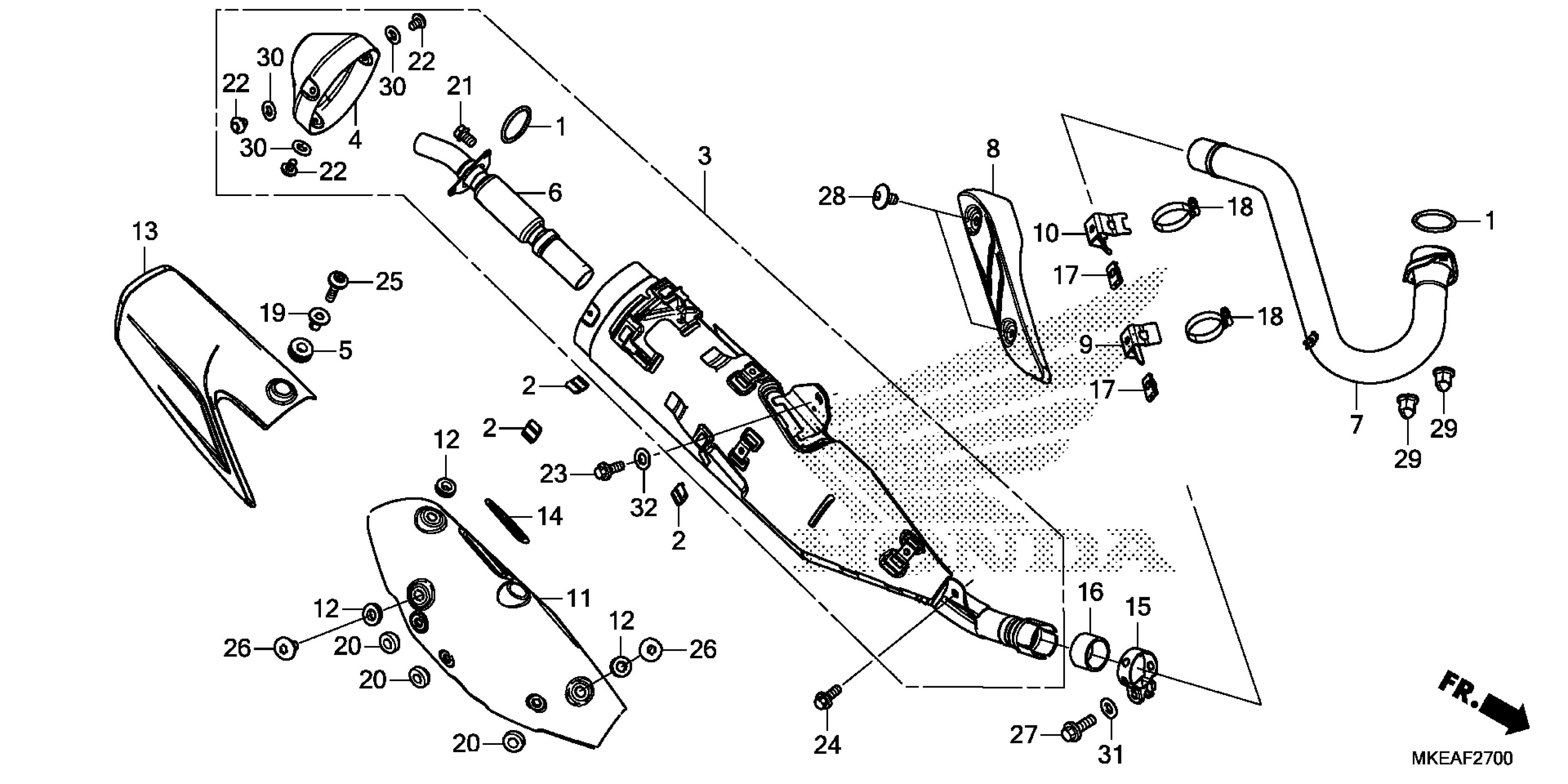

Honda CRF450RLAC (26) MOTORCYCLE, JPN, VIN# JH2PD111-TK700001 TO JH2PD111-TK799999 MUFFLER Diagram

GASKET, EX. PIPE

18291-MEB-670

$4.92

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

MUFFLER ASSY.

18300-MKE-A50

$1,973.15

CAP, TAIL

18306-MKE-A50

$117.05

RUBBER, PROTECTOR

18316-KFT-620

$2.48

ARRESTER, SPARK

18317-MKE-A50

$91.89

PIPE, EX.

18320-MKE-A50

$193.46

PROTECTOR, EX. PIPE

18323-MKE-A00

$64.15

STAY, EX. PIPE PROTECTOR

18327-KRN-A80

$6.38

STAY, RR. EX. PIPE PROTECTOR

18328-MKE-A50

$9.11

GUARD, HEAT

18340-MKE-A50

$53.28

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

COVER, RR. MUFFLER

18365-MKE-A50

$54.29

GUARD, RR. HEAT (A)

18366-MKE-A50

$1.49

BAND, L. EX. PIPE (RIGHT SIDE)

18374-ML0-000

$28.48

GASKET, EX.

18392-HA7-710

$15.90

NUT, SPRING (6MM)

19508-KA3-710

$5.72

CLAMP, R. RADIATOR HOSE

19509-MM5-003

$13.58

COLLAR, COVER MOUNTING

83505-KGB-610

$2.84

RUBBER, SIDE COVER (PD)

83512-KA4-700

$4.57

BOLT, FLANGE (6X10) This part replaces 90101-KCE-000.

96001-06010-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, SPECIAL (5X12)

90101-MKE-A00

$1.95

BOLT, FLANGE (8X25) (SH)

90109-MKE-A50

$3.70

BOLT, FLANGE (8X20) (SH)

90110-MKE-A50

$3.66

BOLT, SPECIAL (6X22)

90112-MKE-A50

$3.02

SCREW, PAN (6X12)

90113-KTA-920

$2.20

BOLT, FLANGE (8X32) (SH)

90124-MKE-A50

$3.21

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.80

NUT, CAP (8MM)

90304-ME1-670

$5.94

WASHER, PLAIN (5MM)

94101-05400

$1.49

WASHER, PLAIN (8MM)

94102-08400

$1.49

WASHER, PLAIN (8MM)

94103-08400

$1.49
