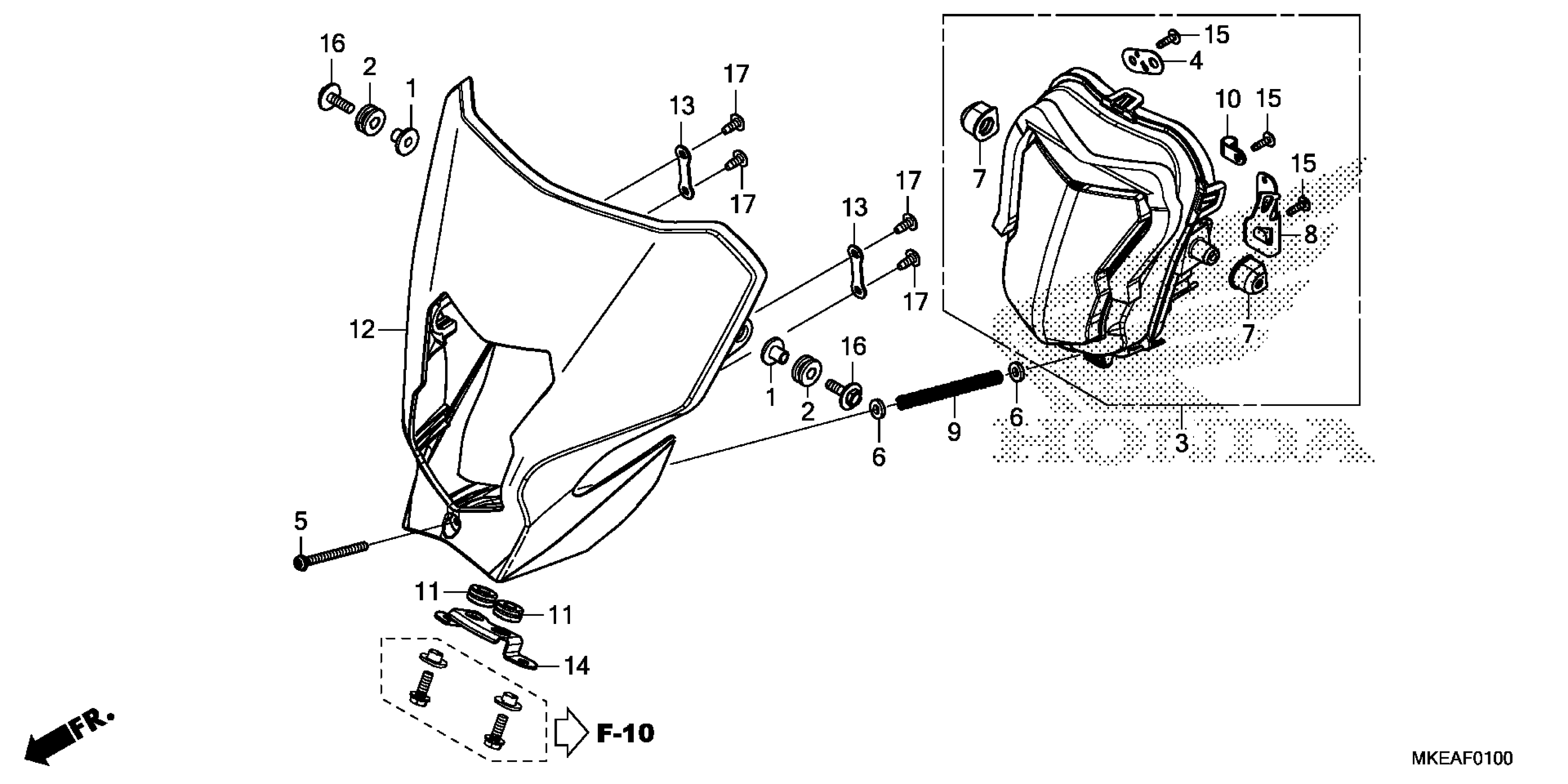

Honda CRF450RLAC (25) MOTORCYCLE, JPN, VIN# JH2PD111-SK600001 TO JH2PD111-SK699999 HEADLIGHT Diagram

COLLAR, AIR CLEANER MOUNTING

17239-MGS-D30

$3.66

RUBBER, PROTECTOR GASKET

18294-KSV-J00

$1.78

HEADLIGHT ASSY.

33100-MKE-A51

$780.48

STAY A

33102-MKE-A51

$3.64

SCREW, PAN (5X70)

33103-MKE-A50

$6.58

WASHER, PLAIN (5MM)

33104-MKE-A50

$0.80

CAP, RUBBER

33105-MKE-A51

$3.90

STAY B

33106-MKE-A51

$10.80

SPRING, BEAM ADJUST

33107-MKE-A50

$4.62

CLAMP, WIRE

33116-KPP-T01

$2.07

GROMMET A, TUBE

36037-657-000

$5.73

GROMMET A, TUBE This part replaces 36043-657-000.

36037-657-000

$5.73

VISOR SET, FR. (TYPE1) (WL)

61300-MKE-AK0ZA

$106.38

PLATE, HEADLIGHT UNIT

61317-MKE-A50

$2.12

STAY, HEADLIGHT (LOWER)

61320-MKE-A50

$11.65

SCREW, SPECIAL (4X14)

90102-MKE-A51

$2.12

BOLT-WASHER (6X20)

93404-06020-07

$1.48

SCREW, TAPPING (5X12)

93903-25220

$0.83
