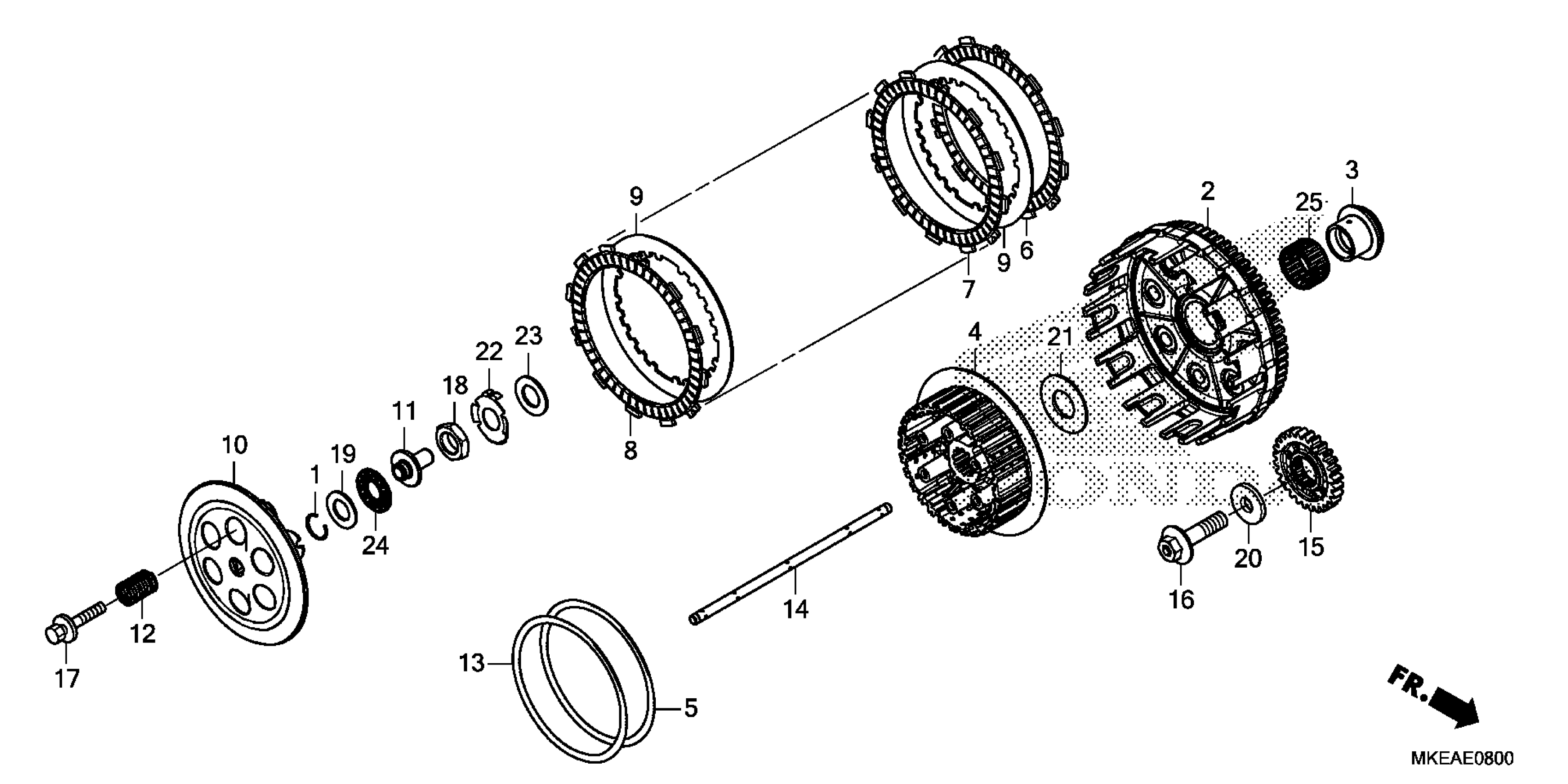

Honda CRF450RLAC (25) MOTORCYCLE, JPN, VIN# JH2PD111-SK600001 TO JH2PD111-SK699999 CLUTCH Diagram

CLIP, PISTON PIN (10MM)

13115-147-000

$2.01

CLUTCH OUTER

22100-MKE-A50

$332.36

GUIDE, CLUTCH (OUTER)

22116-MKE-A50

$14.74

CENTER, CLUTCH

22120-MKE-A00

$86.65

SEAT, JUDDER SPRING

22125-MBN-670

$7.54

DISK, CLUTCH FRICTION

22201-MBN-670

$18.01

DISK B, CLUTCH FRICTION

22201-MEN-670

$13.19

DISK, CLUTCH FRICTION

22201-MEN-A10

$13.73

PLATE B, CLUTCH

22321-MKE-A00

$12.13

PLATE, CLUTCH PRESSURE

22351-MKE-A70

$57.38

PIECE, CLUTCH LIFTER

22352-MKE-A50

$41.97

SPRING, CLUTCH

22401-MKE-A50

$4.88

SPRING, JUDDER

22402-MBN-670

$19.15

ROD, CLUTCH LIFTER

22850-MKE-A50

$55.32

GEAR, PRIMARY DRIVE (28T)

23121-MKE-A00

$73.10

BOLT, SPECIAL (12X47)

90013-MEY-670

$6.54

BOLT-WASHER (6X35)

90024-MEN-A70

$2.20

NUT (18MM)

90235-MEN-A30

$4.78

WASHER (12.1X25X1)

90401-MKE-A70

$2.12

WASHER, PLAIN (12MM)

90402-KW6-960

$5.17

WASHER (23X43X3)

90421-MKE-A50

$5.06

WASHER, LOCK (18MM)

90461-KZ3-J10

$5.81

WASHER (18X32X2)

90501-ML3-910

$4.07

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$11.31

BEARING, NEEDLE (28X33X16.8)

91012-KYJ-901

$5.42
