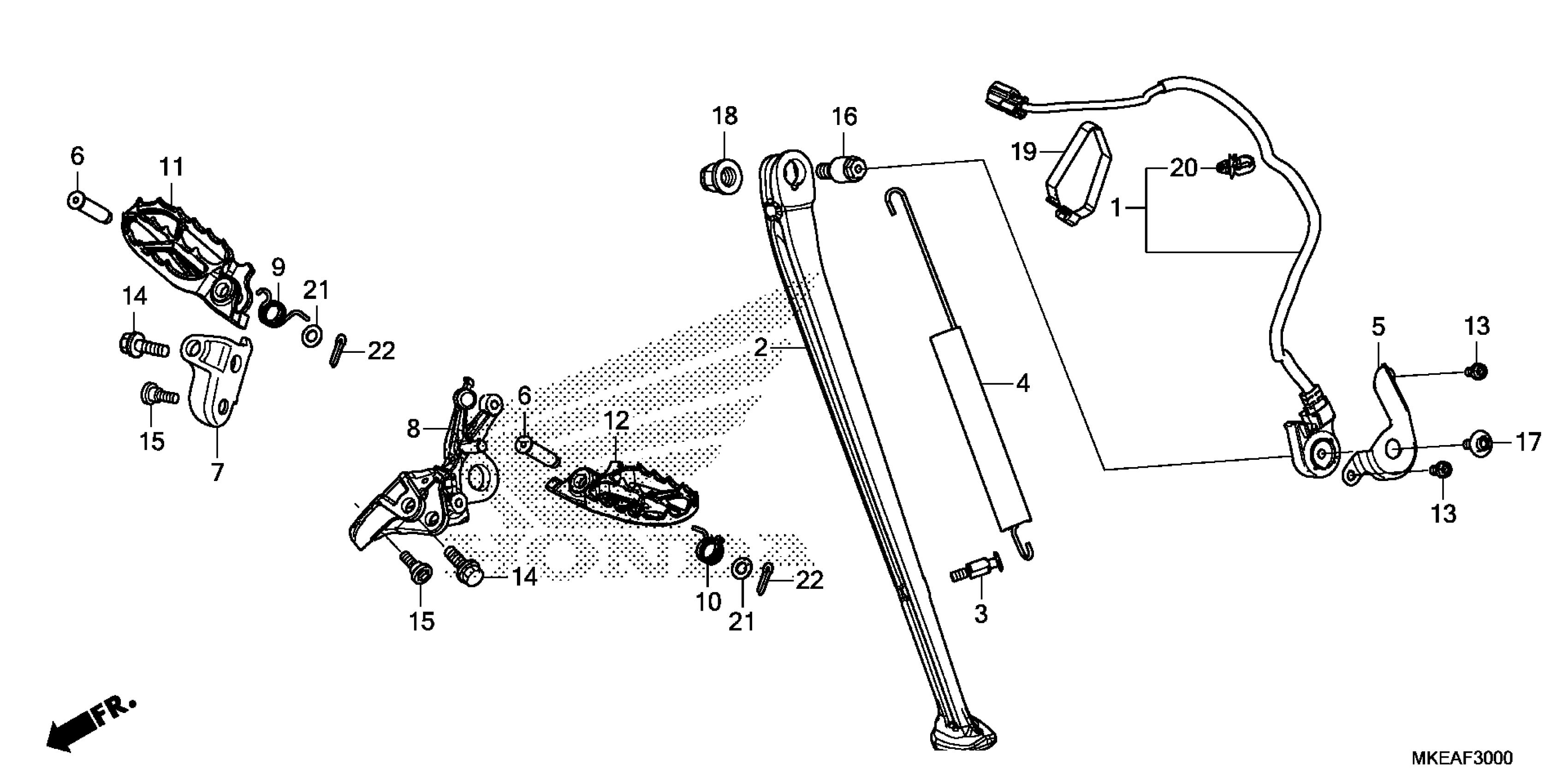

Honda CRF450RLAC (21) MOTORCYCLE, JPN, VIN# JH2PD111-MK200001 TO JH2PD111-MK299999 STEP@STAND Diagram

#

Description
Price

1

SWITCH ASSY., SIDE STAND

35700-MKE-A51

$73.81

2

BAR, SIDE STAND

50530-MKE-A50

$166.74

3

HOOK, SIDE STAND SPRING

50538-MKE-A10

$11.45

4

SPRING ASSY., SIDE STAND

50540-MKE-A50

$19.40

5

GUARD, SIDE STAND SWITCH

50547-MKE-A50

$5.82

6

PIN, STEP JOINT

50603-KZ4-J40

$3.50

7

BRACKET, R. STEP

50610-MEN-B10

$26.50

8

BRACKET, L. STEP

50611-MKE-A50

$156.25

9

SPRING, R. STEP RETURN

50617-KZ4-J40

$3.65

10

SPRING, L. STEP RETURN

50618-KZ4-J40

$3.65

11

ARM, R. STEP

50660-MKE-A70

$44.08

12

ARM, L. STEP

50670-MKE-A70

$44.08

13

BOLT, FLANGE (6X10)

90021-GHB-610

$1.96

14

BOLT, STEP (12MM)

90106-MKE-AJ0

$2.95

15

BOLT, STEP BRACKET

90110-MEN-B10

$2.82

16

BOLT, SIDE STAND PIVOT

90118-MKE-A50

$11.18

17

BOLT, SPECIAL (6X16)

90147-MCE-950

Unavailable

18

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.52

19

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.44

20

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

Unavailable

21

WASHER, PLAIN (8MM)

94102-08800

$0.87

22

PIN, SPLIT (2.5X30) This part replaces 94201-25150.

94201-25300

$1.01

22

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.01

22

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.01

22

PIN, COTTER (2.5MM)

94201-25300

$1.01
