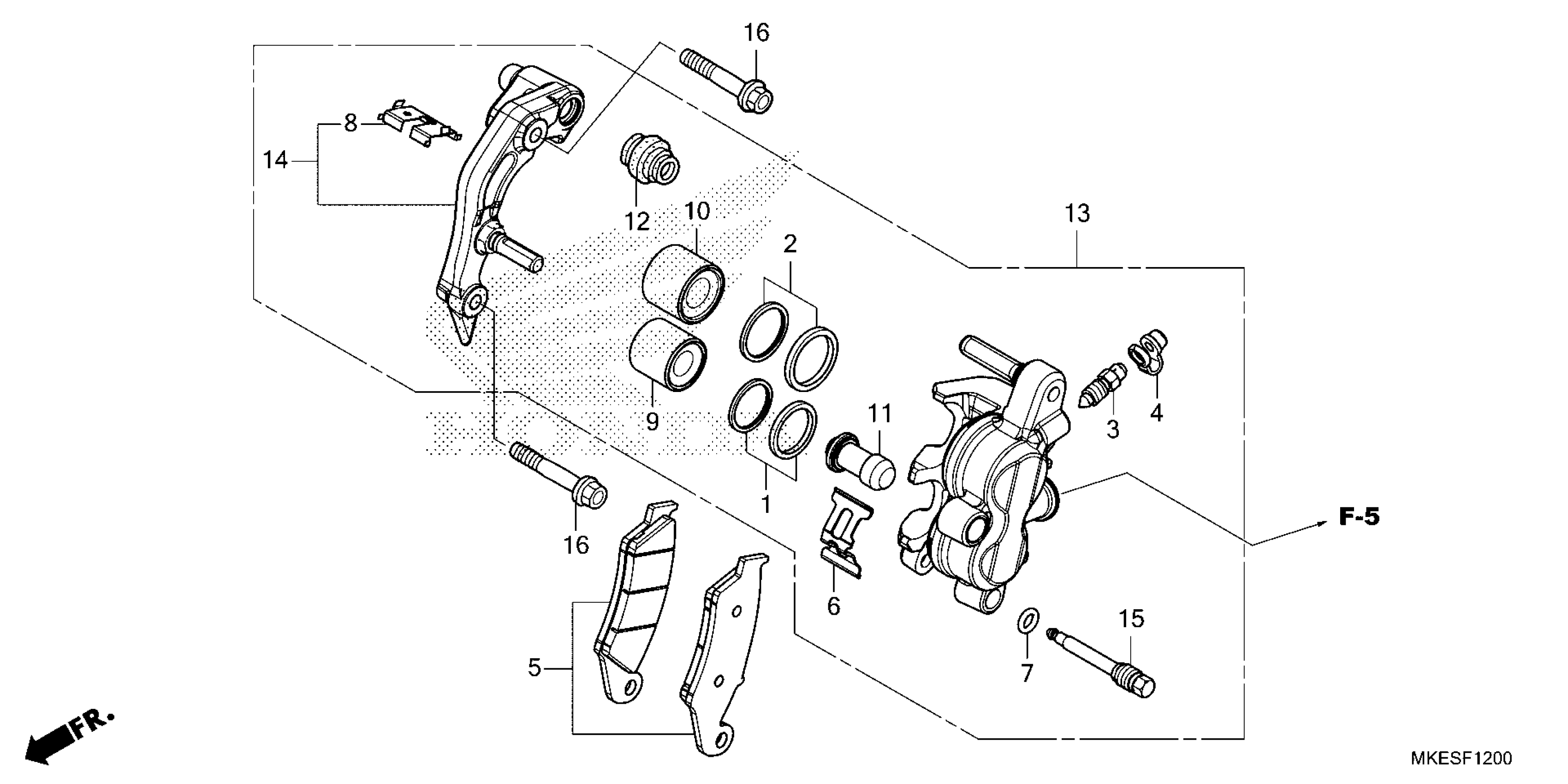

Honda CRF450RAC (26) MOTORCYCLE, JPN, VIN# JH2PE073-TK900001 TO JH2PE073-TK999999 FRONT BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$6.82

SEAL SET, PISTON

06451-166-405

$11.69

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

PAD SET, FR.

45105-MY6-415

$41.03

SPRING, PAD

45108-MKE-A71

$7.38

RING, STOPPER

45111-MAJ-G41

$3.54

RETAINER

45112-MKE-A71

$5.06

PISTON (27MM)

45116-MGE-006

$33.64

PISTON.A.

45117-MN8-701

$22.59

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.07

BOOT B

45133-MA3-006

$5.07

CALIPER SUB-ASSY.

45150-K95-AG1

$165.22

BRACKET SUB-ASSY., L. FR.

45190-MKE-A71

$122.12

PIN, HANGER

45215-HP1-006

$4.99

BOLT, FLANGE (8X40)

90110-KZ4-J40

$2.80
