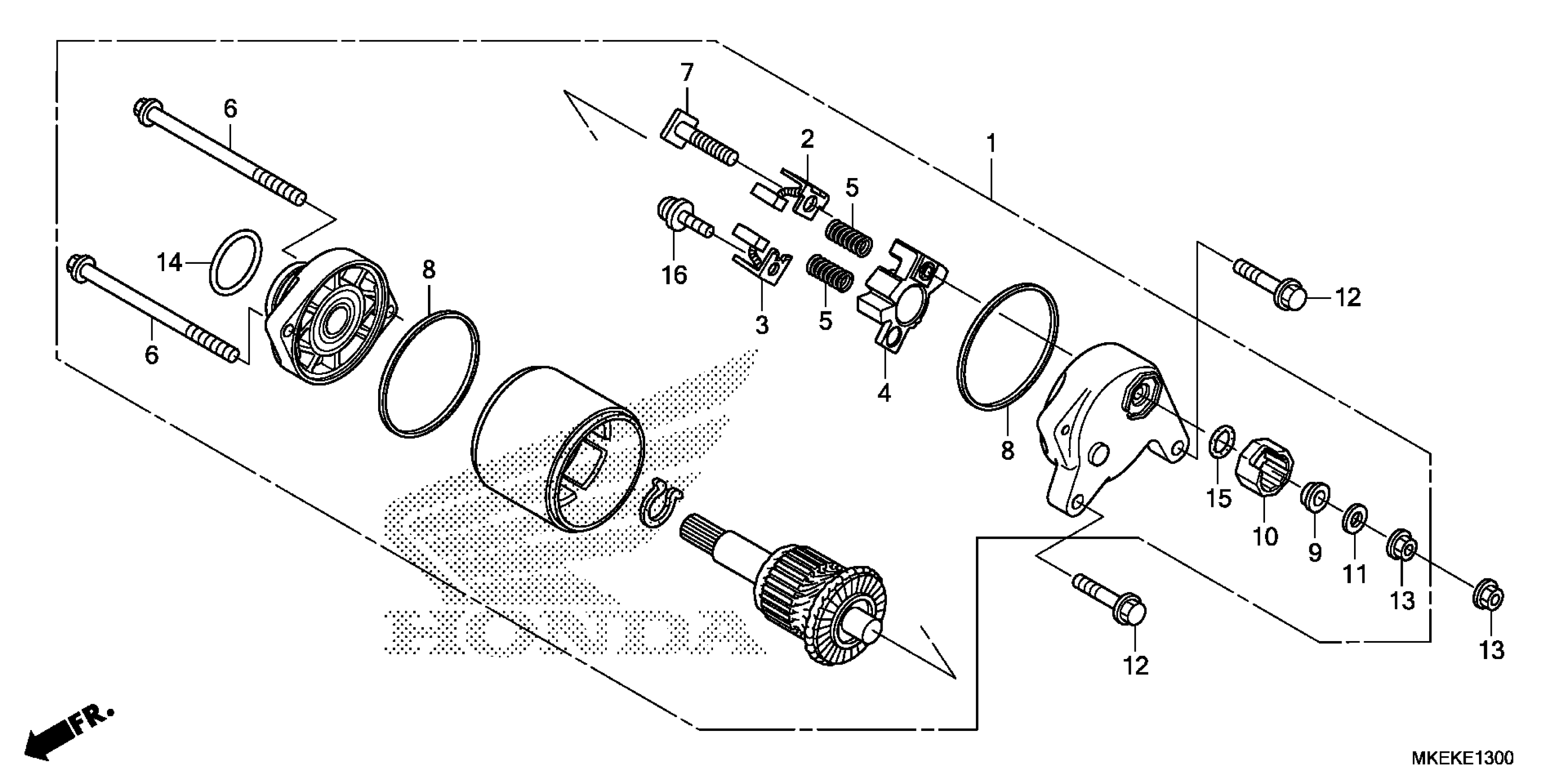

Honda CRF450RAC (19) MOTORCYCLE, JPN, VIN# JH2PE073-KK200001 TO JH2PE073-KK299999 STARTING MOTOR Diagram

STARTER MOTOR ASSY.

31200-MKE-A71

$367.67

BRUSH SET A, CARBON

31201-KPC-D51

$7.45

BRUSH SET B, CARBON

31202-KPC-D51

$8.66

HOLDER, BRUSH

31203-KPC-D51

$7.64

SPRING, CARBON BRUSH (Honda Code 8476798)

31204-MEW-921

$11.33

BOLT SET

31205-KPC-D51

$4.22

BOLT, TERMINAL

31206-MEW-921

$2.67

RING

31207-HP5-601

$1.96

INSULATOR (Honda Code 8476822)

31208-MEW-921

$6.97

STOPPER, TERMINAL (Honda Code 8476830)

31209-MEW-921

$10.35

WASHER

31210-MEW-921

$1.65

BOLT, FLANGE (6X28)

90020-GHB-690

$2.12

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

Unavailable

O-RING (Honda Code 1292184)

91320-MB0-000

$2.20

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.04
