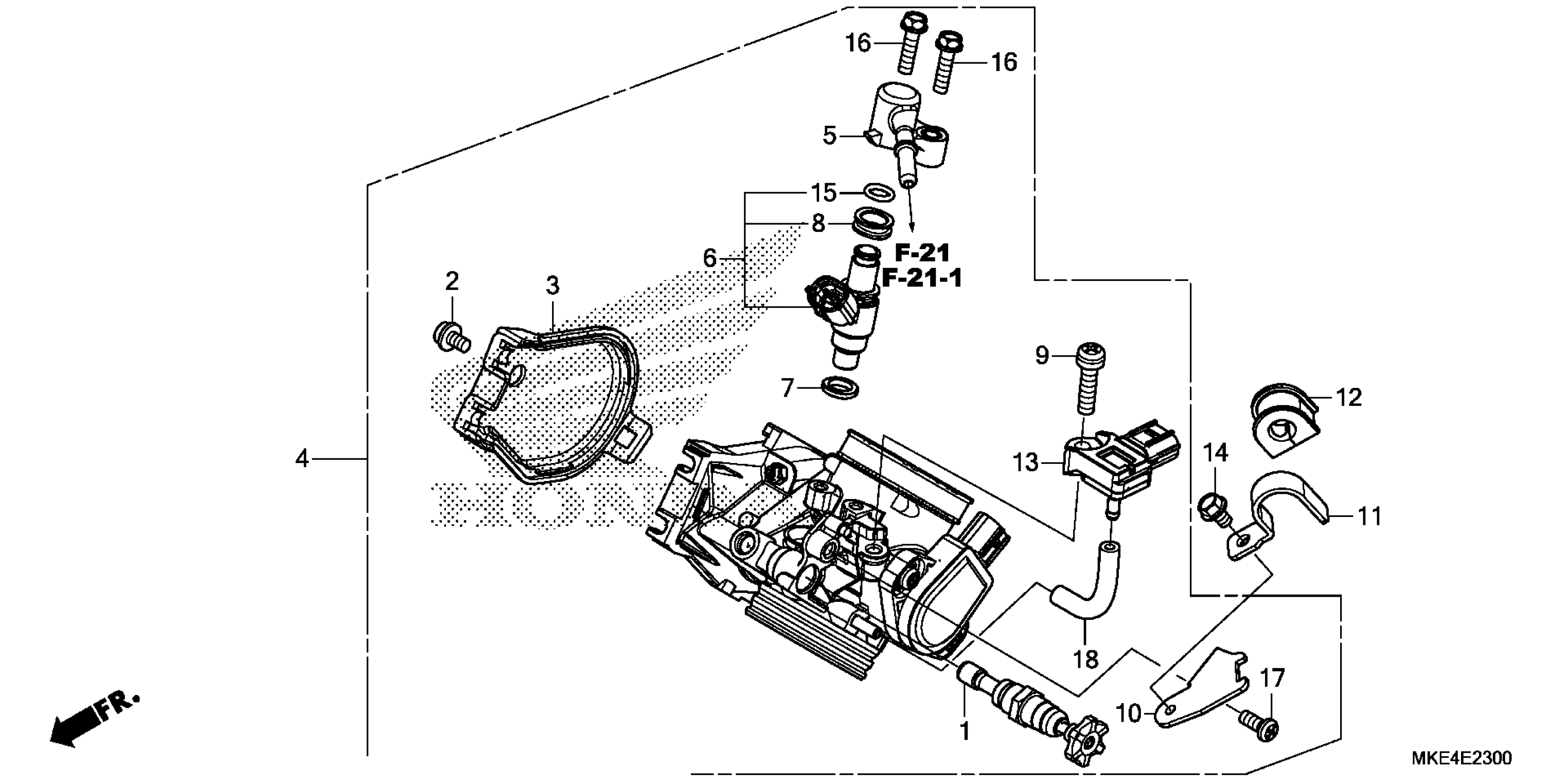

Honda CRF450RAC (18) CRF450R, JPN, VIN# JH2PE073-JK100001 THROTTLE BODY Diagram

VALVE, STARTER

16046-KRN-A41

$40.99

BOLT, COVER

16080-HP1-601

$4.07

COVER, BODY

16157-MEN-A31

$17.66

BODY ASSY., THROTTLE (GQ2DA A)

16400-MKE-A01

$657.52

JOINT, INJECTOR

16422-MKE-A01

$14.15

INJECTOR ASSY., FUEL

16450-MKE-A01

$135.87

SEAL RING, INJECTOR

16472-MCW-000

$2.39

CUSHION RING, INJECTOR

16473-P7A-004

$6.90

SCREW-WASHER (6X25)

16542-MEN-A41

$3.21

BASE, CLAMP

17567-MKE-A01

$6.31

CLAMP, FUEL HOSE

17568-HP5-600

$1.49

RUBBER, FUEL FEED HOSE

17579-MKE-A00

$2.84

SENSOR A, MASTER POWER PRESSURE

46401-TM8-A01

$202.72

BOLT, FLANGE (5X8)

90002-MC7-000

$1.77

O-RING (7.8X1.9)

91301-P7A-004

$3.35

BOLT-WASHER (5X20)

93401-05020-00

$1.49

SCREW, PAN (5X12)

93500-05012-0H

$1.49

SCREW, PAN (5X12) This part replaces 93500-05012-1H.

93500-05012-0H

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67
