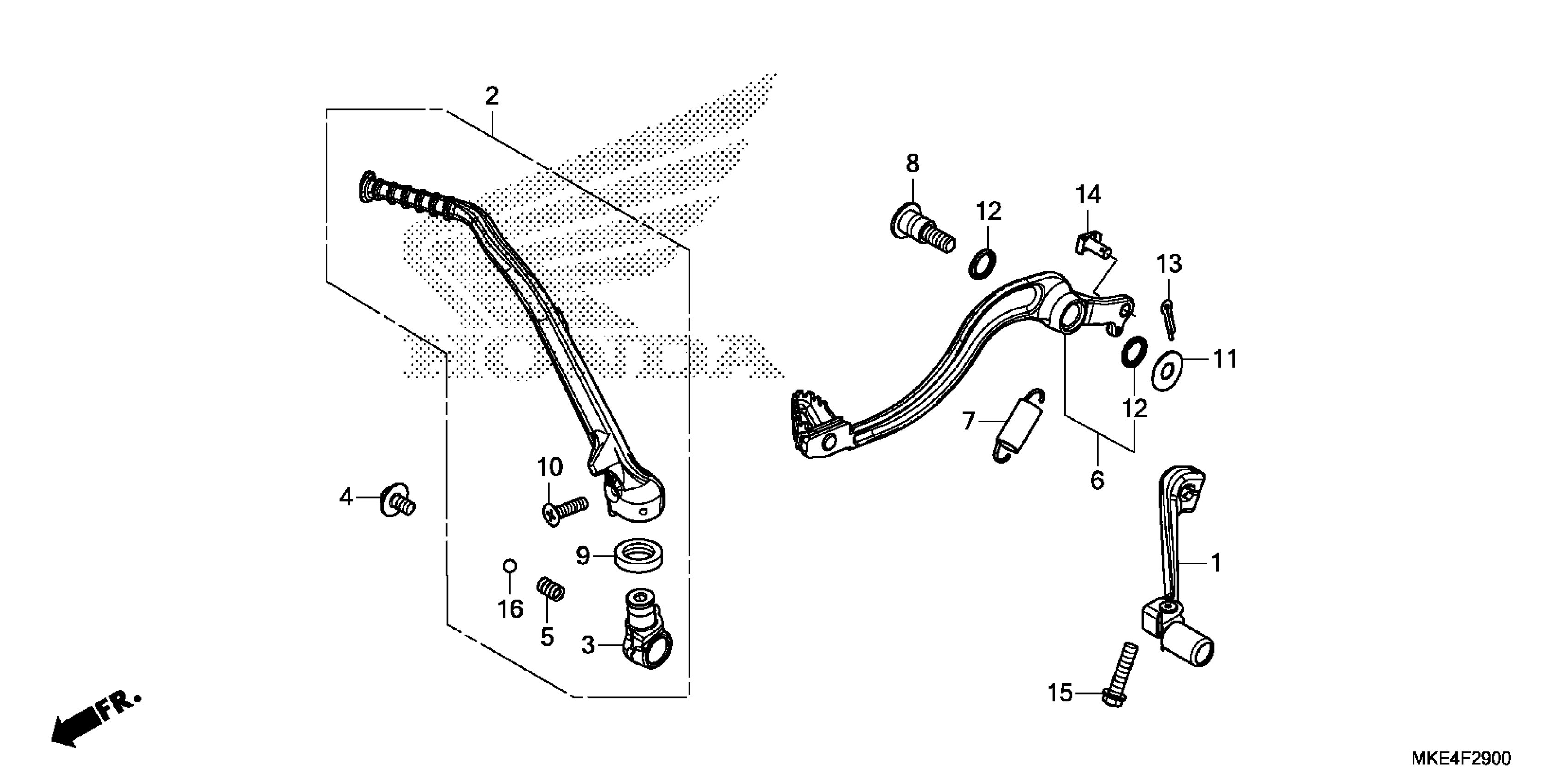

Honda CRF450RAC (18) CRF450R, JPN, VIN# JH2PE073-JK100001 PEDAL@KICK STARTER ARM Diagram

#

Description

Price

1

PEDAL, CHANGE

24700-MKE-A00

$115.05

1

PEDAL, CHANGE This part replaces 24700-MKE-305.

24700-MKE-A00

$115.05

6

PEDAL, RR. BRAKE

46510-MEN-A70

$155.30

6

PEDAL, RR. BRAKE This part replaces 46510-MEN-306.

46510-MEN-A70

$155.30

7

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.48

8

SHAFT, BRAKE PIVOT

46513-KRN-730

$14.20

11

WASHER (26X10.5)

90512-KRN-730

$2.59

12

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

13

PIN, COTTER (2.0X12)

94201-20120

$1.49

14

PIN D, JOINT

95015-54000

$4.24

15

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
