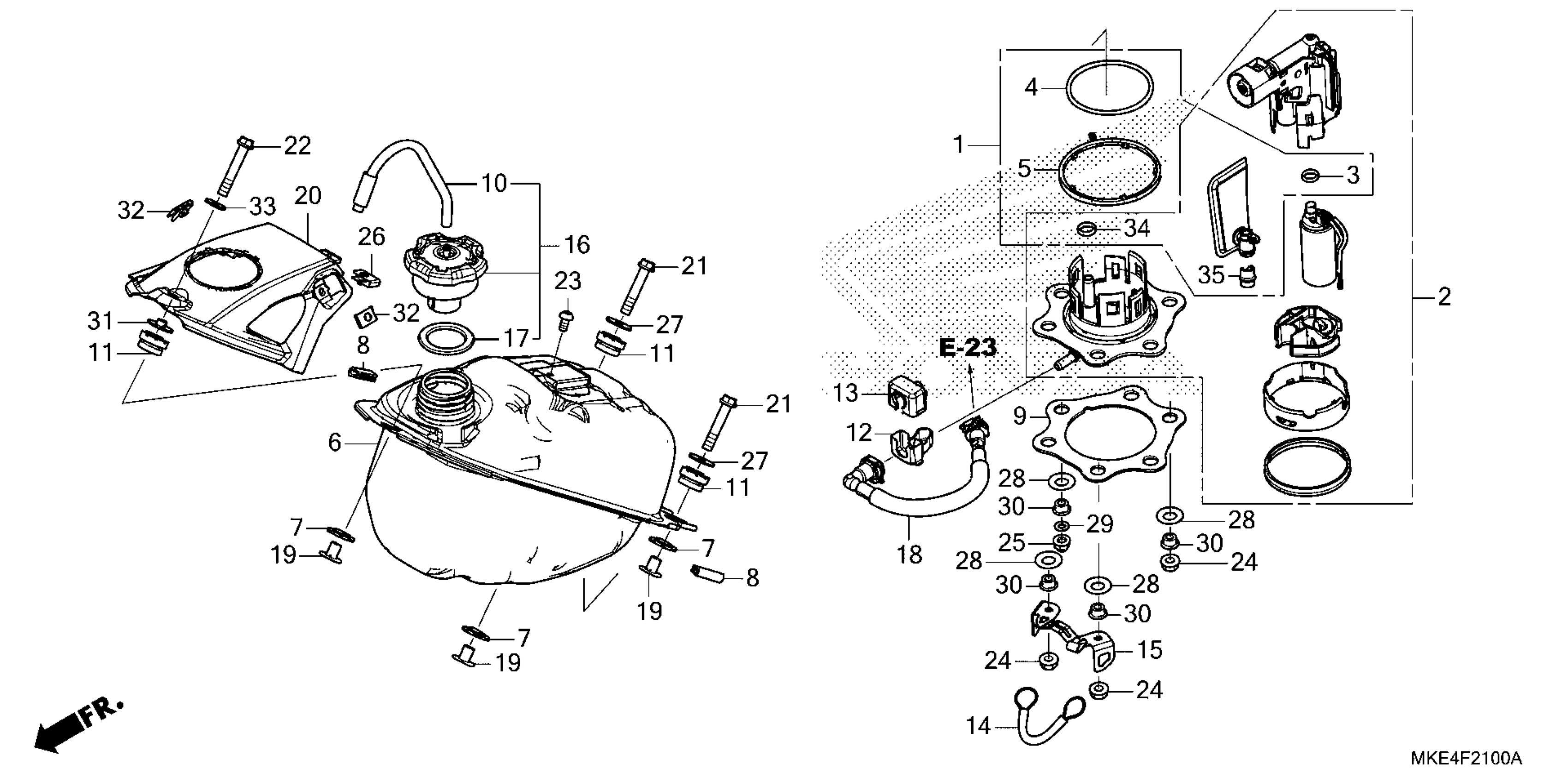

Honda CRF450RAC (18) CRF450R, JPN, VIN# JH2PE073-JK100001 FUEL TANK (1) Diagram

#

Description
Price

1

FILTER KIT, FUEL

06160-MKE-A00

$73.17

2

PUMP ASSY., FUEL

16700-MKE-A01

$386.61

3

O-RING (8.6X1.9)

16702-KPC-D50

$0.51

4

O-RING (3.7X73.9)

16711-MEN-A30

$10.86

5

DUST SEAL

16712-MKE-A00

$12.46

6

TANK, FUEL

17510-MKE-A00

$911.48

7

COLLAR, TANK MOUNTING

17515-MKE-A00

$11.28

8

TRIM, FUEL TANK

17518-MFN-D00

$2.55

9

PLATE, FUEL PUMP

17519-MKE-A00

$18.94

10

TUBE, FUEL CAP BREATHER

17521-MEN-A30

$5.51

11

RUBBER, TANK MOUNTING

17523-MKE-A00

$6.16

12

COVER, FUEL CONNECTOR

17575-KRN-A90

$6.44

13

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.48

14

CABLE, FUEL TANK STOPPER

17577-MEN-A30

$7.03

15

GUIDE, STOPPER CABLE

17578-MKE-A00

$23.71

16

CAP ASSY., FUEL TANK

17620-MKE-A00

$82.96

17

GASKET, FUEL CAP

17622-MKE-A00

$5.77

18

HOSE, FUEL FEED

17630-MKE-A01

$70.49

19

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.78

20

SET, SHELTER ASSY. This part replaces 83150-MKE-A00.

83150-MKE-305

$20.22

21

BOLT (6X28)

90107-MEN-A60

$2.39

22

BOLT, FLANGE (6X35) (SH)

90107-MKE-A00

$2.59

23

BOLT, SPECIAL (5X10) (SUS)

90119-MGE-000

$3.75

24

NUT, FLANGE (6MM) (Honda Code 7039662)

90217-HW1-670

$1.62

25

NUT, FLANGE CAP (6MM)

90301-MKE-A00

$3.45

26

NUT, CLIP (5MM) (Honda Code 7963051)

90305-HW1-730

$2.35

27

WASHER, PLAIN (6MM)

90404-GE2-760

$2.03

28

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.42

29

WASHER, PLAIN (6MM) (Honda Code 7039829)

90504-HW1-670

$1.70

30

COLLAR, FUEL PUMP

90504-MKE-A00

$6.04

31

COLLAR, FR. FENDER

90512-KZ4-J20

$3.73

32

NUT, CLIP (5MM)

90677-KAN-961

$3.79

33

WASHER, PLAIN (6MM)

94103-06700

$0.65

34

O-RING (10X2.4)

16702-KTR-940

$4.92

35

RUBBER, STOPPER

16735-MEN-A51

$7.20
