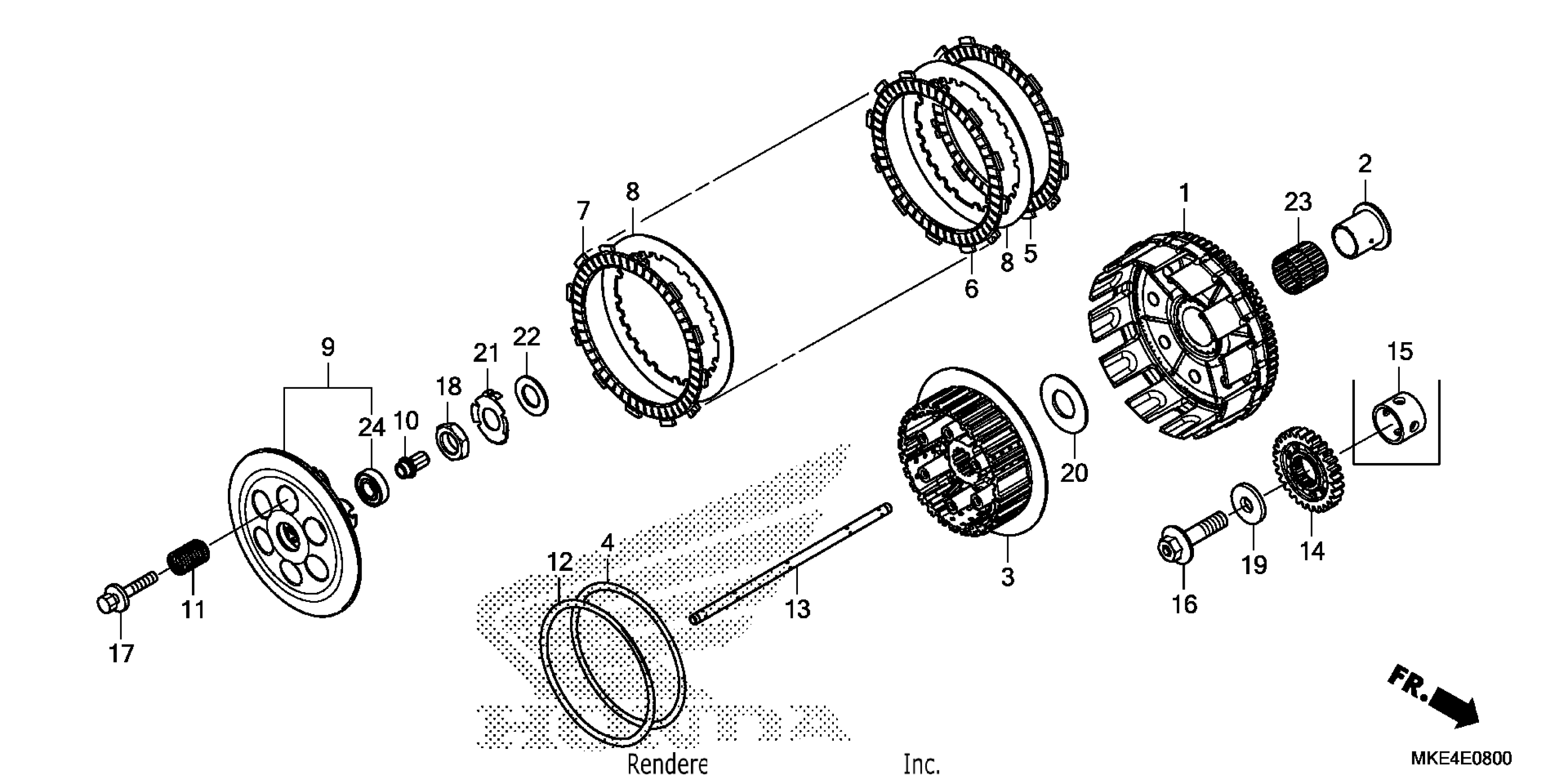

Honda CRF450RAC (18) CRF450R, JPN, VIN# JH2PE073-JK100001 CLUTCH Diagram

#

Description
Price

NI

CLUTCH KIT (INCLUDE-FRICTION DISC,PLATES, SPRINGS, AND O-RING/GASKET) | (Optional).

06001-MEN-007

$255.64

1

CLUTCH OUTER

22100-MKE-A00

$358.16

2

COLLAR, CLUTCH (OUTER)

22106-KS7-000

$23.66

3

CENTER, CLUTCH

22120-MKE-A00

$86.65

4

SEAT, JUDDER SPRING

22125-MBN-670

$7.54

5

DISK, CLUTCH FRICTION

22201-MBN-670

$18.01

6

DISK B, CLUTCH FRICTION

22201-MEN-670

$13.19

7

DISK, CLUTCH FRICTION

22201-MEN-A10

$13.73

8

PLATE B, CLUTCH

22321-MKE-A00

$12.13

9

PLATE, CLUTCH PRESSURE

22350-MKE-A00

$61.94

10

PIECE, CLUTCH LIFTER

22352-MKE-A00

$34.49

11

SPRING, CLUTCH

22401-MEN-A80

$4.43

12

SPRING, JUDDER

22402-MBN-670

$19.15

13

ROD, CLUTCH LIFTER

22850-MKE-A00

$55.48

14

GEAR, PRIMARY DRIVE (28T)

23121-MKE-A00

$73.10

16

BOLT, SPECIAL (12X47)

90013-MEY-670

$6.54

17

BOLT-WASHER (6X35)

90024-MEN-A70

$2.20

18

NUT (18MM)

90235-MEN-A30

$4.78

19

WASHER, PLAIN (12MM)

90402-KW6-960

$5.17

20

WASHER (23X48X2)

90421-MKE-A00

$6.32

21

WASHER, LOCK (18MM)

90461-KZ3-J10

$5.81

22

WASHER (18X32X2)

90501-ML3-910

$4.07

23

BEARING, NEEDLE (28X32X27.2) (THOMPSON)

91021-ML3-003

$16.05

24

BEARING, RADIAL BALL (6001)

96140-60010-00

$11.22
