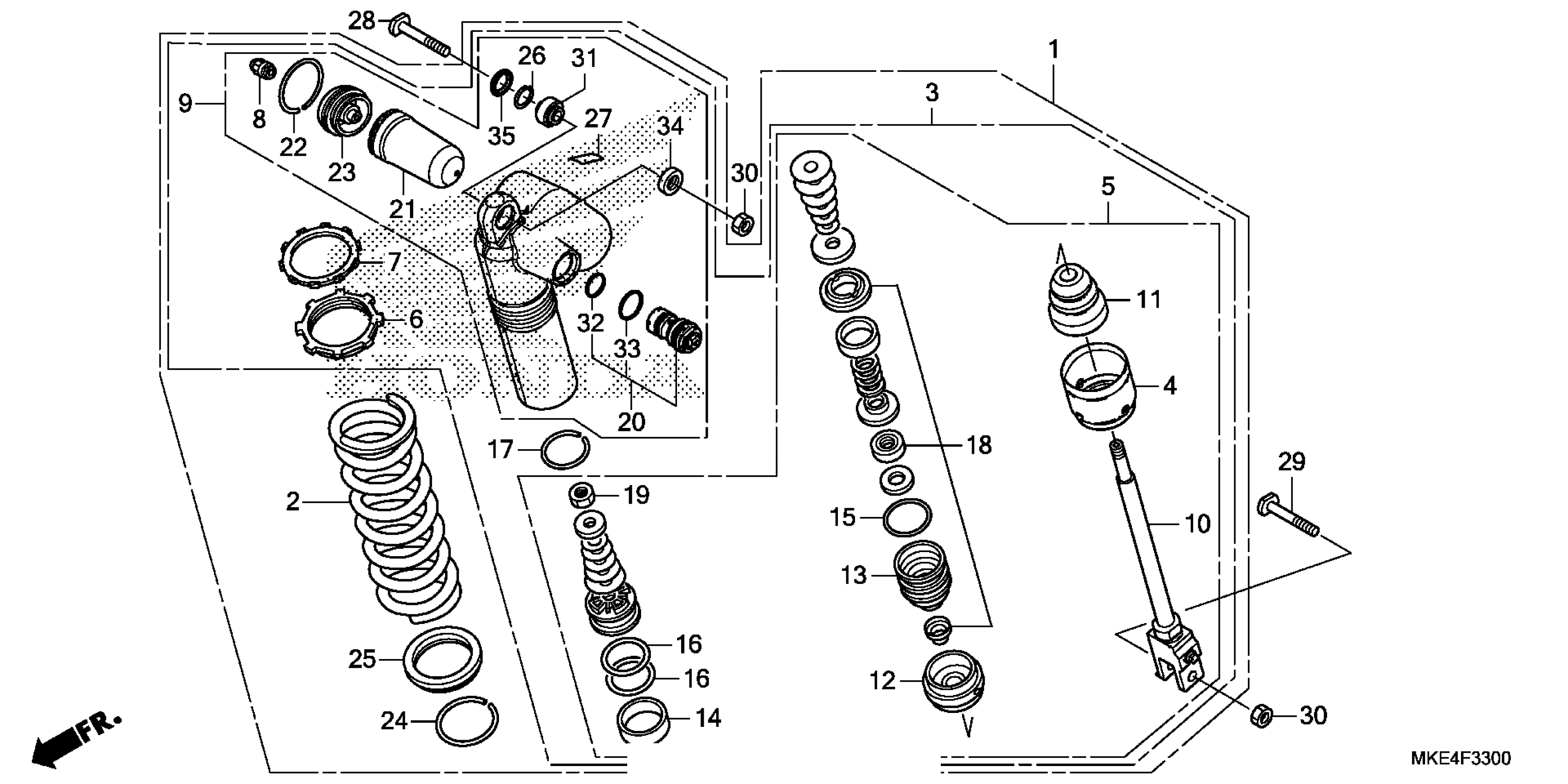

Honda CRF450RAC (17) CRF450R, JPN, VIN# JH2PE073-HK000001 TO JH2PE073-HK099999 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR. (COO)

52400-MKE-305

$1,289.82

2

SPRING, RR. SHOCK ABSORBER (52N/MM) | (Optional).

52401-KRN-A91

$235.03

2

SPRING, RR. SHOCK ABSORBER (56N/MM) | (Optional).

52401-MKE-A01

$220.31

2

SPRING, RR. SHOCK ABSORBER (54N/MM)

52402-KRN-A91

$235.03

3

DAMPER, RR. (COO) This part replaces 52410-MKE-A01.

52410-MKE-305

$1,095.52

3

DAMPER, RR. (COO)

52410-MKE-305

$1,095.52

4

STOPPER, SPRING SEAT

52419-MKE-A01

$23.82

5

ROD, PISTON

52421-MKE-A01

$499.13

6

ADJUSTER, SPRING

52422-KRN-A41

$29.97

7

NUT, ADJUSTER

52423-KRN-A41

$14.52

8

CAP, AIR VALVE

52425-381-771

$5.05

9

CASE, DAMPER

52425-MKE-A01

$890.44

10

ROD

52426-MKE-A01

$436.70

11

RUBBER, STOPPER

52427-MEB-751

$15.72

12

PLATE, END

52428-KRN-711

$14.38

13

CASE, ROD GUIDE

52429-KRN-A41

$45.82

14

RING, PISTON

52431-KZ3-J31

$15.74

15

O-RING (3.5X43.7)

52434-KZ3-J21

$3.72

16

O-RING (42.5X2.0)

52434-KZ3-J31

$3.45

17

RING, STOPPER

52435-KZ3-J21

$2.38

18

OIL SEAL SET

52436-KRN-A41

$21.13

19

NUT, HEX. (12MM)

52438-KA4-741

$2.92

20

ADJUSTER, COMPRESSION DAMPING FORCE

52440-KRN-A91

$136.34

21

BLADDER (SHOWA)

52451-KS7-831

$17.93

22

RING, STOPPER (SHOWA)

52452-KS7-831

$2.90

23

CAP, CHAMBER

52453-KRN-711

$27.66

24

RING, STOPPER

52455-KZ3-J21

$5.80

25

SEAT, SPRING

52486-KZ3-J21

$27.00

26

RING, STOPPER (SHOWA)

52487-KA4-831

$3.92

27

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

28

BOLT, CUSHION (UPPER) (10X53)

90152-MEB-750

$2.92

29

BOLT, CUSHION (LOWER) (10X43.5)

90153-KZ4-710

$9.38

30

NUT, U (10MM)

90306-KZ4-711

$3.74

31

BEARING, SPHERICAL (10)

91074-MAC-741

$35.03

32

O-RING (21.5X1.5)

91256-KZ3-731

$2.84

33

O-RING (26.2X1.9)

91257-KZ3-891

$3.38

34

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.87

35

DUST SEAL, SHOCK (16X26X3)

91351-MAC-671

$5.78
