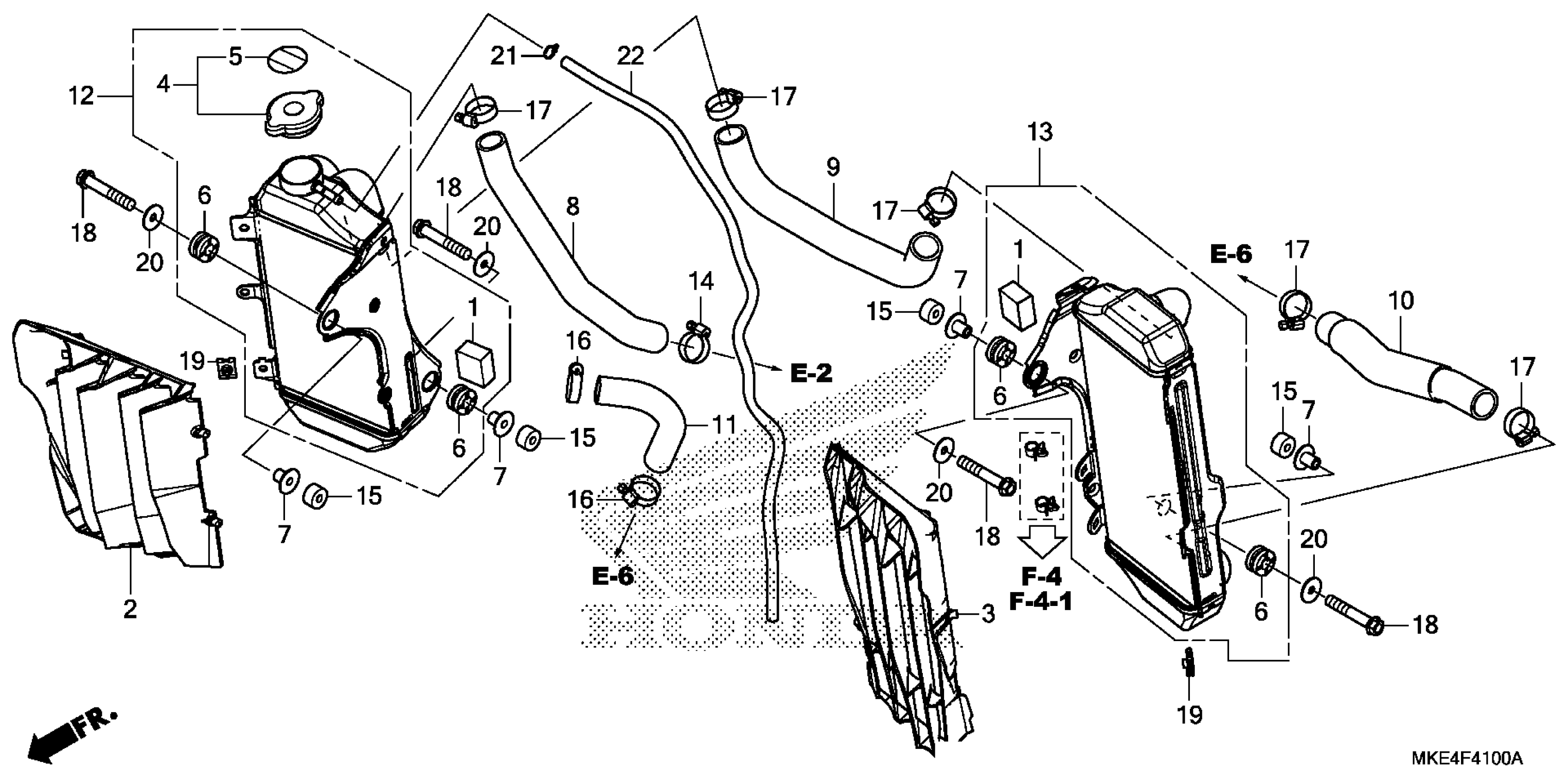

Honda CRF450RAC (17) CRF450R, JPN, VIN# JH2PE073-HK000001 TO JH2PE073-HK099999 RADIATOR Diagram

RUBBER, RADIATOR (UPPER)

19021-MEN-A30

$2.31

GRILLE, R. RADIATOR

19033-MKE-A01

$40.79

GRILLE, L. RADIATOR

19034-MKE-A01

$40.79

CAP, RADIATOR

19037-GEE-710

$30.28

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

HOSE A, WATER

19061-MKE-A00

$15.18

HOSE B, WATER

19062-MKE-A00

$16.51

HOSE C, WATER

19063-MKE-A00

$24.72

HOSE D, WATER

19064-MKE-A00

$9.02

RADIATOR ASSY., R. (COO)

19100-MKE-305

$311.82

RADIATOR ASSY., L.

19150-MKE-A00

$285.39

RADIATOR ASSY., L. This part replaces 19150-MKE-305.

19150-MKE-A00

$285.39

CLAMP, WATER HOSE (D27)

19502-MKE-A00

$9.11

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

BOLT (6X25)

90109-MEN-A70

$2.79

NUT, CLIP (6MM)

90201-KPR-901

$1.87

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.36

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.80

BULK HOSE, VINYL (6X9X1000) (6X9X600) (BULK HOSE 95003-14003-10M)

95003-14001-10M

$3.30
