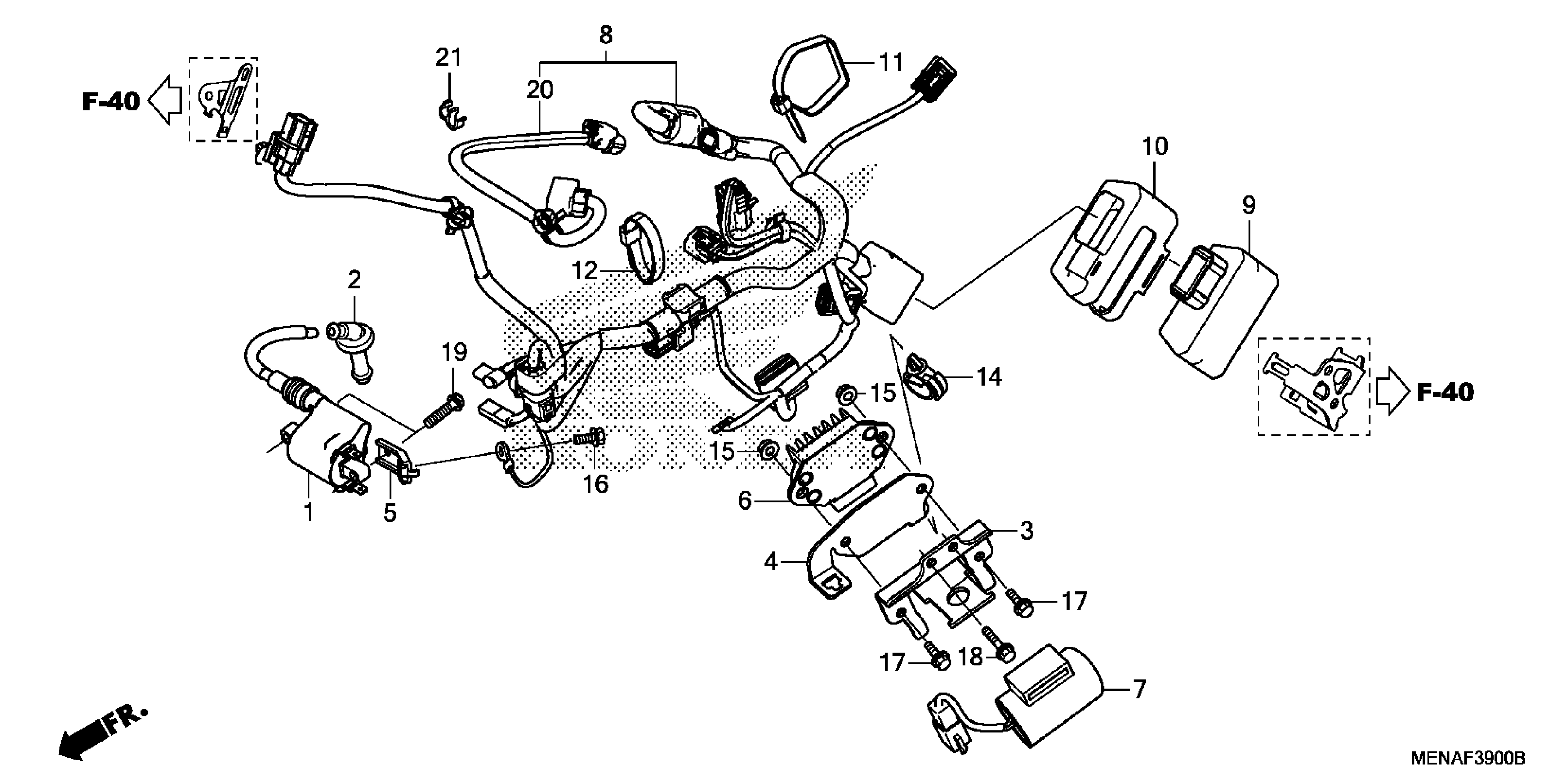

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 WIRE HARNESS Diagram

COIL, IGNITION

30510-MEN-A71

$76.98

CAP ASSY., NOISE SUPPRESSOR

30700-MEN-A31

$47.17

STAY, CONDENSOR

31411-KRN-A70

$15.25

HOLDER, CONNECTOR

31413-MEN-A70

$7.08

HOLDER, GROUND

31414-MEN-A71

$4.46

RECTIFIER ASSY., REGULATE

31600-KRN-A71

$281.08

CONDENSER UNIT

31700-KRN-A71

$278.11

WIRE HARNESS

32100-MEN-B10

$323.15

PGM-FI UNIT

38770-MEN-A92

$691.25

SUSPENSION, PGM-FI UNIT

38771-MEN-A70

$7.54

BAND, WIRE HARNESS

90620-SB2-003

$24.63

BAND, WIRE HARNESS (Honda Code 1746650)

90650-MA6-720

$4.15

STRAP, WIRE HARNESS (25MM) (BLACK)

90690-SA0-003

$7.62

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X10)

96001-06010-00

$1.55

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

SUB-HARNESS, FUEL PUMP

32101-MEN-B10

$10.84

CLAMP, TUBE (7.5X2)

17205-PC6-000

$8.64
