Description

Price

1

MAINSHAFT (15T)

23210-MEN-A70

$178.67

2

COUNTERSHAFT

23220-MEN-A70

$166.04

3

COLLAR, COUNTERSHAFT

23225-MEN-730

$12.86

4

GEAR, COUNTERSHAFT LOW (27T)

23411-MEN-A90

$105.41

5

GEAR, MAINSHAFT SECOND (17T)

23421-MEN-A90

$56.71

6

GEAR, COUNTERSHAFT SECOND (25T)

23431-MEN-A90

$106.70

7

COLLAR, COUNTERSHAFT SECOND GEAR

23432-MEN-A30

$10.62

8

GEAR, MAINSHAFT THIRD (17T)

23441-MEN-A90

$110.30

9

GEAR, COUNTERSHAFT THIRD (21T)

23451-MEN-A90

$100.45

10

GEAR, MAINSHAFT FOURTH (20T)

23461-MEN-A90

$103.41

11

COLLAR, MAINSHAFT FOURTH GEAR

23462-MEY-670

$11.96

12

GEAR, COUNTERSHAFT FOURTH (21T)

23471-MEN-A90

$110.30

13

GEAR, MAINSHAFT FIFTH (22T)

23481-MEN-A90

$100.45

14

COLLAR (25X28X12.3)

23482-MEN-A70

$10.93

15

GEAR (20T) This part replaces 23491-MEN-A90.

23491-MEN-A92

$116.30

16

COLLAR (25X28X11)

23492-KY2-000

$20.19

17

COLLAR, DRIVE SPROCKET

23802-KSC-670

$13.19

18

SPROCKET, DRIVE (13T)

23802-MEN-730

$35.47

19

SCREW, SPECIAL FLAT (6X12)

90003-KRN-670

$1.86

20

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.12

21

BOLT, UBS (8X33)

90112-413-000

$3.59

22

WASHER (25X32X1.0)

90401-HP1-670

$2.61

23

PLATE, BEARING HOLDER

90441-KRM-840

$0.55

24

WASHER, THRUST (24.1X37X1.5)

90445-MEN-A70

$3.07

25

WASHER, THRUST (17.2MM)

90446-KA4-740

$5.54

26

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.53

27

WASHER, THRUST INVOLUTE (25X31X1.5)

90451-MEY-670

$2.29

28

WASHER, SPLINE (25MM)

90461-MEN-A70

$2.81

29

WASHER, LOCK (25MM)

90462-MEN-A70

$3.01

30

WASHER, SPRING (24MM)

90501-KSC-670

$3.96

31

WASHER, THRUST (19MM)

90554-KA5-680

$4.07

32

CIRCLIP (OUTER) (25MM)

90602-259-010

$5.73

33

BEARING, RADIAL BALL (24X56X14) (NTN)

91001-MEN-A71

$13.51

34

BEARING, RADIAL BALL SPECIAL (6205U)

91003-MEN-A71

$16.22

35

BEARING, RADIAL BALL (17X40X11)

91006-MEN-A71

$19.20

36

BEARING, NEEDLE (19X22X9.8)

91007-MEN-731

$8.41

37

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.54

38

D-RING (23.75MM) (ARAI)

91201-ML3-873

$3.41

39

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$9.17

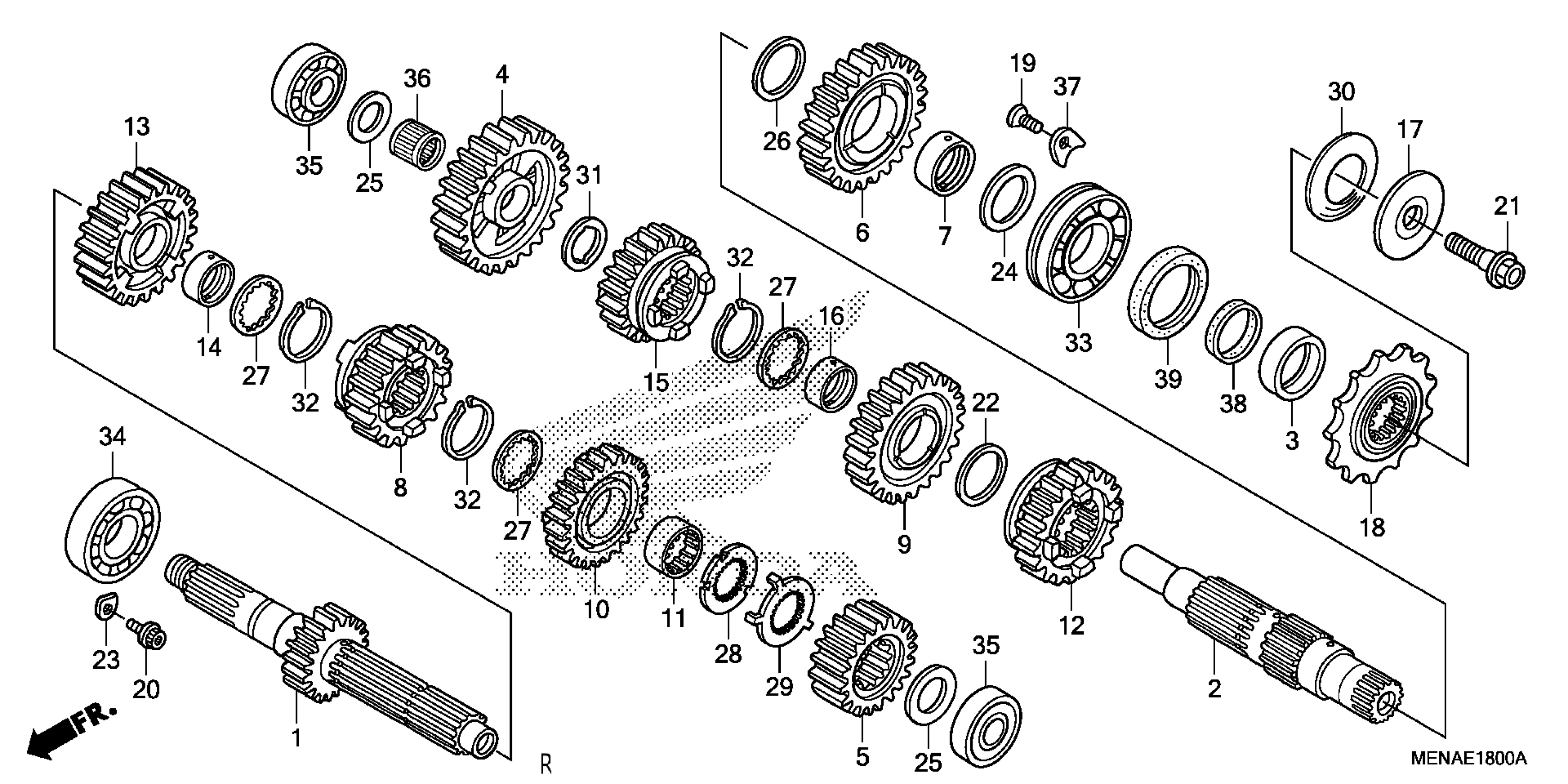

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 TRANSMISSION Diagram
