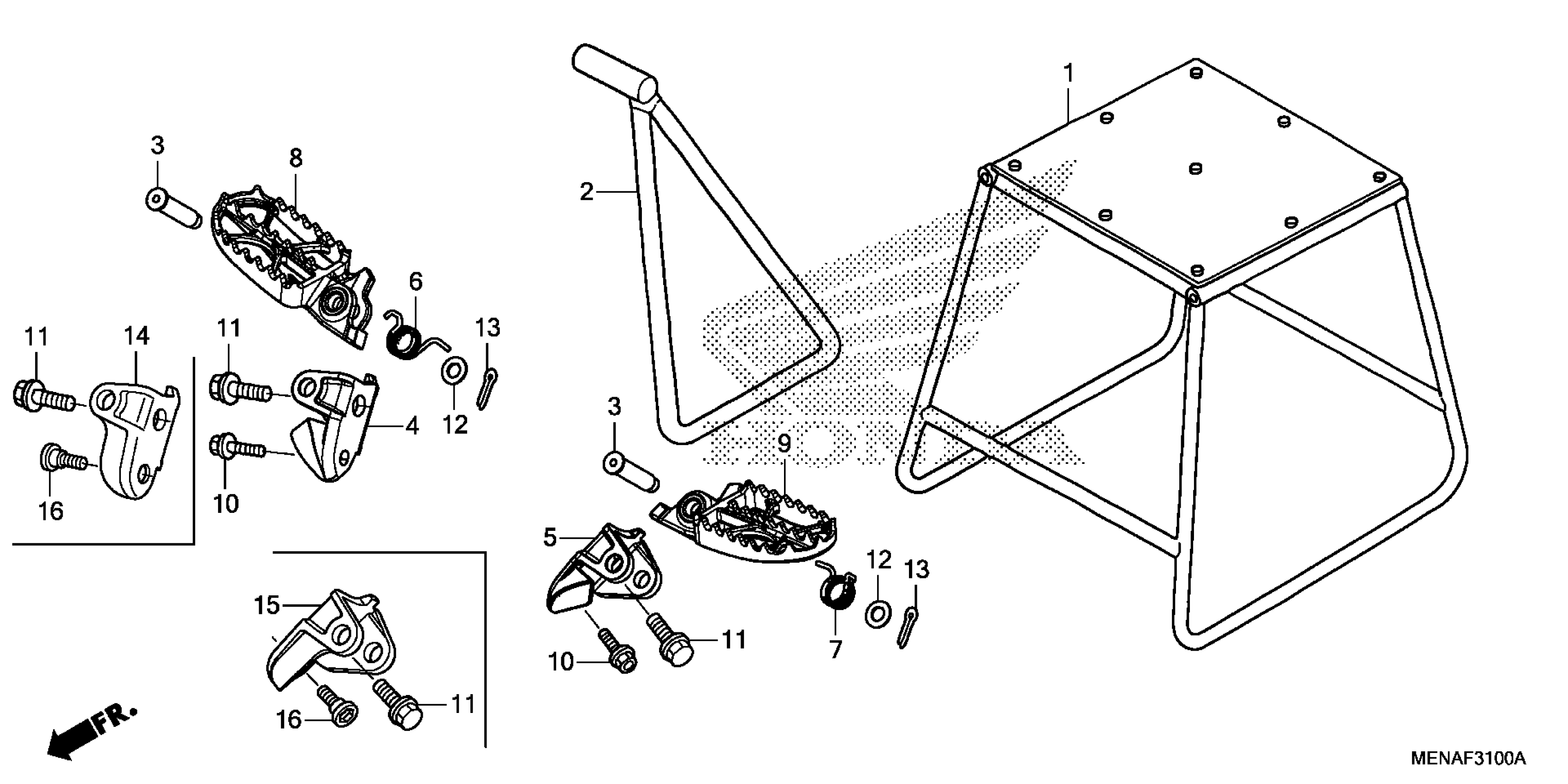

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 STEP@STAND Diagram

STAND, MAIN (COO) | (Optional).

50500-MEN-305

$266.94

BAR, SIDE STAND

50530-KRN-A70

$60.43

BAR, SIDE STAND This part replaces 50530-KRN-305.

50530-KRN-A70

$60.43

PIN, STEP JOINT

50603-KZ4-J40

$3.50

SPRING, R. STEP RETURN

50617-KZ4-J40

$3.65

SPRING, L. STEP RETURN

50618-KZ4-J40

$3.65

ARM, R. STEP (COO)

50660-MEN-305

$58.29

ARM, L. STEP (COO)

50670-MEN-305

$58.29

BOLT, STEP (12MM)

90101-KZ4-J40

$2.41

WASHER, PLAIN (8MM)

94102-08800

$0.87

PIN, SPLIT (2.5X30) This part replaces 94201-25150.

94201-25300

$0.96

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.96

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.96

PIN, COTTER (2.5MM)

94201-25300

$0.96

BRACKET, R. STEP

50610-MEN-B10

$26.50

BRACKET, L. STEP

50611-MEN-B10

$26.50

BOLT, STEP BRACKET

90110-MEN-B10

$2.82
