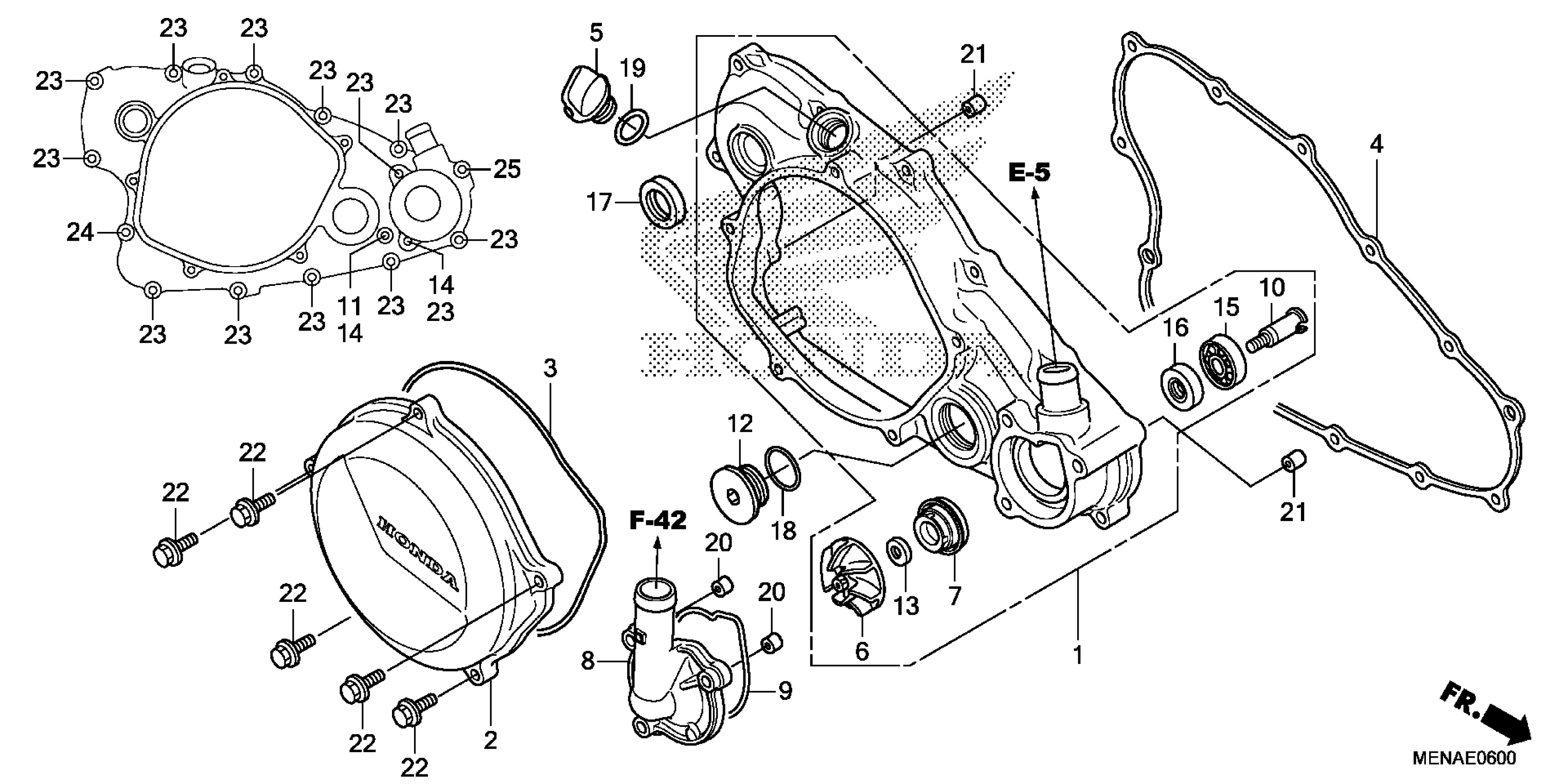

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 RIGHT CRANKCASE COVER @WATER PUMP Diagram

#

Description
Price

1

COVER ASSY., R. CRANKCASE

11330-MEN-A70

$408.00

2

COVER, CLUTCH

11351-MEN-A40

$129.07

3

GASKET, CLUTCH COVER

11352-MEB-671

$9.43

4

GASKET, R. COVER This part replaces 11394-MEN-A40.

11394-MEN-A41

$20.28

5

CAP, OIL FILLER

15611-KA4-710

$14.40

6

IMPELLER, WATER PUMP

19215-MEN-850

$42.58

7

SEAL, MECHANICAL

19217-KRN-A61

$46.40

8

COVER, WATER PUMP

19221-MEN-A30

$82.51

9

GASKET, WATER PUMP

19226-MEN-A30

$5.10

10

SHAFT, WATER PUMP

19241-MEN-A30

$61.99

11

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

12

CAP (30MM)

90087-HB5-000

$16.69

13

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

14

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

15

BEARING, BALL (12X24X6)

91002-MEN-A31

$8.83

16

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

16

OIL SEAL (12X22X5)

91201-965-000

$4.06

17

OIL SEAL (20X28X5)

91204-KF0-003

$6.54

18

O-RING (27X2) (ARAI)

91305-KF0-003

$2.92

19

O-RING (18X3)

91307-035-000

$2.92

20

PIN, DOWEL (8X7)

91320-KE1-000

$2.23

21

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

22

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

23

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

24

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

25

BOLT, FLANGE (6X80) BOLT, FLANGE (6X50)

96001-06080-00

$2.21
