Description

Price

1

RUBBER, RADIATOR (LOWER)

19022-KRN-A40

$3.17

2

GRILLE, R. RADIATOR

19033-KRN-A90

$42.62

3

GRILLE, L. RADIATOR

19034-MEN-A90

$42.62

4

CAP, RADIATOR

19037-GEE-710

$30.28

5

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

6

RUBBER, RADIATOR MOUNTING

19051-KRN-000

$2.67

7

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

8

HOSE A, WATER

19061-MEN-A80

$10.15

9

HOSE B, WATER

19062-MEN-A80

$11.90

10

HOSE C, WATER

19063-MEN-A80

$15.89

11

JOINT, WATER HOSE

19069-MEN-A30

$20.54

14

RADIATOR ASSY., R. This part replaces 19100-MEN-307.

19100-MEN-A90

$326.30

15

RADIATOR ASSY., L. (COO)

19150-MEN-307

$328.67

16

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

17

NUT, CLIP (6MM)

90201-KPR-901

$1.87

18

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.36

19

O-RING (9.8X1.9)

91353-MEC-003

$3.42

20

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.80

21

BULK HOSE, VINYL (6X9X1000) (6X9X600) (BULK HOSE 95003-14003-10M)

95003-14001-10M

$3.30

22

BOLT (6X25)

90109-MEN-A70

$2.79

23

RUBBER, RADIATOR (UPPER)

19021-MEN-A70

$3.67

24

PETCOCK, DRAIN

19071-MEC-003

$3.58

25

PETCOCK ASSY., DRAIN

19070-MEC-003

$10.07

26

HOSE D, WATER

19081-MEN-A90

$25.13

27

HOSE E, WATER

19082-MEN-A90

$16.98

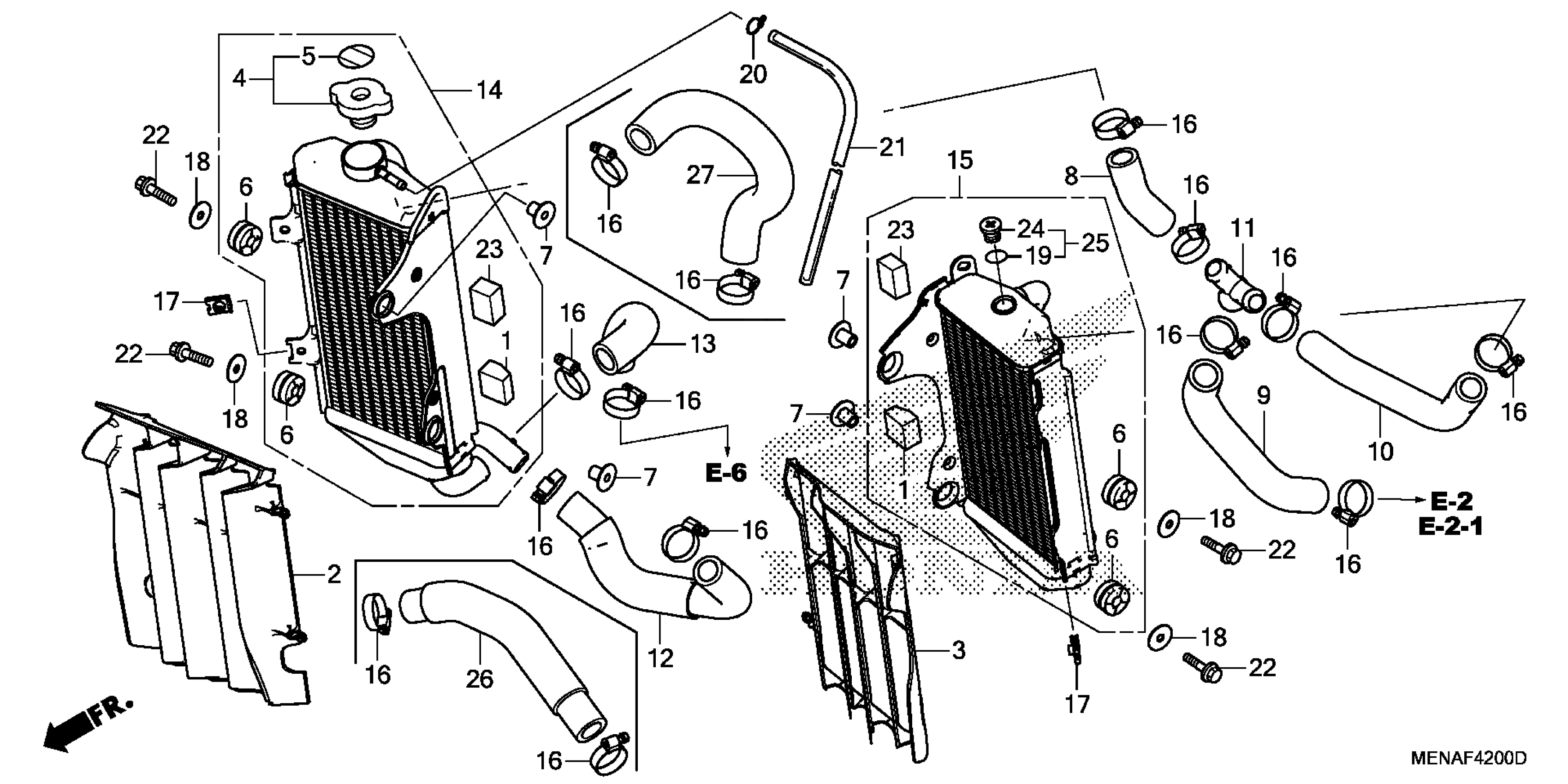

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 RADIATOR Diagram
