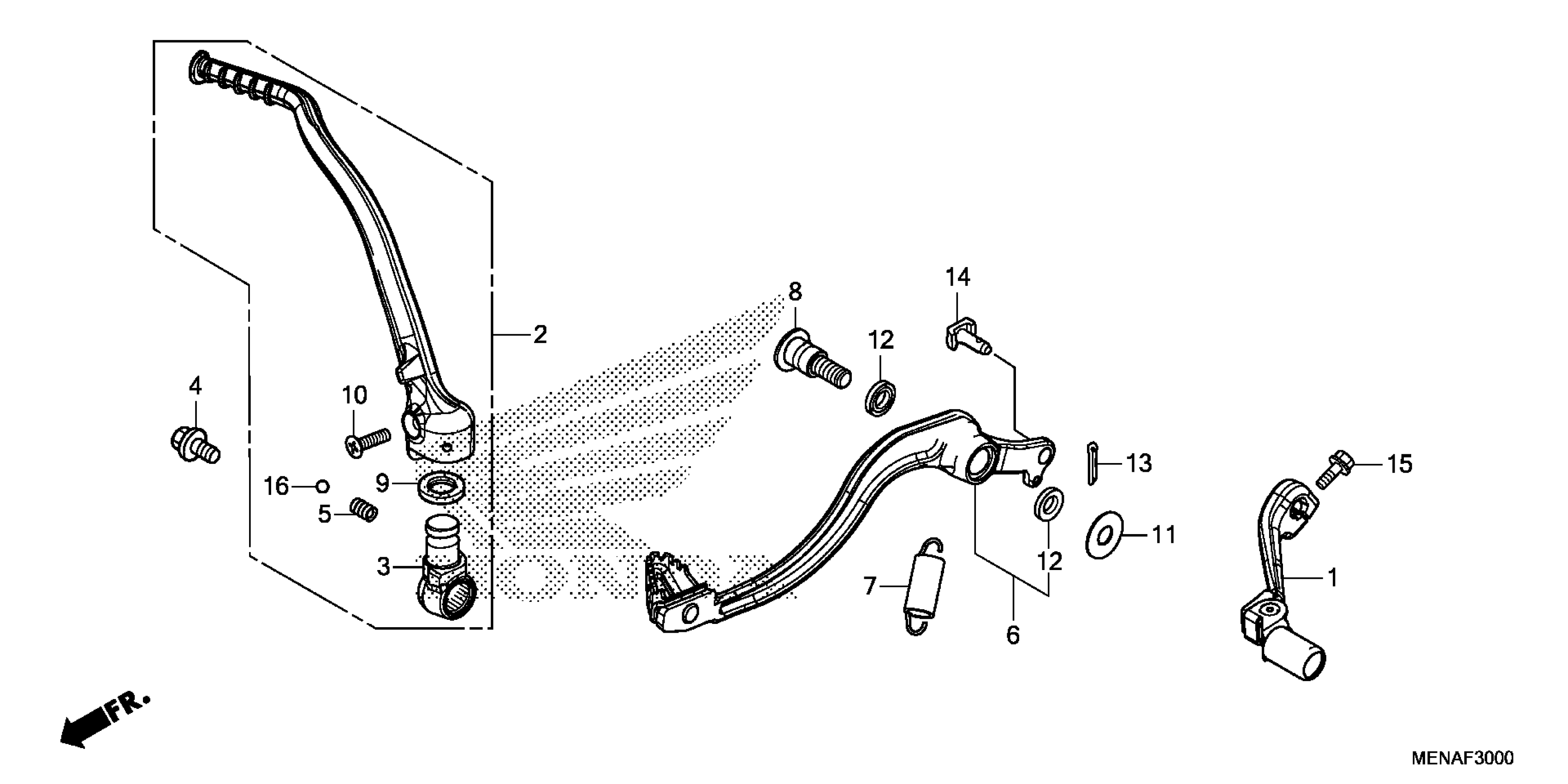

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 PEDAL@KICK STARTER ARM Diagram

PEDAL, GEARSHIFT This part replaces 24700-MEN-306.

24700-MEN-A50

$102.32

ARM, KICK STARTER This part replaces 28300-MEN-306.

28300-MEN-A60

$191.94

JOINT, KICK ARM

28302-MEN-A30

$66.66

BOLT, KICK JOINT

28306-MEN-670

$5.59

SPRING, KICK STARTER

28333-KK0-000

$2.32

PEDAL, RR. BRAKE

46510-MEN-A70

$143.49

PEDAL, RR. BRAKE This part replaces 46510-MEN-306.

46510-MEN-A70

$143.49

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.13

SHAFT, BRAKE PIVOT

46513-KRN-730

$13.04

DUST SEAL (17X20X2.5)

46525-KK0-003

$4.83

BOLT, KICK ARM

90103-MEN-A30

$1.94

WASHER (26X10.5)

90512-KRN-730

$2.40

DUST SEAL (15X20X2.5)

91251-444-000

$4.13

PIN, COTTER (2.0X12)

94201-20120

$1.04

PIN D, JOINT

95015-54000

$4.05

BOLT, FLANGE (6X22)

96001-06022-00

$1.15

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
