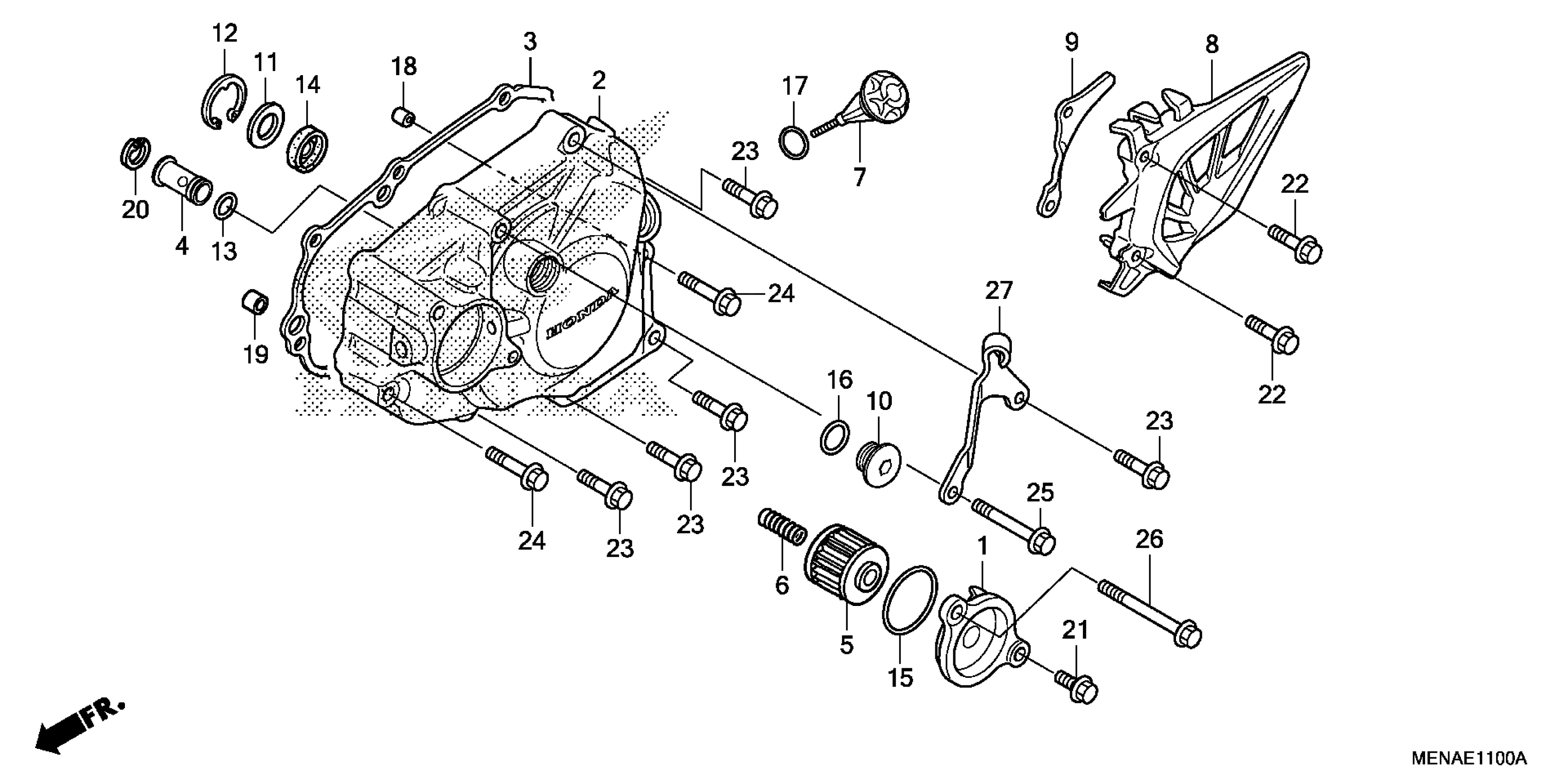

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 LEFT CRANKCASE COVER Diagram

COVER, OIL FILTER

11333-MEN-A30

$46.21

COVER, L. CRANKCASE

11340-MEN-A50

$267.16

GASKET, L. COVER This part replaces 11395-MEN-A50.

11395-MEN-A51

$12.61

VALVE ASSY., RELIEF

15220-MEN-A30

$24.66

FILTER, ENGINE OIL

15412-MEN-671

$7.74

SPRING, OIL FILTER

15414-MEB-670

$2.62

DIPSTICK, OIL

15650-MEN-A30

$8.80

COVER, DRIVE SPROCKET

23810-MEN-A30

$24.95

GUIDE, DRIVE CHAIN

23812-MEN-A30

$11.70

CAP (14MM)

90084-MN8-010

$12.82

WASHER (13X24X1.6)

90401-MEY-670

$1.97

CIRCLIP, SPECIAL (INNER) (24MM)

90602-MEB-670

$3.08

O-RING (8.5X1.7)

90751-GK1-003

$2.70

OIL SEAL (10X21X5)

91204-MEN-A31

$3.86

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$4.21

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

CIRCLIP (INNER) (14MM)

94520-14000

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X30)

90001-KRN-A90

$2.66

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

BOLT, FLANGE (6X75)

96001-06075-00

$2.23

RECEIVER, CLUTCH CABLE

22838-MEN-A90

$7.89
