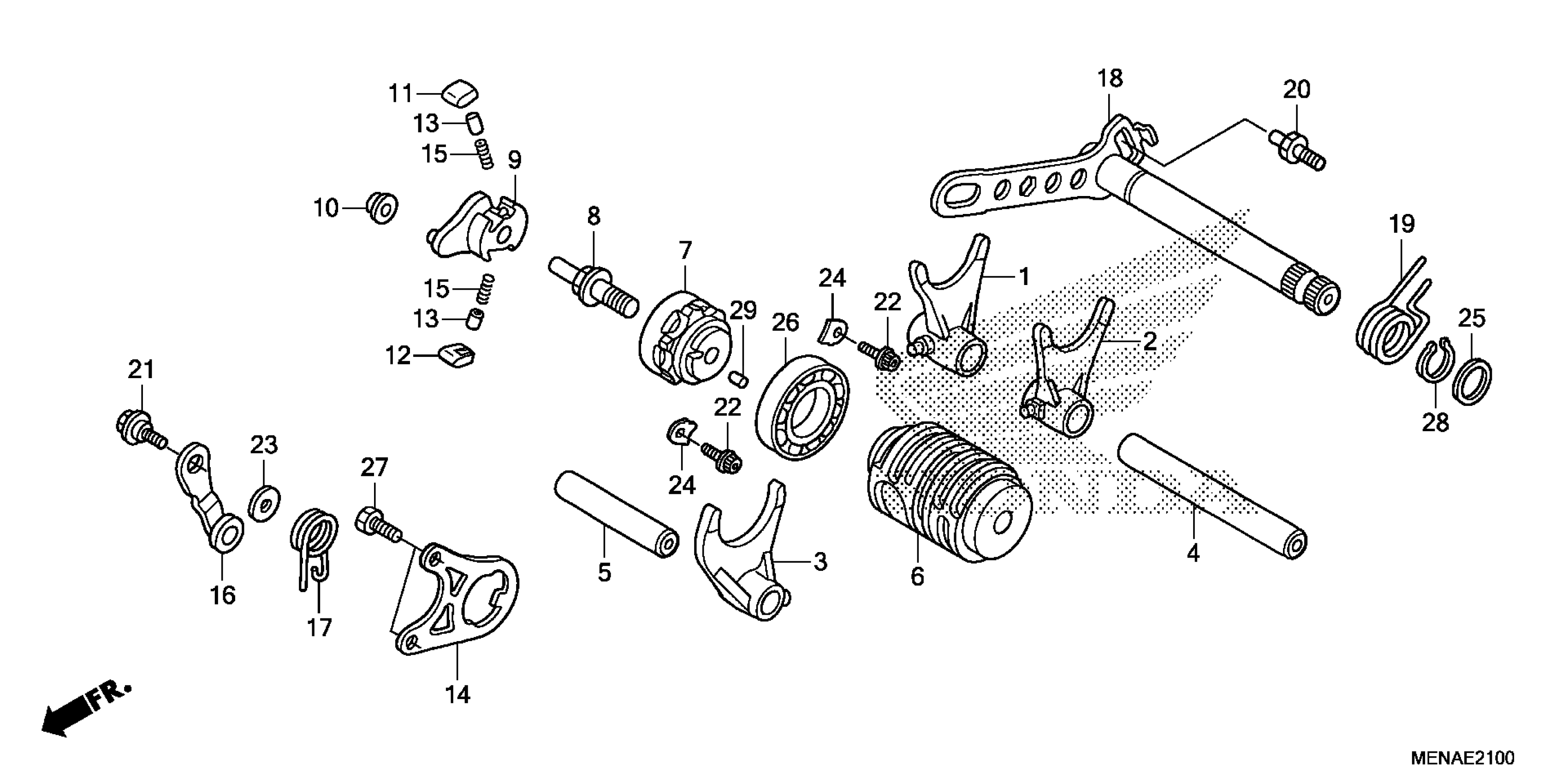

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-MEN-A31

$61.08

FORK, L. GEARSHIFT

24221-MEN-A31

$61.08

FORK, CENTER GEARSHIFT

24231-MEN-A50

$69.92

SHAFT A, SHIFT FORK

24241-MEN-730

$17.15

SHAFT B, SHIFT FORK

24242-MEN-730

$13.56

DRUM, GEARSHIFT

24311-MEN-A70

$83.62

CENTER, GEARSHIFT DRUM

24312-KA3-741

$64.75

PIN, SHIFTER

24315-HA0-000

$12.60

SHIFTER, DRUM

24321-MEB-670

$36.57

COLLAR, SHIFTER

24322-MM4-000

$5.12

PAWL A, RATCHET

24324-KA3-711

$13.21

PAWL B, RATCHET

24325-KA3-711

$13.21

PLUNGER, PAWL

24326-KBH-901

$5.81

PLATE, GUIDE

24328-MEN-A30

$13.48

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

STOPPER, GEARSHIFT DRUM

24430-MEN-A30

$12.89

SPRING, DRUM STOPPER

24435-MEN-A10

$3.26

SPINDLE, GEARSHIFT

24610-MEN-A70

$83.69

SPG, SHIFT RETURN This part replaces 24651-MEB-670.

24651-MEB-671

$4.11

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

WASHER (6.1MM)

90435-HB3-000

$2.92

PLATE, BEARING HOLDER

90442-MEN-A30

$3.48

WASHER (14MM)

90451-155-000

$3.78

BEARING, BALL (6805LU)

91008-MEY-671

$16.85

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

ROLLER (4X8)

96220-40080

$1.49
