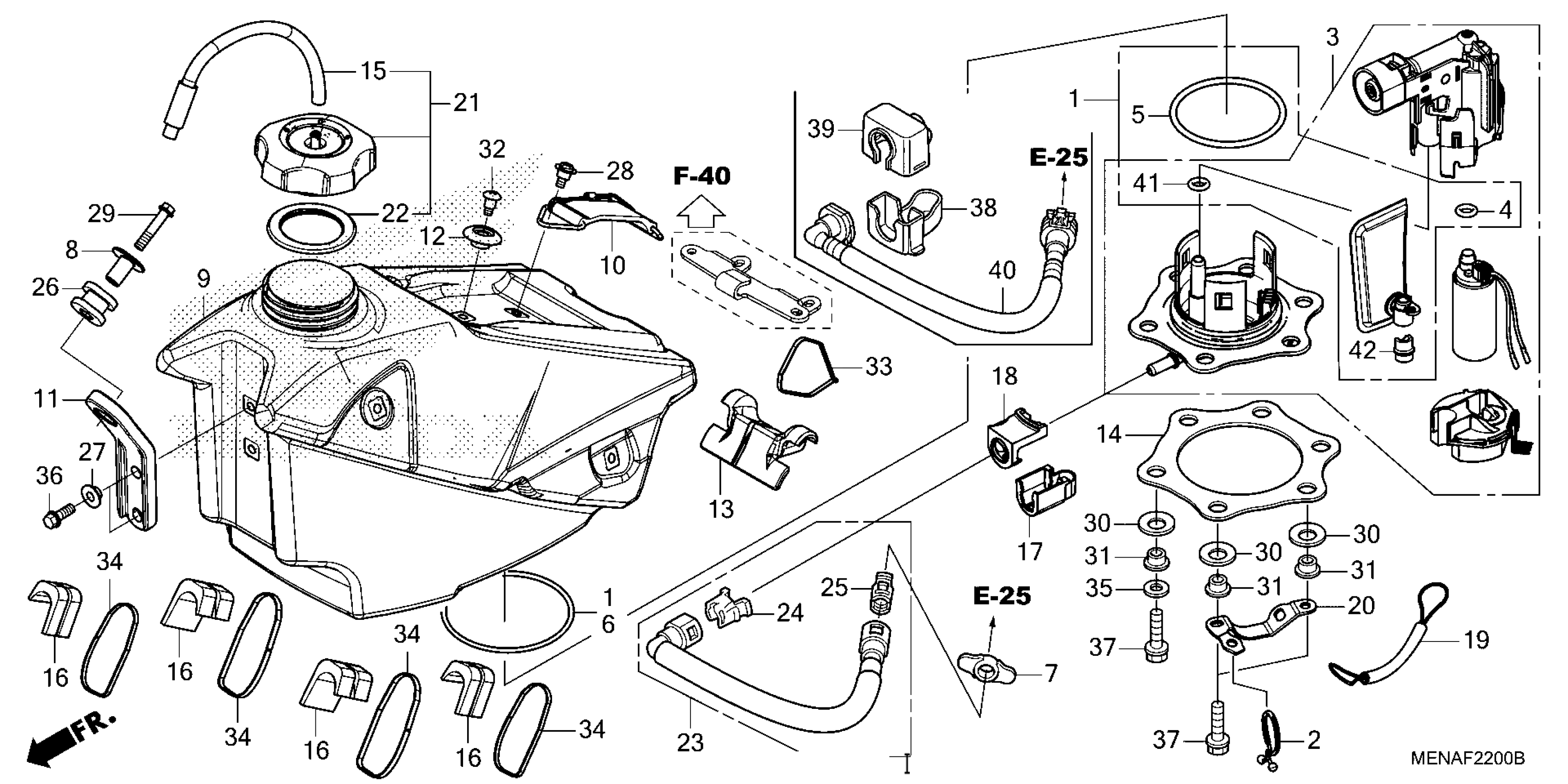

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 FUEL TANK Diagram

FILTER KIT, FUEL

06160-MEN-A50

$80.94

CLIP, BREATHER TUBE PROTECTOR

15712-PD1-811

$9.10

PUMP ASSY., FUEL (THIS PUMP REQ'S FUEL FILTER KIT 06160-MEN-A50 FOR SERVICE)

16700-MEN-A52

$334.46

O-RING (8.6X1.9)

16702-KPC-D50

$0.51

O-RING (3.7X73.9)

16711-MEN-A30

$10.86

O-RING (2.4X88.4)

16712-MEN-A30

$10.17

COLLAR, TANK SETTING

17509-KZ3-B00

$8.30

TANK, FUEL

17510-MEN-A70

$843.21

BAND, RR. TANK

17516-KZ3-B00

$14.97

STAY, FR. FUEL TANK

17516-MEN-A30

$7.21

COLLAR, FR. SEAT

17518-KZ4-710

$5.54

RUBBER, FUEL TANK MOUNTING

17518-MEN-A70

$14.50

PLATE, FUEL PUMP

17519-MEN-A30

$17.09

TUBE, FUEL CAP BREATHER

17521-MEN-A30

$5.59

RUBBER, TANK SIDE MOUNTING

17522-MEN-730

$6.29

CABLE, FUEL TANK STOPPER

17577-MEN-A30

$7.13

GUIDE, STOPPER CABLE

17578-MEN-A30

$7.78

CAP ASSY., FUEL TANK

17620-MEN-A30

$84.22

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.60

RUBBER, MUFFLER

18334-ML3-680

$3.71

COLLAR

84706-415-000

$2.16

SCREW (5X12)

90105-MEN-730

$1.54

BOLT (6X30)

90108-MEN-A60

$2.43

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.46

COLLAR, FUEL PUMP

90503-MEN-A31

$4.47

SCREW, SPECIAL (5MM)

91422-MT8-770

$2.68

TY-RAP, CABLE (240MM)

91560-MEN-A30

$1.82

TY-RAP, CABLE

91560-MS8-600

$2.19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

COVER, FUEL CONNECTOR

17575-KRN-A90

$6.60

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.62

HOSE, FUEL FEED

17630-KRN-A91

$91.46

O-RING (10X2.4)

16702-KTR-940

$5.04

RUBBER, STOPPER

16735-MEN-A51

$7.31
