Description

Price

1

CYLINDER HEAD ASSY.

12010-MEN-A90

$638.15

2

GUIDE, VALVE (OVER SIZE)

12204-MEN-P00

$15.19

3

GUIDE, EX. VALVE (OVER SIZE)

12205-MEB-P00

$14.23

4

GASKET, CYLINDER HEAD

12251-MEN-A31

$38.53

5

INSULATOR, THROTTLE BODY

16211-MEN-A50

$14.63

6

BAND A, INSULATOR

16217-MCJ-000

$8.36

7

BAND, INSULATOR

16218-MEN-A50

$6.56

8

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$1.99

9

JOINT, WATER

19501-MEN-A30

$19.13

10

SPARK PLUG (SILMAR9A9S) (NGK)

31909-MEN-A31

$16.78

10

SPARK PLUG (SILMAR10A9S) (NGK) | (Optional).

31910-MEN-A31

$16.78

11

SENSOR ASSY., WATER TEMPERATURE

37870-HN8-A61

$33.68

12

BOLT, FLANGE (10X150)

90001-MEN-A30

$8.09

13

BOLT, FLANGE (6X55)

90003-MEN-A30

$2.65

14

BOLT, RECESSED (5X28)

90005-MCJ-000

$1.40

15

BOLT, FLANGE (6X45)

90005-MEN-A30

$1.85

16

WASHER, CAMSHAFT THRUST

90446-KRN-670

Unavailable

17

WASHER, PLAIN (10MM)

90453-MK4-600

$3.65

18

O-RING (19X3) (NOK)

91312-KE7-003

$2.41

19

BOLT, STUD (8X22)

92900-08022-0B

$2.54

20

PIN A, DOWEL (8X10)

94301-08100

$2.62

21

PIN A, DOWEL (12X20)

94301-12200

$2.80

22

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

23

BOLT, FLANGE (6X90)

96001-06090-00

$1.81

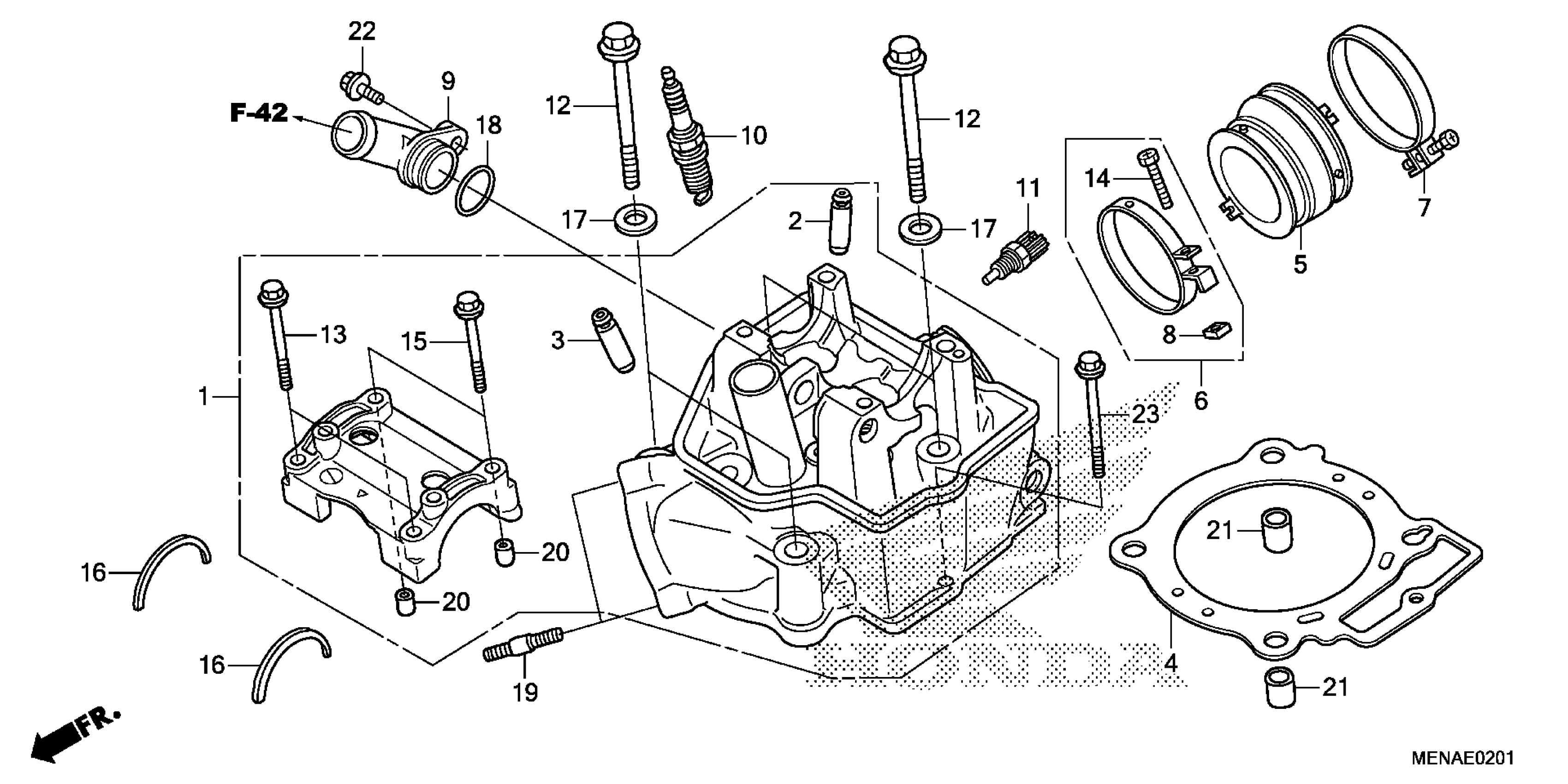

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 CYLINDER HEAD (2) Diagram
