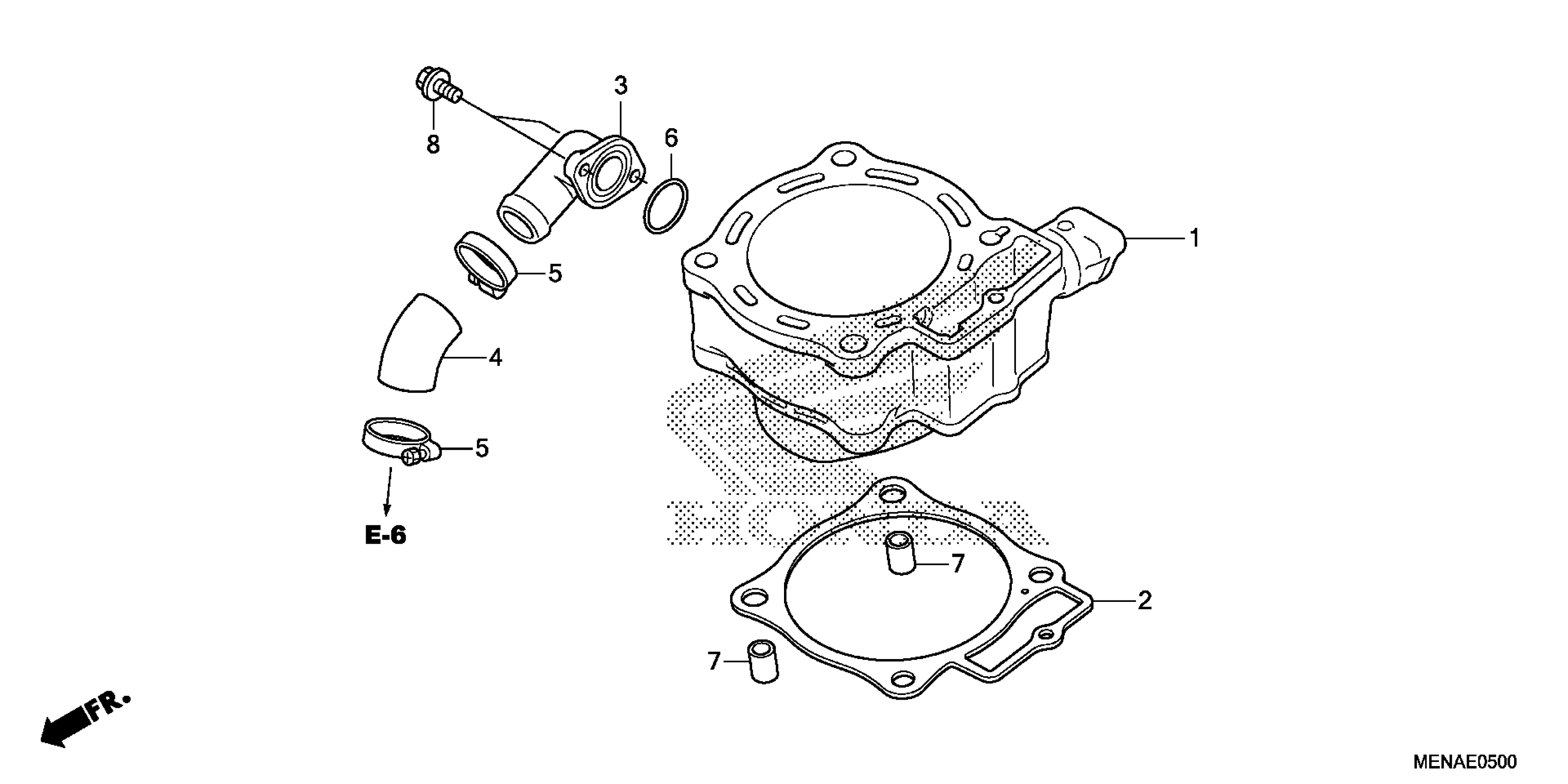

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 CYLINDER Diagram

#

Description

Price

1

CYLINDER

12100-MEN-A50

$481.77

2

GASKET, CYLINDER

12191-MEN-A31

$12.99

3

JOINT, WATER

19502-MEN-A30

$17.90

4

HOSE G, WATER

19503-MEN-A80

$10.56

5

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

6

O-RING (21.8X2.4) (Honda Code 3793031)

91355-759-003

$1.74

7

PIN A, DOWEL (12X20)

94301-12200

$2.29

8

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
