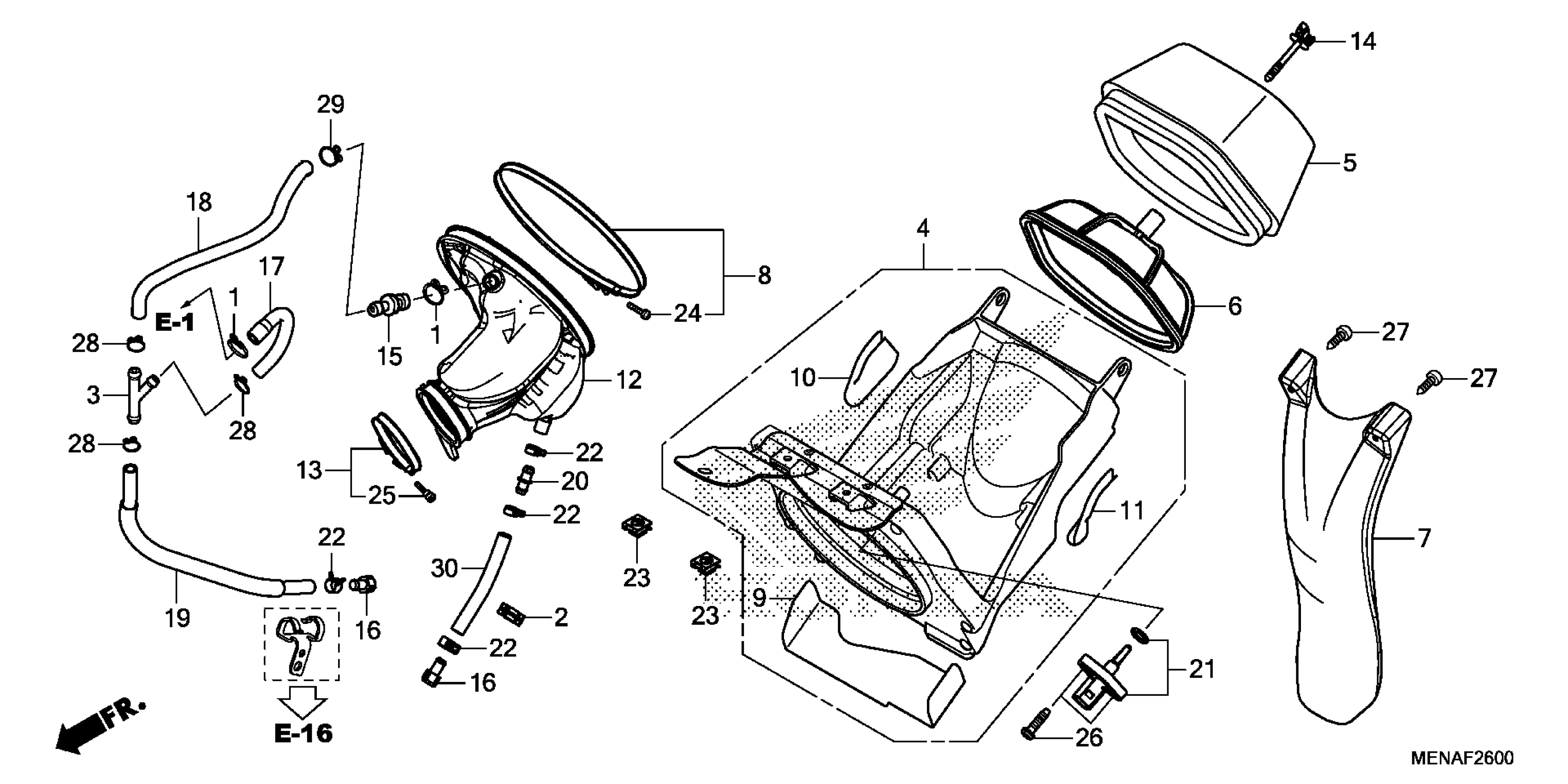

Honda CRF450RAC (16) CRF450R, JPN, VIN# JH2PE053-GK500001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

2

CLIP, TUBE

16731-MEN-A71

$2.03

3

JOINT, FUEL TUBE

16959-MY1-000

$17.77

4

HOUSING, AIR CLEANER

17210-MEN-A70

$133.56

5

ELEMENT, AIR CLEANER

17213-MEN-A70

$56.44

6

BASE ASSY., ELEMENT

17214-KRN-A90

$44.79

7

SPLASH GUARD

17218-MEN-A70

$52.13

8

BAND, AIR CLEANER CONNECTING TUBE (171)

17221-MEN-A30

$17.25

9

GUARD, HEAT

17221-MEN-A70

$10.31

10

GUARD, R. HEAT

17222-MEN-A70

$3.33

11

GUARD, L. HEAT

17223-MEN-A70

$3.66

12

TUBE, AIR CLEANER CONNECTING

17253-MEN-A70

$85.07

13

BAND, AIR CLEANER CONNECTING TUBE (60MM)

17255-MEN-A70

$15.89

14

BOLT, AIR CLEANER ELEMENT SETTING

17291-MEB-670

$6.40

15

JOINT, BREATHER TUBE

17359-MAG-L00

$5.26

16

PLUG, BREATHER TUBE

17370-419-700

$3.74

17

TUBE A, BREATHER

17372-MEN-A70

$13.67

18

TUBE B, BREATHER

17374-MEN-A70

$21.21

19

TUBE C, BREATHER

17375-MEN-A30

$8.80

20

JOINT, TUBE

19102-KT8-000

$6.61

21

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

22

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

23

NUT, CLIP (6MM)

90305-GK8-000

$2.39

24

SCREW, PAN (4X25)

93500-04025-0G

$1.49

25

SCREW, PAN (4X30)

93500-04030-0G

$3.69

26

SCREW, TAPPING (5X20)

93911-25520

$1.49

27

SCREW, TAPPING (5X20)

93913-25580

$1.49

28

CLIP, TUBE (B12)

95002-02120

$2.00

29

CLIP, TUBE (B12.5)

95002-02130

$1.49

30

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable
