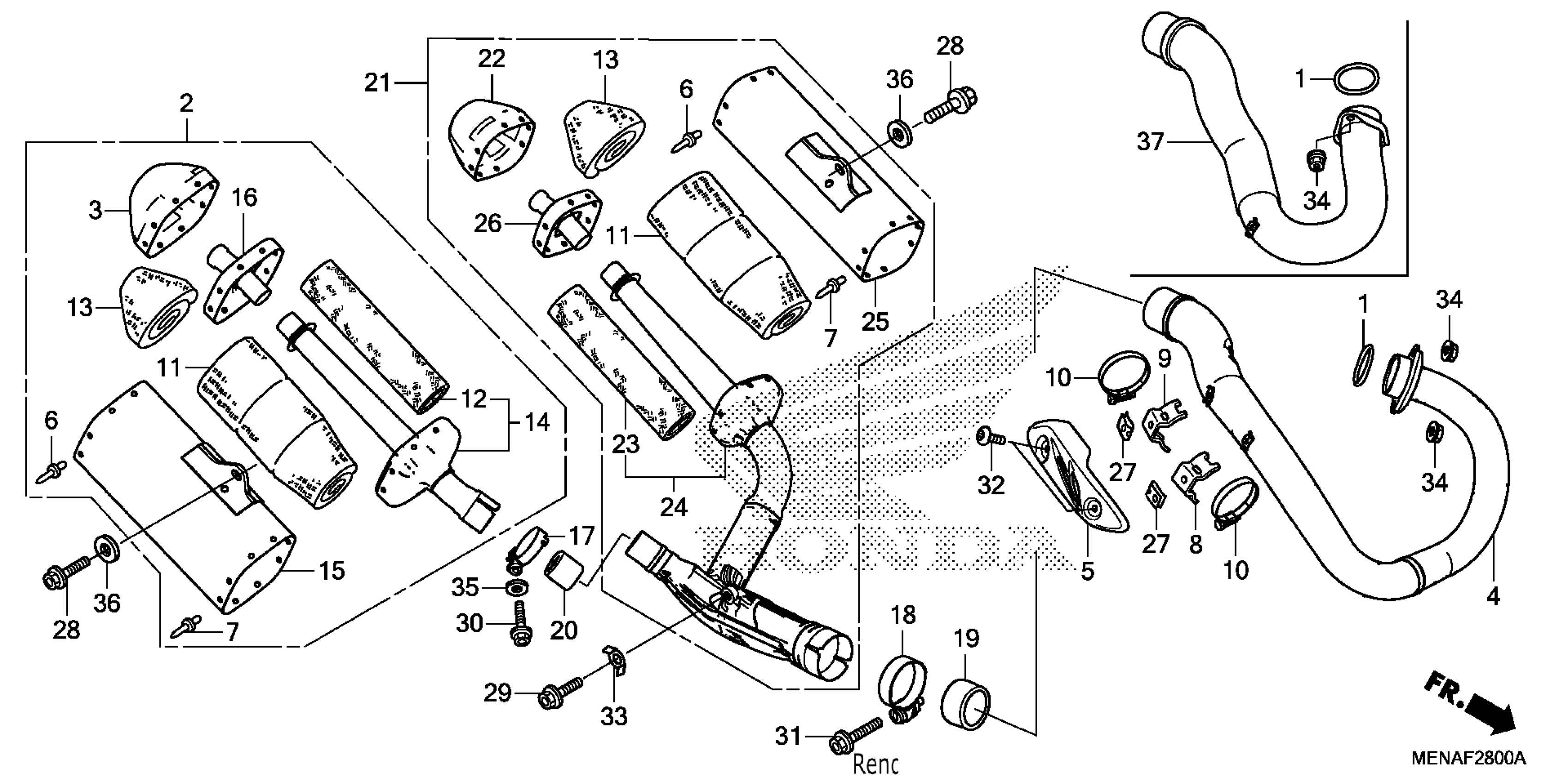

Honda CRF450RAC (14) CRF450R, JPN, VIN# JH2PE053-EK300001 TO JH2PE053-EK399999 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MEB-670

$4.92

2

MUFFLER, R. (COO)

18310-MEN-309

$761.97

3

COVER, R. END (COO)

18318-MEN-307

$156.92

4

PIPE, EX.

18320-MEN-A70

$326.21

5

PROTECTOR, EX. PIPE

18323-MEN-A30

$82.07

6

RIVET, BLIND (4.8)

18324-MEB-670

$1.49

7

RIVET, BLIND (3.2)

18326-KRN-A00

$1.49

8

STAY, FR. EX. PIPE PROTECTOR

18327-MEN-A70

$4.62

9

STAY, RR. EX. PIPE PROTECTOR

18328-MEN-A30

$5.90

10

BAND, EX. PROTECTOR

18329-MEN-A30

$14.79

11

PACK, GLASS WOOL CENTER

18334-MEN-A70

$140.44

12

WOOL, R. SUS

18336-MEN-A80

$93.77

13

WOOL B, GLASS

18337-KRN-850

$16.67

14

MUFFLER, R. FR.

18360-MEN-A80

$171.44

15

BODY, R. MUFFLER

18361-MEN-A80

$248.30

16

SEPARATOR (R)

18362-MEN-A70

$46.00

17

BAND, R. EX. PIPE

18373-ML4-003

$32.23

18

BAND, MUFFLER JOINT

18375-MEN-A30

$21.10

19

GASKET, MUFFLER

18391-ML0-003

$29.28

20

GASKET, MUFFLER

18391-ML8-000

$9.49

21

MUFFLER, L. (COO)

18410-MEN-309

$1,003.59

22

COVER, L. END (COO)

18418-MEN-307

$163.97

23

WOOL, L. SUS

18436-MEN-A80

$95.64

24

MUFFLER, L. FR.

18460-MEN-A80

$400.70

25

BODY, L. MUFFLER

18461-MEN-A80

$253.33

26

SEPARATOR (L)

18462-MEN-A70

$46.00

27

NUT, SPRING (6MM)

19508-KA3-710

$5.72

28

BOLT, FLANGE (8X25)

95701-08025-00

$1.79

29

BOLT (8X20)

90109-MEN-A30

$2.92

30

BOLT, FLANGE (8X32)

90124-MEB-770

$2.03

31

BOLT (8X30)

90124-MEN-A00

$2.62

32

BOLT, SPECIAL (6MM)

90170-MEB-670

$1.80

33

WASHER, FR. MUFFLER STAY

90502-MEN-A70

$3.74

34

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

35

WASHER, PLAIN (8MM)

94102-08800

$1.49

36

WASHER, PLAIN (8MM)

94103-08000

$1.49
