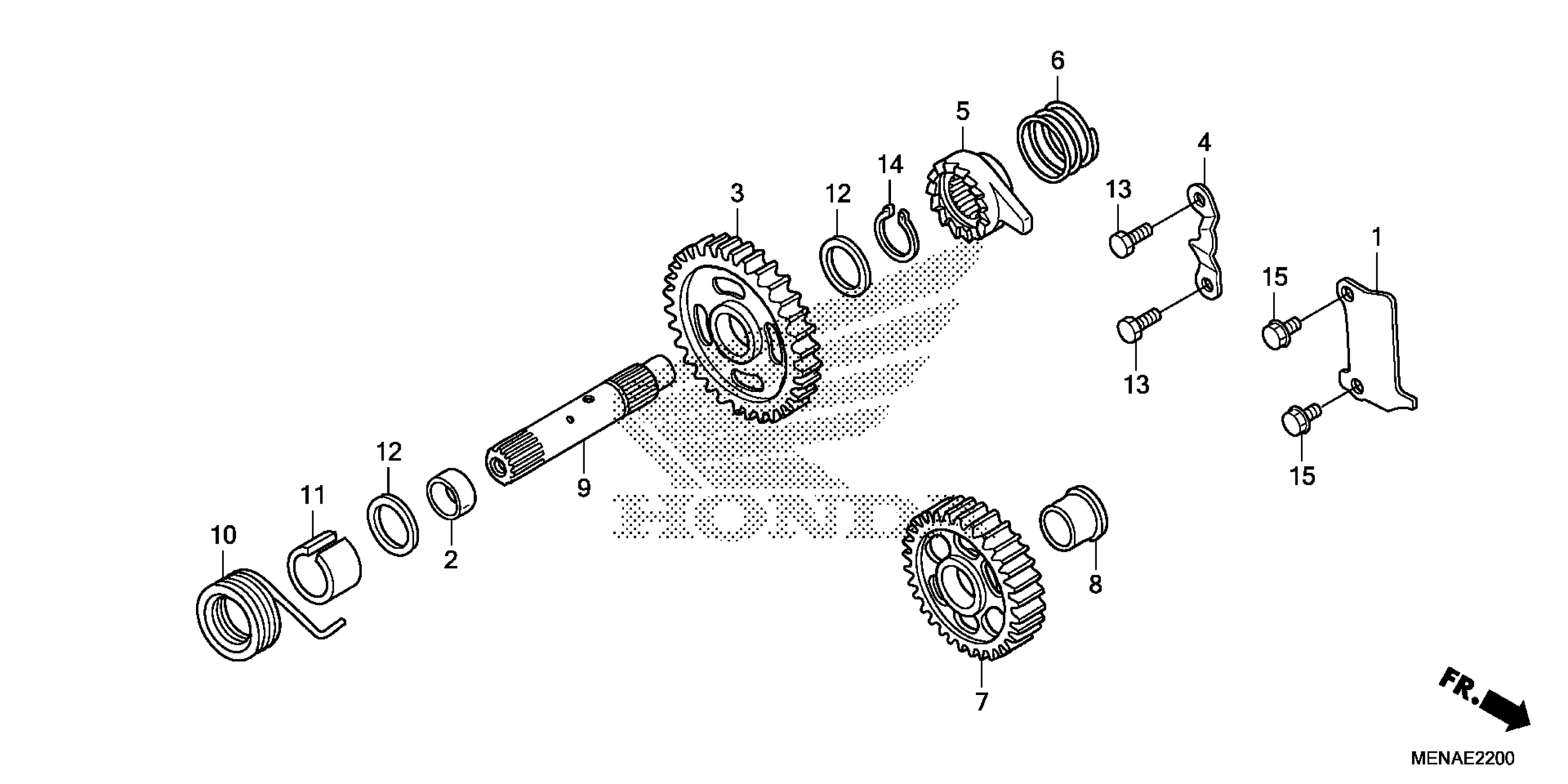

Honda CRF450RAC (14) CRF450R, JPN, VIN# JH2PE053-EK300001 TO JH2PE053-EK399999 KICK STARTER SPINDLE Diagram

PLATE, OIL GUIDE

15201-MEN-A70

$6.74

COLLAR (20X22X10)

23472-KY4-900

$9.72

PINION, KICK STARTER (34T)

28211-MEN-A70

$117.30

PLATE, KICK STOPPER

28215-MEN-A30

$7.72

RATCHET, KICK STARTER

28221-MEB-770

$45.93

SPRING, KICK STARTER RATCHET

28223-KA4-740

$3.92

GEAR, KICK STARTER IDLE (29T)

28231-MEN-A70

$97.74

COLLAR, KICK STARTER IDLE GEAR

28232-MEN-A70

$13.70

SPINDLE, KICK STARTER

28251-MEN-A70

$106.82

SPRING, KICK RETURN

28261-MEN-A30

$10.98

COLLAR, KICK SPRING

28282-MEB-670

$6.22

WASHER, THRUST (27X20X1.0)

90554-728-940

$6.07

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

CIRCLIP (OUTER) (19MM)

94510-19000

$1.49

BOLT, FLANGE (6X12)

96300-06012-00

$1.49
