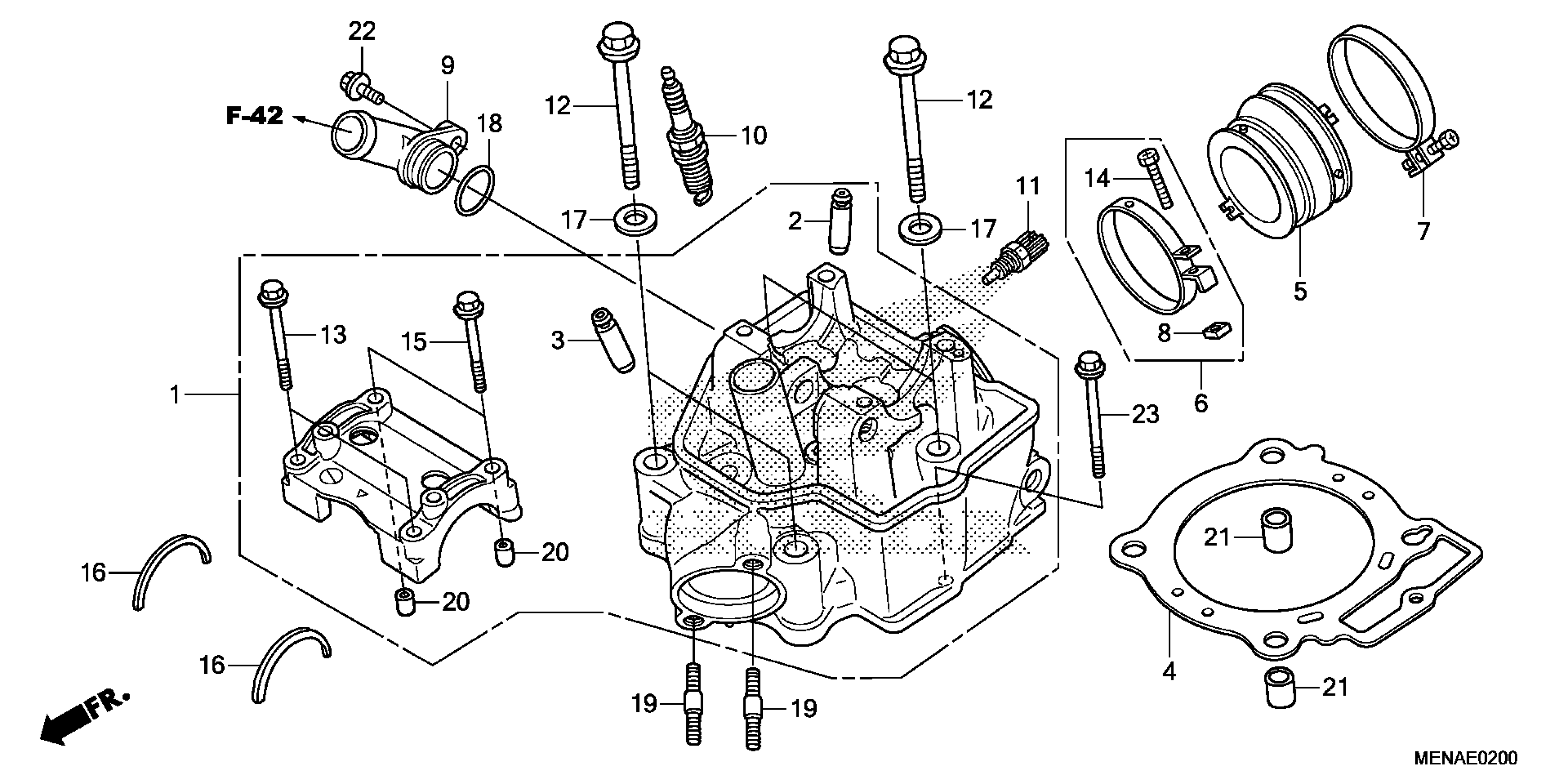

Honda CRF450RAC (14) CRF450R, JPN, VIN# JH2PE053-EK300001 TO JH2PE053-EK399999 CYLINDER HEAD (1) Diagram

CYLINDER HEAD ASSY.

12010-MEN-A80

$736.25

GUIDE, VALVE (OVER SIZE)

12204-MEN-P00

$16.44

GUIDE, EX. VALVE (OVER SIZE)

12205-MEB-P00

$15.97

GASKET, CYLINDER HEAD

12251-MEN-A31

$41.97

INSULATOR, THROTTLE BODY

16211-MEN-A50

$15.84

BAND A, INSULATOR

16217-MCJ-000

$9.07

BAND, INSULATOR

16218-MEN-A50

$7.10

NUT, SQUARE (5MM) (GQ51B C)

16222-MV4-300

$2.15

JOINT, WATER

19501-MEN-A30

$20.70

SPARK PLUG (SILMAR9A9S) (NGK)

31909-MEN-A31

$18.81

SPARK PLUG (SILMAR10A9S) (NGK) | (Optional).

31910-MEN-A31

$18.81

SENSOR ASSY., WATER TEMPERATURE

37870-HN8-A61

$36.69

BOLT, FLANGE (10X150)

90001-MEN-A30

$8.80

BOLT, FLANGE (6X55)

90003-MEN-A30

$2.87

BOLT, RECESSED (5X28)

90005-MCJ-000

$1.51

BOLT, FLANGE (6X45)

90005-MEN-A30

$2.00

WASHER, CAMSHAFT THRUST

90446-KRN-670

$2.64

WASHER, PLAIN (10MM)

90453-MK4-600

$3.81

O-RING (19X3) (NOK)

91312-KE7-003

$2.61

BOLT, STUD (8X22)

92900-08022-0B

$2.13

PIN A, DOWEL (8X10)

94301-08100

$2.25

PIN A, DOWEL (12X20)

94301-12200

$2.29

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X90)

96001-06090-00

$1.95
