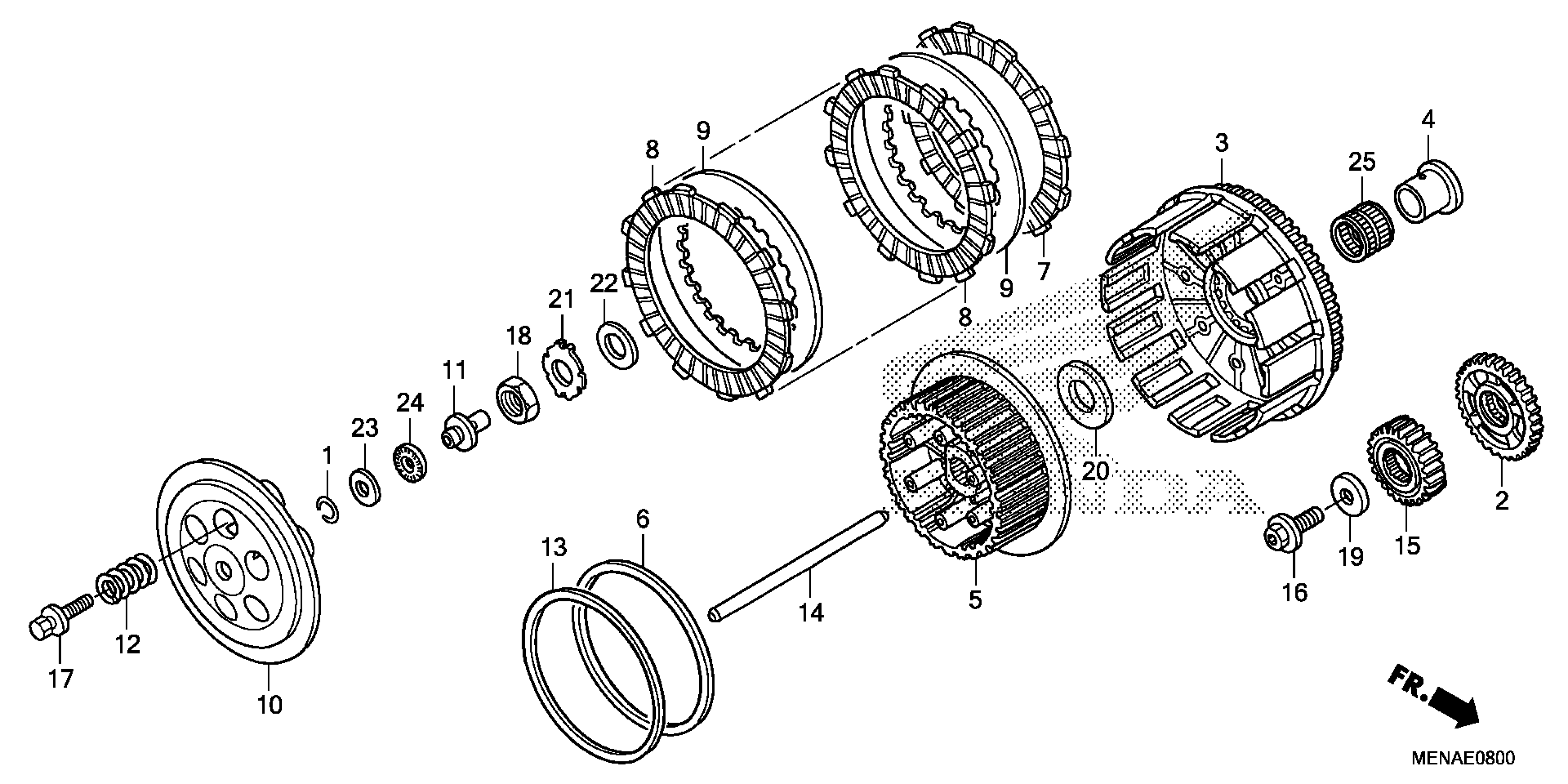

Honda CRF450RAC (14) CRF450R, JPN, VIN# JH2PE053-EK300001 TO JH2PE053-EK399999 CLUTCH Diagram

#

Description
Price

NI

CLUTCH KIT (INCLUDE-FRICTION DISC,PLATES, SPRINGS, AND O-RING/GASKET) | (Optional).

06001-MEN-006

$280.87

1

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

2

GEAR, BALANCER DRIVE (34T)

13415-MEN-A70

$90.51

3

CLUTCH OUTER

22100-MEN-A70

$422.15

4

COLLAR, CLUTCH (OUTER)

22106-KS7-000

$26.35

5

CENTER, CLUTCH

22120-MEN-A70

$134.79

6

SEAT, JUDDER SPRING

22125-MBN-670

$8.11

7

DISK, CLUTCH FRICTION

22201-MBN-670

$20.06

8

DISK, CLUTCH FRICTION

22201-MEN-A10

$15.27

9

PLATE B, CLUTCH

22321-KZ3-690

$16.11

10

PLATE, CLUTCH PRESSURE

22351-KZ3-860

$78.39

11

PIECE, CLUTCH LIFTER

22352-KRN-670

$32.59

12

SPRING, CLUTCH

22401-MEN-A80

$4.75

13

SPRING, JUDDER

22402-MBN-670

$21.34

14

ROD, CLUTCH LIFTER

22850-MEN-A70

$26.87

15

GEAR, PRIMARY DRIVE (23T)

23121-MEN-A30

$83.82

16

BOLT, SPECIAL (12X28)

90013-MEB-670

$5.98

17

BOLT-WASHER (6X35)

90024-MEN-A70

$2.43

18

NUT (18MM)

90235-MEN-A30

$5.14

19

WASHER, PLAIN (12MM)

90402-KW6-960

$5.55

20

WASHER, THRUST (23X48)

90421-HA2-010

$10.91

21

WASHER, LOCK (18MM)

90461-KZ3-J10

$6.23

22

WASHER (18X32X2)

90501-ML3-910

$4.37

23

WASHER (12MM)

90608-072-000

$3.80

24

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

25

BEARING, NEEDLE (28X32X27.2) (THOMPSON)

91021-ML3-003

$17.87
